R60MN41505040K

Active

KEMET

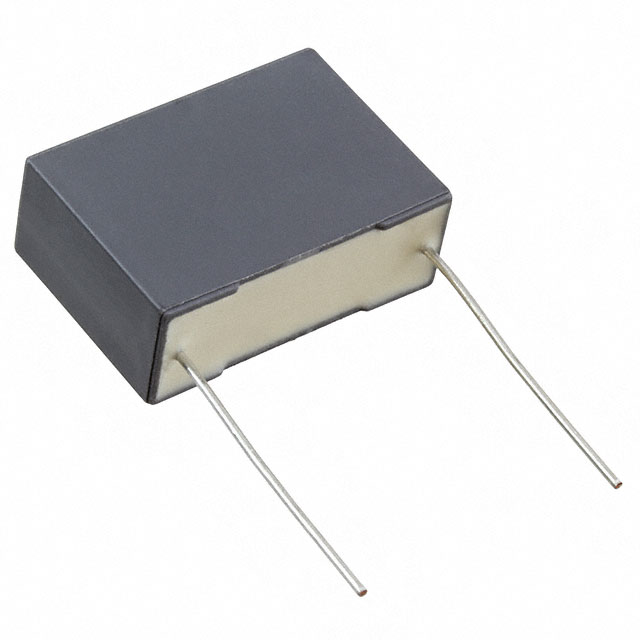

CAP FILM 1.5UF 10% 400VDC RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsProduct Change Notice EN R60MN41505040K +1

R60MN41505040K

Active

KEMET

CAP FILM 1.5UF 10% 400VDC RADIAL

Deep-Dive with AI

DocumentsProduct Change Notice EN R60MN41505040K +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R60MN41505040K

Applications	Automotive
Capacitance	1.5 µF
Dielectric Material	Polyethylene Terephthalate (PET), Metallized, Polyester
Height - Seated (Max) [Max] [z]	18.6 mm
Height - Seated (Max) [Max] [z]	0.732 in
Lead Spacing	22.5 mm
Lead Spacing	0.886 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Ratings	AEC-Q200
Size / Dimension [x]	1.043 in
Size / Dimension [x]	26.5 mm
Size / Dimension [y]	0.394 in
Size / Dimension [y]	10 mm
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	200 V
Voltage Rating - DC	400 V

R60MN Series

Part	Dielectric Material	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Termination	Ratings	Voltage Rating - AC	Capacitance	Package / Case	Voltage Rating - DC	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Lead Spacing	Lead Spacing	Mounting Type	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET R60MN3220AA30K	Metallized Polyester Polyethylene Terephthalate (PET)	Automotive	105 ░C	-55 °C	0.594 in	15.1 mm	PC Pins	AEC-Q200	200 V	0.22 µF	Radial	400 V	0.236 in	6 mm	1.043 in	26.5 mm	22.5 mm	0.886 in	Through Hole	10 %
KEMET R60MN32204030K	Metallized Polyester Polyethylene Terephthalate (PET)	Automotive	105 ░C	-55 °C	0.594 in	15.1 mm	PC Pins	AEC-Q200	200 V	0.22 µF	Radial	400 V	0.236 in	6 mm	1.043 in	26.5 mm	22.5 mm	0.886 in	Through Hole	10 %
KEMET R60MN3470DQ30K	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	Automotive	105 ░C	-55 °C	0.594 in	15.1 mm	PC Pins	AEC-Q200	200 V	0.47 µF	Radial	400 V	0.236 in	6 mm	1.043 in	26.5 mm	22.5 mm	0.886 in	Through Hole	10 %
KEMET R60MN3470AA30J	Polyester Metallized	Automotive	105 ░C	-55 °C	0.594 in	15.1 mm	PC Pins	AEC-Q200	200 V	0.47 µF	Radial	400 V	0.236 in	6 mm	1.043 in	26.5 mm	22.5 mm	0.886 in	Through Hole	5 %
KEMET R60MN41005040K	Metallized Polyester Polyethylene Terephthalate (PET)	Automotive	105 ░C	-55 °C	0.673 in	17.1 mm	PC Pins	AEC-Q200	200 V	1 µF	Radial	400 V	0.335 in	8.5 mm	1.043 in	26.5 mm	22.5 mm	0.886 in	Through Hole	10 %
KEMET R60MN41505040K	Metallized Polyester Polyethylene Terephthalate (PET)	Automotive	105 ░C	-55 °C			PC Pins	AEC-Q200	200 V	1.5 µF	Radial	400 V	0.394 in	10 mm	1.043 in	26.5 mm	22.5 mm	0.886 in	Through Hole	10 %	18.6 mm	0.732 in
KEMET R60MN4100JE40J	Metallized Polyester Polyethylene Terephthalate (PET)	Automotive	105 ░C	-55 °C	0.673 in	17.1 mm	PC Pins	AEC-Q200	200 V	1 µF	Radial	400 V	0.335 in	8.5 mm	1.043 in	26.5 mm	22.5 mm	0.886 in	Through Hole	5 %
KEMET R60MN34705030J	Metallized Polyester Polyethylene Terephthalate (PET)	Automotive	105 ░C	-55 °C	0.594 in	15.1 mm	PC Pins	AEC-Q200	200 V	0.47 µF	Radial	400 V	0.236 in	6 mm	1.043 in	26.5 mm	22.5 mm	0.886 in	Through Hole	5 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	900	$ 0.82
Newark	Each	500	$ 0.97
		1000	$ 0.83
		2500	$ 0.77

Description

General part information

R60MN Series

1.5 µF Film Capacitor 200V 400V Polyester, Polyethylene Terephthalate (PET), Metallized Radial
