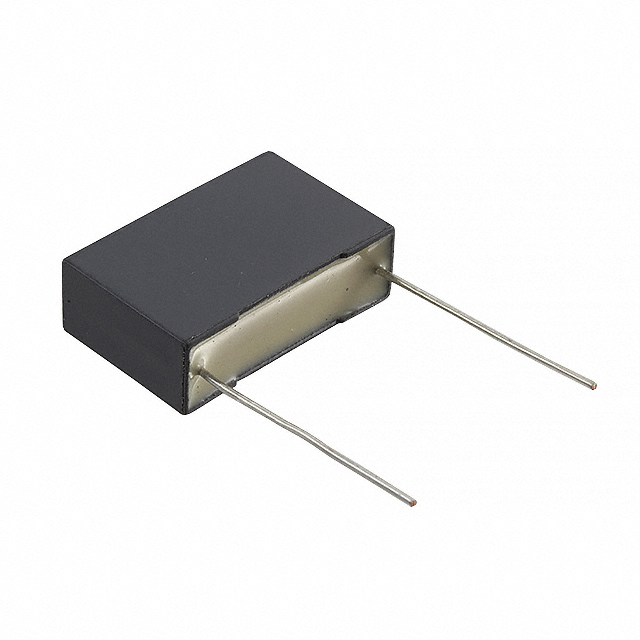

R60MN32204030K

Active

KEMET

CAP FILM 0.22UF 10% 400VDC RAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet R60MN32204030K Spec +1

R60MN32204030K

Active

KEMET

CAP FILM 0.22UF 10% 400VDC RAD

Deep-Dive with AI

DocumentsDatasheet R60MN32204030K Spec +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R60MN32204030K

Applications	Automotive
Capacitance	0.22 µF
Dielectric Material	Polyethylene Terephthalate (PET), Metallized, Polyester
Height - Seated (Max) [Max]	0.594 in
Height - Seated (Max) [Max]	15.1 mm
Lead Spacing	22.5 mm
Lead Spacing	0.886 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Ratings	AEC-Q200
Size / Dimension [x]	1.043 in
Size / Dimension [x]	26.5 mm
Size / Dimension [y]	0.236 in
Size / Dimension [y]	6 mm
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	200 V
Voltage Rating - DC	400 V

R60MN Series

Part	Dielectric Material	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Termination	Ratings	Voltage Rating - AC	Capacitance	Package / Case	Voltage Rating - DC	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Lead Spacing	Lead Spacing	Mounting Type	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET R60MN3220AA30K	Metallized Polyester Polyethylene Terephthalate (PET)	Automotive	105 ░C	-55 °C	0.594 in	15.1 mm	PC Pins	AEC-Q200	200 V	0.22 µF	Radial	400 V	0.236 in	6 mm	1.043 in	26.5 mm	22.5 mm	0.886 in	Through Hole	10 %
KEMET R60MN32204030K	Metallized Polyester Polyethylene Terephthalate (PET)	Automotive	105 ░C	-55 °C	0.594 in	15.1 mm	PC Pins	AEC-Q200	200 V	0.22 µF	Radial	400 V	0.236 in	6 mm	1.043 in	26.5 mm	22.5 mm	0.886 in	Through Hole	10 %
KEMET R60MN3470DQ30K	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	Automotive	105 ░C	-55 °C	0.594 in	15.1 mm	PC Pins	AEC-Q200	200 V	0.47 µF	Radial	400 V	0.236 in	6 mm	1.043 in	26.5 mm	22.5 mm	0.886 in	Through Hole	10 %
KEMET R60MN3470AA30J	Polyester Metallized	Automotive	105 ░C	-55 °C	0.594 in	15.1 mm	PC Pins	AEC-Q200	200 V	0.47 µF	Radial	400 V	0.236 in	6 mm	1.043 in	26.5 mm	22.5 mm	0.886 in	Through Hole	5 %
KEMET R60MN41005040K	Metallized Polyester Polyethylene Terephthalate (PET)	Automotive	105 ░C	-55 °C	0.673 in	17.1 mm	PC Pins	AEC-Q200	200 V	1 µF	Radial	400 V	0.335 in	8.5 mm	1.043 in	26.5 mm	22.5 mm	0.886 in	Through Hole	10 %
KEMET R60MN41505040K	Metallized Polyester Polyethylene Terephthalate (PET)	Automotive	105 ░C	-55 °C			PC Pins	AEC-Q200	200 V	1.5 µF	Radial	400 V	0.394 in	10 mm	1.043 in	26.5 mm	22.5 mm	0.886 in	Through Hole	10 %	18.6 mm	0.732 in
KEMET R60MN4100JE40J	Metallized Polyester Polyethylene Terephthalate (PET)	Automotive	105 ░C	-55 °C	0.673 in	17.1 mm	PC Pins	AEC-Q200	200 V	1 µF	Radial	400 V	0.335 in	8.5 mm	1.043 in	26.5 mm	22.5 mm	0.886 in	Through Hole	5 %
KEMET R60MN34705030J	Metallized Polyester Polyethylene Terephthalate (PET)	Automotive	105 ░C	-55 °C	0.594 in	15.1 mm	PC Pins	AEC-Q200	200 V	0.47 µF	Radial	400 V	0.236 in	6 mm	1.043 in	26.5 mm	22.5 mm	0.886 in	Through Hole	5 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.97
		10	$ 0.72
		50	$ 0.66
		100	$ 0.54
		500	$ 0.43
		1000	$ 0.38
		2500	$ 0.36
		5000	$ 0.34
Newark	Each	1000	$ 0.38
		2500	$ 0.34

Description

General part information

R60MN Series

0.22 µF Film Capacitor 200V 400V Polyester, Polyethylene Terephthalate (PET), Metallized Radial

Documents

Technical documentation and resources

Datasheet

R60MN32204030K Spec

Datasheet

Product Change Notice EN

Datasheet
