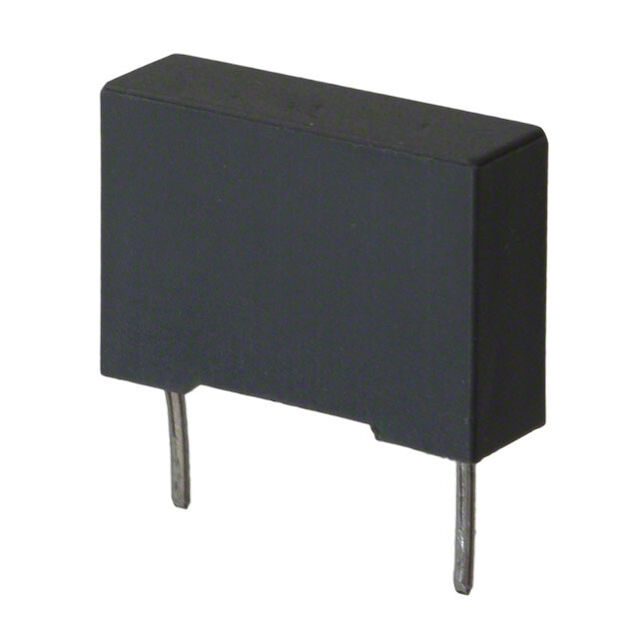

R60MN34705030J - R60 SERIES

R60MN34705030J

Active
KEMET

FILM CAPACITOR, AEC-Q200 R60 SERIES, 0.47 UF, 5%, PET (POLYESTER), 400 V ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet ENProduct Change Notice EN+3
R60MN34705030J - R60 SERIES

R60MN34705030J

Active
KEMET

FILM CAPACITOR, AEC-Q200 R60 SERIES, 0.47 UF, 5%, PET (POLYESTER), 400 V ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsTechnical Data Sheet ENProduct Change Notice EN+3

Technical Specifications

Parameters and characteristics for this part

SpecificationR60MN34705030J
ApplicationsAutomotive
Capacitance0.47 µF
Dielectric MaterialPolyethylene Terephthalate (PET), Metallized, Polyester
Height - Seated (Max) [Max]0.594 in
Height - Seated (Max) [Max]15.1 mm
Lead Spacing22.5 mm
Lead Spacing0.886 in
Mounting TypeThrough Hole
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 °C
Package / CaseRadial
RatingsAEC-Q200
Size / Dimension [x]1.043 in
Size / Dimension [x]26.5 mm
Size / Dimension [y]0.236 in
Size / Dimension [y]6 mm
TerminationPC Pins
Tolerance5 %
Voltage Rating - AC200 V
Voltage Rating - DC400 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 1.27
10$ 0.88
50$ 0.70
100$ 0.65
500$ 0.54
1000$ 0.50
2500$ 0.46
5000$ 0.44
NewarkEach 10$ 0.69
25$ 0.67
50$ 0.65
100$ 0.63
500$ 0.51
1000$ 0.47
2500$ 0.44

Description

General part information

R60MN Series

0.47 µF Film Capacitor 200V 400V Polyester, Polyethylene Terephthalate (PET), Metallized Radial
