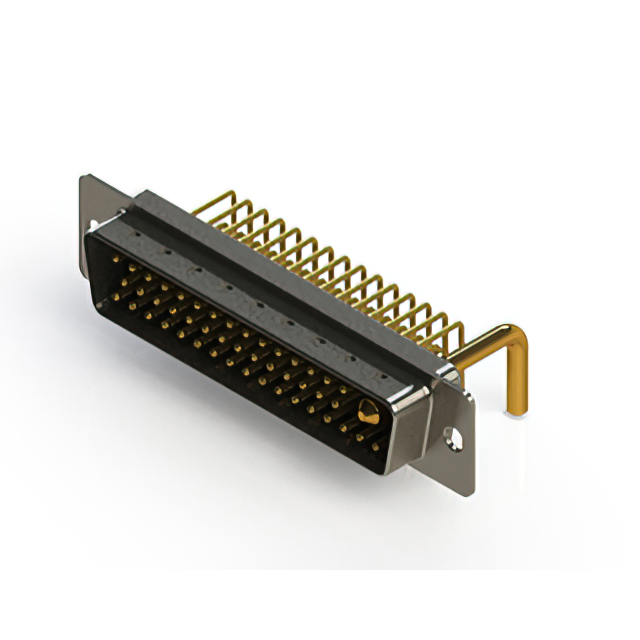

COMBINATION LAYOUT D SUB CONNECTOR, 629C SERIES, DD-47W1, PLUG, 47 CONTACTS, 46 SIGNAL, 1 POWER
629-47W1250-2T1
ActiveEDAC Inc.
COMBINATION LAYOUT D SUB CONNECTOR, 629C SERIES, DD-47W1, PLUG, 47 CONTACTS, 46 SIGNAL, 1 POWER
Description
General part information
629-47W Series
47 (46 + 1 Power) Position D-Sub, Combo Plug, Male Pins Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | 629-47W1250-2T1 |
|---|---|
| Backset Spacing | 0.37 in |
| Color | Black |
| Connector Layout | DD, D |
| Connector Style | Combo, D-Sub |
| Connector Type | Male Pins, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 0 |
| Contact Finish Thickness | Flash |
| Contact Finish Thickness (string set options) | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal, Power |
| Current Rating Options | 5A, 20A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Shielded, Grounding Indents |
| Finish | Tin Plated |
| Flange Feature | Shell (Unthreaded), Housing |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions (Normal) | 46 |
| Number of Positions (Power) | 1 |
| Number of Positions (Total) | 47 |
| Number of Rows | 3 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Part Code | 47W1 |
| Shell Material | Steel |
| Shell Size | 5 |
| Termination | Solder |
| Voltage Rating | 125 V |
