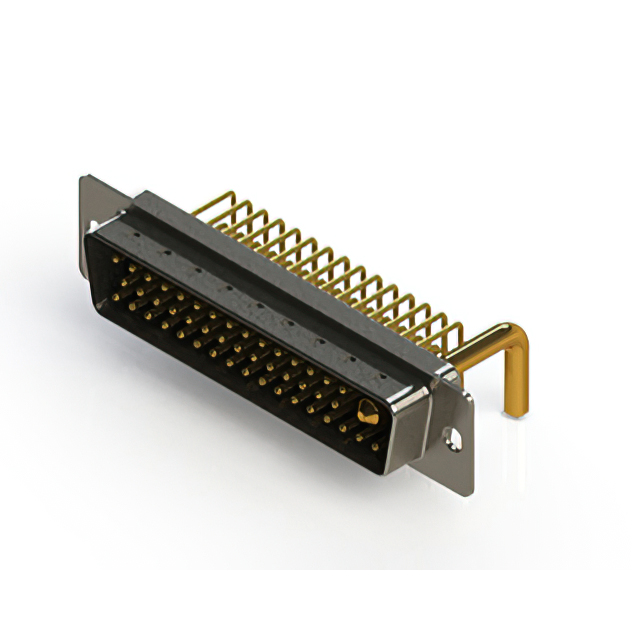

629-47W1650-3N1

Active

EDAC Inc.

CONN D-SUB PLUG 47POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

629-47W1650-3N1

Active

EDAC Inc.

CONN D-SUB PLUG 47POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629-47W1650-3N1

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	30 A, 5 A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Shielded
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	47
Number of Positions [custom]	1
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	5 (DD, D), 47W1
Termination	Solder
Voltage Rating	125 VDC

629-47W Series

...

Part	Contact Finish Thickness	Shell Size, Connector Layout	Material Flammability Rating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material, Finish	Features	Number of Positions [custom]	Number of Positions	Number of Rows	Backset Spacing	Backset Spacing	Contact Type	Flange Feature	Mounting Type	Voltage Rating	Connector Style	Contact Finish	Termination	Dielectric Material	Contact Material	Connector Type	Color	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)
EDAC Inc. 629-47W1240-2NB	Flash	47W1 5 (DD D)	UL94 V-0	5 A 20 A	-55 °C	125 °C	Nickel Plated Steel	Board Lock Grounding Indents Mounting Brackets	1	47	3	9.4 mm	0.37 in	Signal and Power	Housing/Shell (M3)	Through Hole Right Angle	125 VDC	Combo D-Sub	Gold	Solder	Polyester Thermoplastic	Copper Alloy	Male Pins Plug	Black
EDAC Inc. 629-47W1650-3N4		47W1 5 (DD D)	UL94 V-0	5 A 30 A	-55 °C	125 °C	Nickel Plated Steel	Grounding Indents Mounting Brackets	1	47	3	9.4 mm	0.37 in	Signal and Power	Housing/Shell (4-40)	Through Hole Right Angle	125 VDC	Combo D-Sub	Gold	Solder	Polyester Thermoplastic	Copper Alloy	Male Pins Plug	Black	0.76 Ám	30 Áin
EDAC Inc. 629-47W1250-2T1	Flash	47W1 5 (DD D)	UL94 V-0	5 A 20 A	-55 °C	125 °C		Grounding Indents Shielded	1	47	3	9.4 mm	0.37 in	Signal and Power	Housing/Shell (Unthreaded)	Through Hole Right Angle	125 VDC	Combo D-Sub	Gold	Solder	Polyester Thermoplastic	Copper Alloy	Male Pins Plug	Black
EDAC Inc. 629-47W1240-3TA	Flash	47W1 5 (DD D)	UL94 V-0	5 A 30 A	-55 °C	125 °C		Grounding Indents	1	47	3	9.4 mm	0.37 in	Signal and Power	Board Side (M3)	Through Hole Right Angle	125 VDC	Combo D-Sub	Gold	Solder	Polyester Thermoplastic	Copper Alloy	Male Pins Plug	Black
EDAC Inc. 629-47W1650-3N1		47W1 5 (DD D)	UL94 V-0	5 A 30 A	-55 °C	125 °C	Nickel Plated Steel	Grounding Indents Shielded	1	47	3	9.4 mm	0.37 in	Signal and Power	Housing/Shell (Unthreaded)	Through Hole Right Angle	125 VDC	Combo D-Sub	Gold	Solder	Polyester Thermoplastic	Copper Alloy	Male Pins Plug	Black	0.76 Ám	30 Áin
EDAC Inc. 629-47W1640-5N5		47W1 5 (DD D)	UL94 V-0		-55 °C	125 °C	Nickel Plated Steel	Board Lock Grounding Indents Mounting Brackets		47	3	9.4 mm	0.37 in	Coax Signal	4-40	Through Hole Right Angle	125 VDC	Combo D-Sub	Gold	Solder	Polyester Thermoplastic	Copper Alloy	Male Pins Plug	Black	0.76 Ám	30 Áin
EDAC Inc. 629-47W1650-3NE		47W1 5 (DD D)	UL94 V-0	5 A 30 A	-55 °C	125 °C	Nickel Plated Steel	Grounding Indents Mounting Brackets	1	47	3	9.4 mm	0.37 in	Signal and Power	M3	Through Hole Right Angle	125 VDC	Combo D-Sub	Gold	Solder	Polyester Thermoplastic	Copper Alloy	Male Pins Plug	Black	0.76 Ám	30 Áin
EDAC Inc. 629-47W1650-2TB		47W1 5 (DD D)	UL94 V-0	5 A 20 A	-55 °C	125 °C		Board Lock Grounding Indents Mounting Brackets	1	47	3	9.4 mm	0.37 in	Signal and Power	Housing/Shell (M3)	Through Hole Right Angle	125 VDC	Combo D-Sub	Gold	Solder	Polyester Thermoplastic	Copper Alloy	Male Pins Plug	Black	0.76 Ám	30 Áin
EDAC Inc. 629-47W1240-2N4	Flash	47W1 5 (DD D)	UL94 V-0	5 A 20 A	-55 °C	125 °C	Nickel Plated Steel	Grounding Indents Mounting Brackets	1	47	3	9.4 mm	0.37 in	Signal and Power	Housing/Shell (4-40)	Through Hole Right Angle	125 VDC	Combo D-Sub	Gold	Solder	Polyester Thermoplastic	Copper Alloy	Male Pins Plug	Black
EDAC Inc. 629-47W1650-1NA		47W1 5 (DD D)	UL94 V-0		-55 °C	125 °C	Nickel Plated Steel	Grounding Indents	1	47	3	9.4 mm	0.37 in	Signal and Power	Board Side (M3)	Through Hole Right Angle	125 VDC	Combo D-Sub	Gold	Solder	Polyester Thermoplastic	Copper Alloy	Male Pins Plug	Black	0.76 Ám	30 Áin	10A 5A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	250	$ 35.02

Description

General part information

629-47W Series

47 (46 + 1 Power) Position D-Sub, Combo Plug, Male Pins Connector
