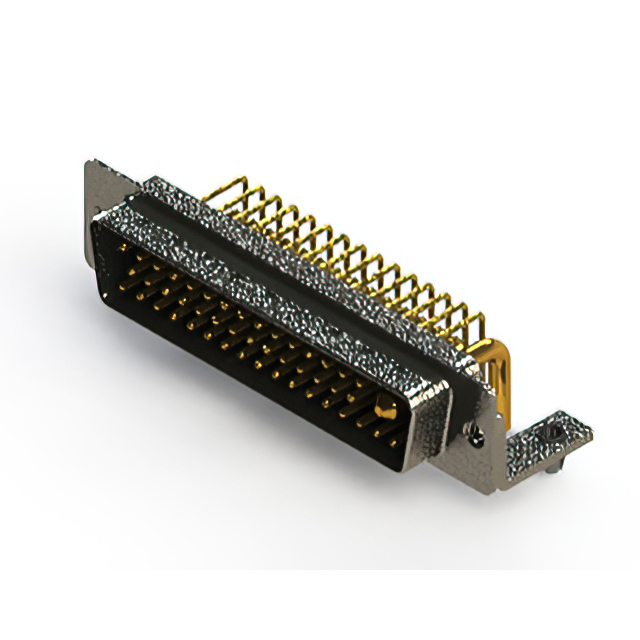

629-47W1240-2NB
ActiveEDAC Inc.
47P RIGHT-ANGLE 3 PUSH-PULL D-SUB / VGA CONNECTORS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
629-47W1240-2NB
ActiveEDAC Inc.
47P RIGHT-ANGLE 3 PUSH-PULL D-SUB / VGA CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 629-47W1240-2NB |
|---|---|
| Backset Spacing | 9.4 mm |
| Backset Spacing | 0.37 in |
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 5 A, 20 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Grounding Indents, Mounting Brackets, Board Lock |
| Flange Feature | Housing/Shell (M3) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 47 |
| Number of Positions [custom] | 1 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 5 (DD, D), 47W1 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
629-47W Series
...
| Part | Contact Finish Thickness | Shell Size, Connector Layout | Material Flammability Rating | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material, Finish | Features | Number of Positions [custom] | Number of Positions | Number of Rows | Backset Spacing | Backset Spacing | Contact Type | Flange Feature | Mounting Type | Voltage Rating | Connector Style | Contact Finish | Termination | Dielectric Material | Contact Material | Connector Type | Color | Contact Finish Thickness | Contact Finish Thickness | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Flash | 47W1 5 (DD D) | UL94 V-0 | 5 A 20 A | -55 °C | 125 °C | Nickel Plated Steel | Board Lock Grounding Indents Mounting Brackets | 1 | 47 | 3 | 9.4 mm | 0.37 in | Signal and Power | Housing/Shell (M3) | Through Hole Right Angle | 125 VDC | Combo D-Sub | Gold | Solder | Polyester Thermoplastic | Copper Alloy | Male Pins Plug | Black | |||
EDAC Inc. | 47W1 5 (DD D) | UL94 V-0 | 5 A 30 A | -55 °C | 125 °C | Nickel Plated Steel | Grounding Indents Mounting Brackets | 1 | 47 | 3 | 9.4 mm | 0.37 in | Signal and Power | Housing/Shell (4-40) | Through Hole Right Angle | 125 VDC | Combo D-Sub | Gold | Solder | Polyester Thermoplastic | Copper Alloy | Male Pins Plug | Black | 0.76 Ám | 30 Áin | ||
EDAC Inc. | Flash | 47W1 5 (DD D) | UL94 V-0 | 5 A 20 A | -55 °C | 125 °C | Grounding Indents Shielded | 1 | 47 | 3 | 9.4 mm | 0.37 in | Signal and Power | Housing/Shell (Unthreaded) | Through Hole Right Angle | 125 VDC | Combo D-Sub | Gold | Solder | Polyester Thermoplastic | Copper Alloy | Male Pins Plug | Black | ||||
EDAC Inc. | Flash | 47W1 5 (DD D) | UL94 V-0 | 5 A 30 A | -55 °C | 125 °C | Grounding Indents | 1 | 47 | 3 | 9.4 mm | 0.37 in | Signal and Power | Board Side (M3) | Through Hole Right Angle | 125 VDC | Combo D-Sub | Gold | Solder | Polyester Thermoplastic | Copper Alloy | Male Pins Plug | Black | ||||
EDAC Inc. | 47W1 5 (DD D) | UL94 V-0 | 5 A 30 A | -55 °C | 125 °C | Nickel Plated Steel | Grounding Indents Shielded | 1 | 47 | 3 | 9.4 mm | 0.37 in | Signal and Power | Housing/Shell (Unthreaded) | Through Hole Right Angle | 125 VDC | Combo D-Sub | Gold | Solder | Polyester Thermoplastic | Copper Alloy | Male Pins Plug | Black | 0.76 Ám | 30 Áin | ||
EDAC Inc. | 47W1 5 (DD D) | UL94 V-0 | -55 °C | 125 °C | Nickel Plated Steel | Board Lock Grounding Indents Mounting Brackets | 47 | 3 | 9.4 mm | 0.37 in | Coax Signal | 4-40 | Through Hole Right Angle | 125 VDC | Combo D-Sub | Gold | Solder | Polyester Thermoplastic | Copper Alloy | Male Pins Plug | Black | 0.76 Ám | 30 Áin | ||||
EDAC Inc. | 47W1 5 (DD D) | UL94 V-0 | 5 A 30 A | -55 °C | 125 °C | Nickel Plated Steel | Grounding Indents Mounting Brackets | 1 | 47 | 3 | 9.4 mm | 0.37 in | Signal and Power | M3 | Through Hole Right Angle | 125 VDC | Combo D-Sub | Gold | Solder | Polyester Thermoplastic | Copper Alloy | Male Pins Plug | Black | 0.76 Ám | 30 Áin | ||
EDAC Inc. | 47W1 5 (DD D) | UL94 V-0 | 5 A 20 A | -55 °C | 125 °C | Board Lock Grounding Indents Mounting Brackets | 1 | 47 | 3 | 9.4 mm | 0.37 in | Signal and Power | Housing/Shell (M3) | Through Hole Right Angle | 125 VDC | Combo D-Sub | Gold | Solder | Polyester Thermoplastic | Copper Alloy | Male Pins Plug | Black | 0.76 Ám | 30 Áin | |||
EDAC Inc. | Flash | 47W1 5 (DD D) | UL94 V-0 | 5 A 20 A | -55 °C | 125 °C | Nickel Plated Steel | Grounding Indents Mounting Brackets | 1 | 47 | 3 | 9.4 mm | 0.37 in | Signal and Power | Housing/Shell (4-40) | Through Hole Right Angle | 125 VDC | Combo D-Sub | Gold | Solder | Polyester Thermoplastic | Copper Alloy | Male Pins Plug | Black | |||
EDAC Inc. | 47W1 5 (DD D) | UL94 V-0 | -55 °C | 125 °C | Nickel Plated Steel | Grounding Indents | 1 | 47 | 3 | 9.4 mm | 0.37 in | Signal and Power | Board Side (M3) | Through Hole Right Angle | 125 VDC | Combo D-Sub | Gold | Solder | Polyester Thermoplastic | Copper Alloy | Male Pins Plug | Black | 0.76 Ám | 30 Áin | 10A 5A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
629-47W Series
47 (46 + 1 Power) Position D-Sub, Combo Plug, Male Pins Connector
