LB15WKG01

Active

NKK Switches

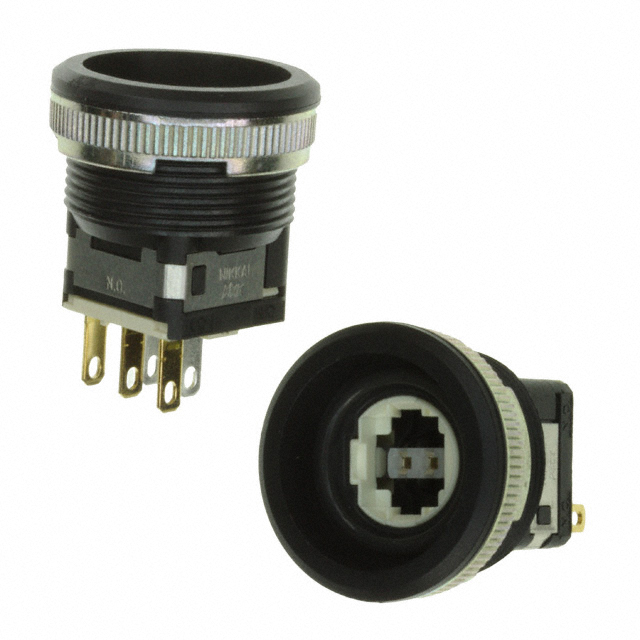

STANDARD SIZE PANEL SEAL PUSHBUTTON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LB15WKG01

Active

NKK Switches

STANDARD SIZE PANEL SEAL PUSHBUTTON

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LB15WKG01

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

LB15WKG Series

Part	Actuator Type	Ingress Protection	Type	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Termination Style	Termination Style	Termination Style	Voltage Rating - AC	Circuit	Illumination Voltage (Nominal)	Actuator Marking	Switch Function	Voltage Rating - DC	Illumination Type, Color	Electrical Life	Mechanical Life	Current Rating (Amps)	Mounting Type	Panel Cutout Dimensions [diameter]
NKK Switches LB15WKG01-6F-JB	Button Round	IP65 - Dust Tight Water Resistant	Illuminated Standard	50 °C	-25 °C	Clear	0.11 in	Quick Connect Solder	2.8 mm	28 V	SPDT	3.3 VDC	No Marking	On-Mom	28 V	Green LED	100000 Cycles	1000000 Cycles	0.4 VA	Panel Mount Front	22 mm
NKK Switches LB15WKG01-5F24-JB	Button Round	IP65 - Dust Tight Water Resistant	Illuminated Standard	50 °C	-25 °C	Clear	0.11 in	Quick Connect Solder	2.8 mm	28 V	SPDT	24 V	No Marking	On-Mom	28 V	Green LED	100000 Cycles	1000000 Cycles	0.4 VA	Panel Mount Front	22 mm
NKK Switches LB15WKG01-5F05-JB	Button Round	IP65 - Dust Tight Water Resistant	Illuminated Standard	50 °C	-25 °C	Clear	0.11 in	Quick Connect Solder	2.8 mm	28 V	SPDT	5 VDC	No Marking	On-Mom	28 V	Green LED	100000 Cycles	1000000 Cycles	0.4 VA	Panel Mount Front	22 mm
NKK Switches LB15WKG01-5F24-JF	Button Round	IP65 - Dust Tight Water Resistant	Illuminated Standard	50 °C	-25 °C	Clear	0.11 in	Quick Connect Solder	2.8 mm	28 V	SPDT	24 V	No Marking	On-Mom	28 V	Green LED	100000 Cycles	1000000 Cycles	0.4 VA	Panel Mount Front	22 mm
NKK Switches LB15WKG01-CJ	Button Round	IP65 - Dust Tight Water Resistant	Standard	70 °C	-25 °C	Red	0.11 in	Quick Connect Solder	2.8 mm	28 V	SPDT		No Marking	On-Mom	28 V		100000 Cycles	1000000 Cycles	0.4 VA	Panel Mount Front	22 mm
NKK Switches LB15WKG01-5C24-JC	Button Round	IP65 - Dust Tight Water Resistant	Illuminated Standard	50 °C	-25 °C	Clear (Red Filter/Diffuser)	0.11 in	Quick Connect Solder	2.8 mm	28 V	SPDT	24 V	No Marking	On-Mom	28 V	LED Red	100000 Cycles	1000000 Cycles	0.4 VA	Panel Mount Front	22 mm
NKK Switches LB15WKG01-FJ	Button Round	IP65 - Dust Tight Water Resistant	Standard	70 °C	-25 °C	Green	0.11 in	Quick Connect Solder	2.8 mm	28 V	SPDT		No Marking	On-Mom	28 V		100000 Cycles	1000000 Cycles	0.4 VA	Panel Mount Front	22 mm
NKK Switches LB15WKG01	Plunger for Cap	IP65 - Dust Tight Water Resistant	Standard	70 °C	-25 °C		0.11 in	Quick Connect Solder	2.8 mm	28 V	SPDT		No Marking	On-Mom	28 V		100000 Cycles	1000000 Cycles	0.4 VA	Panel Mount Front	22 mm
NKK Switches LB15WKG01-5C12-JC	Button Round	IP65 - Dust Tight Water Resistant	Illuminated Standard	50 °C	-25 °C	Clear (Red Filter/Diffuser)	0.11 in	Quick Connect Solder	2.8 mm	28 V	SPDT	12 VDC	No Marking	On-Mom	28 V	LED Red	100000 Cycles	1000000 Cycles	0.4 VA	Panel Mount Front	22 mm
NKK Switches LB15WKG01-EJ	Button Round	IP65 - Dust Tight Water Resistant	Standard	70 °C	-25 °C	Yellow	0.11 in	Quick Connect Solder	2.8 mm	28 V	SPDT		No Marking	On-Mom	28 V		100000 Cycles	1000000 Cycles	0.4 VA	Panel Mount Front	22 mm
