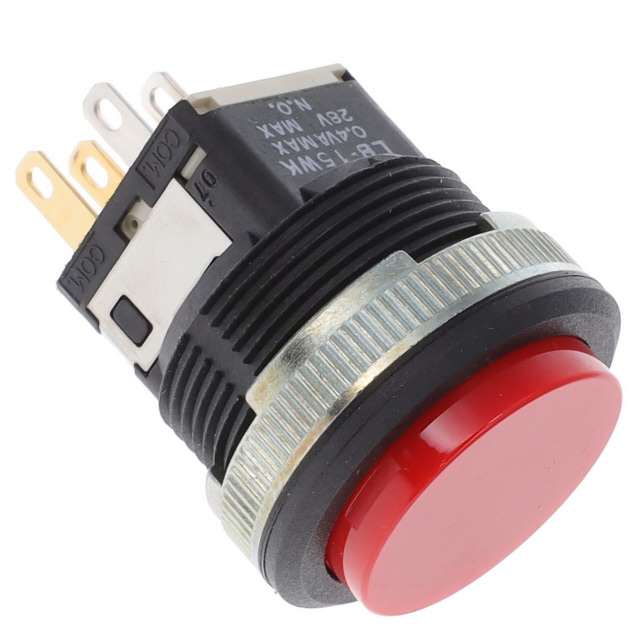

Specification	LB15WKG01-CJ

Actuator Marking	No Marking
Actuator Type	Button, Round
Circuit	SPDT
Color - Actuator/Cap	Red
Current Rating	0.4 VA
Electrical Life (Cycles)	100000 Cycles
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Mechanical Life (Cycles)	1000000 Cycles
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Panel Cutout Diameter	22 mm
Panel Cutout Shape	Circular
Quick Connect Size (0.110")	0.11 in
Switch Function	On-Mom
Termination Style	Quick Connect, Solder
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

LB Series

...

Part	Mechanical Life (Cycles)	Electrical Life (Cycles)	Operating Temperature (Min)	Operating Temperature (Max)	Panel Cutout Diameter	Panel Cutout Shape	Illumination Voltage (Nominal)	Mounting Type	Current Rating	Voltage Rating - AC	Voltage Rating - DC	Actuator Marking	Actuator Type	Circuit	Color	Illumination Type	Switch Function	Quick Connect Size (0.110")	Termination Style	Type	Color - Actuator/Cap
NKK Switches LB16CKW01-1C-A	200000 Cycles	100000 Cycles	-25 °C	50 °C	22 mm	Circular	1.9 VDC	Panel Mount Snap-In	3 A	125 V	30 V	No Marking	Button Round	SPDT	Red	LED	On-On	0.11 in	Quick Connect Solder	Illuminated Standard	Black
NKK Switches LB16CKW01-C	200000 Cycles	100000 Cycles	-25 °C	70 °C	22 mm	Circular		Panel Mount Snap-In	3 A	125 V	30 V	No Marking	Button Round	SPDT			On-On	0.11 in	Quick Connect Solder	Standard	Red
NKK Switches LB16CKW01-5C-JB	200000 Cycles	100000 Cycles	-25 °C	50 °C	22 mm	Circular	1.9 VDC	Panel Mount Snap-In	3 A	125 V	30 V	No Marking	Button Round	SPDT	Red	LED	On-On	0.11 in	Quick Connect Solder	Illuminated Standard	Clear (White Filter/Diffuser)
NKK Switches LB16CKW01-6B-JB	200000 Cycles	100000 Cycles	-25 °C	50 °C	22 mm	Circular	3.3 VDC	Panel Mount Snap-In	3 A	125 V	30 V	No Marking	Button Round	SPDT	White	LED	On-On	0.11 in	Quick Connect Solder	Illuminated Standard	Clear (White Filter/Diffuser)
NKK Switches LB16CKW01-6F-JB	200000 Cycles	100000 Cycles	-25 °C	50 °C	22 mm	Circular	3.3 VDC	Panel Mount Snap-In	3 A	125 V	30 V	No Marking	Button Round	SPDT	Green	LED	On-On	0.11 in	Quick Connect Solder	Illuminated Standard	Clear (White Filter/Diffuser)
NKK Switches LB16CKW01-5C12-JC	200000 Cycles	100000 Cycles	-25 °C	50 °C	22 mm	Circular	12 V	Panel Mount Snap-In	3 A	125 V	30 V	No Marking	Button Round	SPDT	Red	LED	On-On	0.11 in	Quick Connect Solder	Illuminated Standard	Clear (Red Filter/Diffuser)
NKK Switches LB16CKW01-1F-A	200000 Cycles	100000 Cycles	-25 °C	50 °C	22 mm	Circular	2.1 VDC	Panel Mount Snap-In	3 A	125 V	30 V	No Marking	Button Round	SPDT	Green	LED	On-On	0.11 in	Quick Connect Solder	Illuminated Standard	Black
NKK Switches LB16CKW01-5C-JC	200000 Cycles	100000 Cycles	-25 °C	50 °C	22 mm	Circular	1.9 VDC	Panel Mount Snap-In	3 A	125 V	30 V	No Marking	Button Round	SPDT	Red	LED	On-On	0.11 in	Quick Connect Solder	Illuminated Standard	Clear (Red Filter/Diffuser)
NKK Switches LB16CKW01-01-JE	200000 Cycles	100000 Cycles	-25 °C	50 °C	22 mm	Circular	110 VAC	Panel Mount Snap-In	3 A	125 V	30 V	No Marking	Button Round	SPDT	Yellow	Neon	On-On	0.11 in	Quick Connect Solder	Illuminated Standard	Clear (Yellow Filter/Diffuser)
NKK Switches LB16CKW01-B	200000 Cycles	100000 Cycles	-25 °C	70 °C	22 mm	Circular		Panel Mount Snap-In	3 A	125 V	30 V	No Marking	Button Round	SPDT			On-On	0.11 in	Quick Connect Solder	Standard	White
