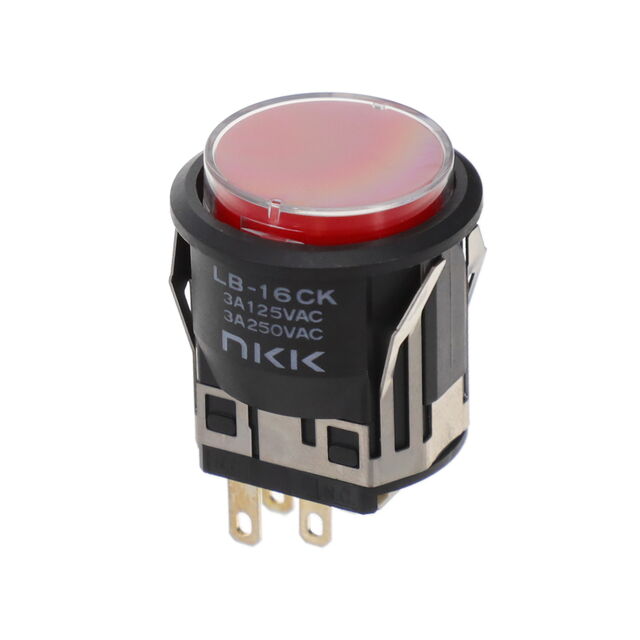

LB16CKW01-5C12-JC

Active

NKK Switches

STANDARD SIZE PANEL SEAL PUSHBUTTON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LB16CKW01-5C12-JC

Active

NKK Switches

STANDARD SIZE PANEL SEAL PUSHBUTTON

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LB16CKW01-5C12-JC

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Clear (Red Filter/Diffuser)
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	12 VDC
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22 mm
Switch Function	On-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

LB16CKW01 Series

Part	Panel Cutout Dimensions [diameter]	Electrical Life	Illumination Type, Color	Mechanical Life	Actuator Marking	Color - Actuator/Cap	Type	Circuit	Illumination Voltage (Nominal)	Actuator Type	Voltage Rating - DC	Mounting Type	Current Rating (Amps)	Switch Function	Termination Style	Termination Style	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC
NKK Switches LB16CKW01-5C-JB	22 mm	100000 Cycles	LED Red	200000 Cycles	No Marking	Clear	Illuminated Standard	SPDT	1.9 VDC	Button Round	30 V	Panel Mount Snap-In	3 A	On-On	0.11 in	Quick Connect Solder	2.8 mm	50 °C	-25 °C	125 V
NKK Switches LB16CKW01-6B-JB	22 mm	100000 Cycles	LED White	200000 Cycles	No Marking	Clear	Illuminated Standard	SPDT	3.3 VDC	Button Round	30 V	Panel Mount Snap-In	3 A	On-On	0.11 in	Quick Connect Solder	2.8 mm	50 °C	-25 °C	125 V
NKK Switches LB16CKW01-6F-JB	22 mm	100000 Cycles	Green LED	200000 Cycles	No Marking	Clear	Illuminated Standard	SPDT	3.3 VDC	Button Round	30 V	Panel Mount Snap-In	3 A	On-On	0.11 in	Quick Connect Solder	2.8 mm	50 °C	-25 °C	125 V
NKK Switches LB16CKW01-5C12-JC	22 mm	100000 Cycles	LED Red	200000 Cycles	No Marking	Clear (Red Filter/Diffuser)	Illuminated Standard	SPDT	12 VDC	Button Round	30 V	Panel Mount Snap-In	3 A	On-On	0.11 in	Quick Connect Solder	2.8 mm	50 °C	-25 °C	125 V
NKK Switches LB16CKW01-5C05-JC	22 mm	100000 Cycles	LED Red	200000 Cycles	No Marking	Clear (Red Filter/Diffuser)	Illuminated Standard	SPDT	5 VDC	Button Round	30 V	Panel Mount Snap-In	3 A	On-On	0.11 in	Quick Connect Solder	2.8 mm	50 °C	-25 °C	125 V
NKK Switches LB16CKW01-1F-A	22 mm	100000 Cycles	Green LED	200000 Cycles	No Marking	Black	Illuminated Standard	SPDT	2.1 VDC	Button Round	30 V	Panel Mount Snap-In	3 A	On-On	0.11 in	Quick Connect Solder	2.8 mm	50 °C	-25 °C	125 V
NKK Switches LB16CKW01-5C-JC	22 mm	100000 Cycles	LED Red	200000 Cycles	No Marking	Clear (Red Filter/Diffuser)	Illuminated Standard	SPDT	1.9 VDC	Button Round	30 V	Panel Mount Snap-In	3 A	On-On	0.11 in	Quick Connect Solder	2.8 mm	50 °C	-25 °C	125 V
NKK Switches LB16CKW01-01-JE	22 mm	100000 Cycles	Neon Yellow	200000 Cycles	No Marking	Clear (Yellow Filter/Diffuser)	Illuminated Standard	SPDT		Button Round	30 V	Panel Mount Snap-In	3 A	On-On	0.11 in	Quick Connect Solder	2.8 mm	50 °C	-25 °C	125 V
NKK Switches LB16CKW01-B	22 mm	100000 Cycles		200000 Cycles	No Marking	White	Standard	SPDT		Button Round	30 V	Panel Mount Snap-In	3 A	On-On	0.11 in	Quick Connect Solder	2.8 mm	70 °C	-25 °C	125 V
NKK Switches LB16CKW01-5F05-JF	22 mm	100000 Cycles	Green LED	200000 Cycles	No Marking	Clear	Illuminated Standard	SPDT	5 VDC	Button Round	30 V	Panel Mount Snap-In	3 A	On-On	0.11 in	Quick Connect Solder	2.8 mm	50 °C	-25 °C	125 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 34.14
		10	$ 29.46
		25	$ 27.77
		50	$ 26.56
		100	$ 25.39
		250	$ 23.93
Newark	Each	1	$ 47.47
		5	$ 42.34
		10	$ 40.90
		25	$ 38.64
		50	$ 35.97
		100	$ 31.86
		250	$ 28.57

Description

General part information

LB16CKW01 Series

Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Snap-In
