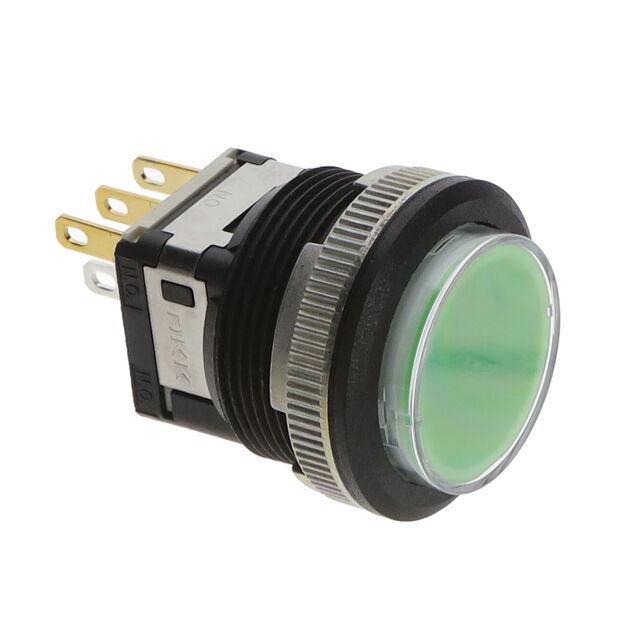

LB15WKG01-5F24-JF
ActiveNKK Switches
STANDARD SIZE PANEL SEAL PUSHBUTTON
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LB15WKG01-5F24-JF
ActiveNKK Switches
STANDARD SIZE PANEL SEAL PUSHBUTTON
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LB15WKG01-5F24-JF |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | SPDT |
| Color - Actuator/Cap | Clear |
| Current Rating (Amps) | 0.4 VA |
| Electrical Life | 100000 Cycles |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 24 V |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 22 mm |
| Switch Function | On-Mom |
| Termination Style | 0.11 in |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2.8 mm |
| Type | Illuminated, Standard |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
LB15WKG Series
| Part | Actuator Type | Ingress Protection | Type | Operating Temperature [Max] | Operating Temperature [Min] | Color - Actuator/Cap | Termination Style | Termination Style | Termination Style | Voltage Rating - AC | Circuit | Illumination Voltage (Nominal) | Actuator Marking | Switch Function | Voltage Rating - DC | Illumination Type, Color | Electrical Life | Mechanical Life | Current Rating (Amps) | Mounting Type | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | Button Round | IP65 - Dust Tight Water Resistant | Illuminated Standard | 50 °C | -25 °C | Clear | 0.11 in | Quick Connect Solder | 2.8 mm | 28 V | SPDT | 3.3 VDC | No Marking | On-Mom | 28 V | Green LED | 100000 Cycles | 1000000 Cycles | 0.4 VA | Panel Mount Front | 22 mm |
NKK Switches | Button Round | IP65 - Dust Tight Water Resistant | Illuminated Standard | 50 °C | -25 °C | Clear | 0.11 in | Quick Connect Solder | 2.8 mm | 28 V | SPDT | 24 V | No Marking | On-Mom | 28 V | Green LED | 100000 Cycles | 1000000 Cycles | 0.4 VA | Panel Mount Front | 22 mm |
NKK Switches | Button Round | IP65 - Dust Tight Water Resistant | Illuminated Standard | 50 °C | -25 °C | Clear | 0.11 in | Quick Connect Solder | 2.8 mm | 28 V | SPDT | 5 VDC | No Marking | On-Mom | 28 V | Green LED | 100000 Cycles | 1000000 Cycles | 0.4 VA | Panel Mount Front | 22 mm |
NKK Switches | Button Round | IP65 - Dust Tight Water Resistant | Illuminated Standard | 50 °C | -25 °C | Clear | 0.11 in | Quick Connect Solder | 2.8 mm | 28 V | SPDT | 24 V | No Marking | On-Mom | 28 V | Green LED | 100000 Cycles | 1000000 Cycles | 0.4 VA | Panel Mount Front | 22 mm |
NKK Switches | Button Round | IP65 - Dust Tight Water Resistant | Standard | 70 °C | -25 °C | Red | 0.11 in | Quick Connect Solder | 2.8 mm | 28 V | SPDT | No Marking | On-Mom | 28 V | 100000 Cycles | 1000000 Cycles | 0.4 VA | Panel Mount Front | 22 mm | ||
NKK Switches | Button Round | IP65 - Dust Tight Water Resistant | Illuminated Standard | 50 °C | -25 °C | Clear (Red Filter/Diffuser) | 0.11 in | Quick Connect Solder | 2.8 mm | 28 V | SPDT | 24 V | No Marking | On-Mom | 28 V | LED Red | 100000 Cycles | 1000000 Cycles | 0.4 VA | Panel Mount Front | 22 mm |
NKK Switches | Button Round | IP65 - Dust Tight Water Resistant | Standard | 70 °C | -25 °C | Green | 0.11 in | Quick Connect Solder | 2.8 mm | 28 V | SPDT | No Marking | On-Mom | 28 V | 100000 Cycles | 1000000 Cycles | 0.4 VA | Panel Mount Front | 22 mm | ||
NKK Switches | Plunger for Cap | IP65 - Dust Tight Water Resistant | Standard | 70 °C | -25 °C | 0.11 in | Quick Connect Solder | 2.8 mm | 28 V | SPDT | No Marking | On-Mom | 28 V | 100000 Cycles | 1000000 Cycles | 0.4 VA | Panel Mount Front | 22 mm | |||
NKK Switches | Button Round | IP65 - Dust Tight Water Resistant | Illuminated Standard | 50 °C | -25 °C | Clear (Red Filter/Diffuser) | 0.11 in | Quick Connect Solder | 2.8 mm | 28 V | SPDT | 12 VDC | No Marking | On-Mom | 28 V | LED Red | 100000 Cycles | 1000000 Cycles | 0.4 VA | Panel Mount Front | 22 mm |
NKK Switches | Button Round | IP65 - Dust Tight Water Resistant | Standard | 70 °C | -25 °C | Yellow | 0.11 in | Quick Connect Solder | 2.8 mm | 28 V | SPDT | No Marking | On-Mom | 28 V | 100000 Cycles | 1000000 Cycles | 0.4 VA | Panel Mount Front | 22 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
LB15WKG Series
Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front
