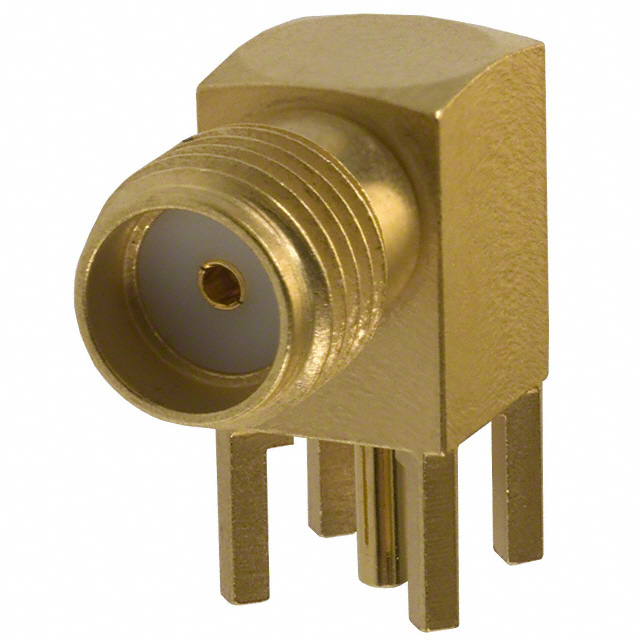

901-143

Active

Amphenol RF

CONN SMA 0HZ TO 18GHZ 50OHM SOLDER RA THRU-HOLE RCP GOLD BAG

Search across all available documentation for this part.

Active

Amphenol RF

CONN SMA 0HZ TO 18GHZ 50OHM SOLDER RA THRU-HOLE RCP GOLD BAG

Technical Specifications

Parameters and characteristics for this part

Specification	901-143

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Impedance	Dielectric Material	Mounting Type	Connector Type	Contact Termination	Mating Cycles	Shield Termination	Connector Style	Number of Ports	Center Contact Material	Body Material	Body Finish	Frequency - Max [Max]	Voltage Rating	Cable Group	Cable Group	Ingress Protection
Amphenol RF 901-144	Gold	-65 ░C	165 °C	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	Through Hole	Female Socket Receptacle	Solder	500	Solder	SMA	1	Beryllium Copper	Stainless Steel	Gold
Amphenol RF 901-148-15	Gold	-65 ░C	165 °C	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	Male Pin Plug	Solder	500	Crimp	SMA	1	Beryllium Copper	Brass	Gold	12.4 GHz	500 V	RG-55	142 223 400	Weatherproof
Amphenol RF 901-143-4	Gold	-65 ░C	165 °C	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	Through Hole Right Angle	Female Socket Jack	Solder	500	Solder	SMA	1	Beryllium Copper	Stainless Steel	Gold	18 GHz
Amphenol RF 901-143	Gold	-65 ░C	165 °C	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	Through Hole Right Angle	Female Socket Jack	Solder	500	Solder	SMA	1	Beryllium Copper	Stainless Steel	Gold	18 GHz
Amphenol RF 901-144-2	Gold	-65 ░C	165 °C	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	Through Hole	Female Socket Receptacle	Solder	500	Solder	SMA	1	Beryllium Copper	Stainless Steel	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Jack, Female Socket 50 Ohms Through Hole, Right Angle Solder
