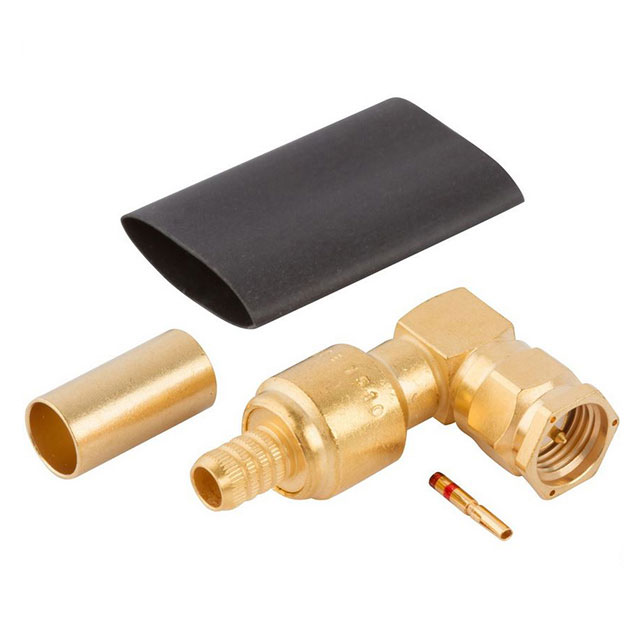

901-148-15

Active

Amphenol RF

CONN SMA PLUG R/A 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN SMA PLUG R/A 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	901-148-15

Body Finish	Gold
Body Material	Brass
Cable Group	RG-55
Cable Group	223, 142, 400
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Ingress Protection	Weatherproof
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Impedance	Dielectric Material	Mounting Type	Connector Type	Contact Termination	Mating Cycles	Shield Termination	Connector Style	Number of Ports	Center Contact Material	Body Material	Body Finish	Frequency - Max [Max]	Voltage Rating	Cable Group	Cable Group	Ingress Protection
Amphenol RF 901-144	Gold	-65 ░C	165 °C	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	Through Hole	Female Socket Receptacle	Solder	500	Solder	SMA	1	Beryllium Copper	Stainless Steel	Gold
Amphenol RF 901-148-15	Gold	-65 ░C	165 °C	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	Male Pin Plug	Solder	500	Crimp	SMA	1	Beryllium Copper	Brass	Gold	12.4 GHz	500 V	RG-55	142 223 400	Weatherproof
Amphenol RF 901-143-4	Gold	-65 ░C	165 °C	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	Through Hole Right Angle	Female Socket Jack	Solder	500	Solder	SMA	1	Beryllium Copper	Stainless Steel	Gold	18 GHz
Amphenol RF 901-143	Gold	-65 ░C	165 °C	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	Through Hole Right Angle	Female Socket Jack	Solder	500	Solder	SMA	1	Beryllium Copper	Stainless Steel	Gold	18 GHz
Amphenol RF 901-144-2	Gold	-65 ░C	165 °C	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	Through Hole	Female Socket Receptacle	Solder	500	Solder	SMA	1	Beryllium Copper	Stainless Steel	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
