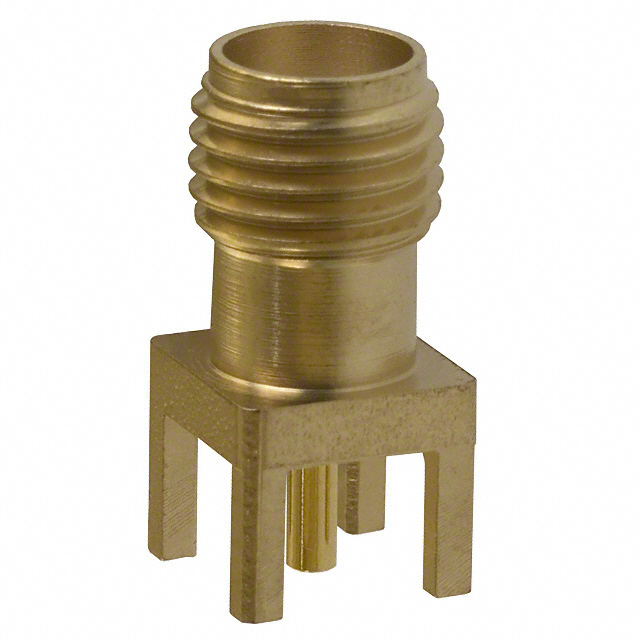

901-144
ActiveAmphenol RF
CONN SMA RCPT STR 50 OHM PCB
Deep-Dive with AI
Search across all available documentation for this part.
901-144
ActiveAmphenol RF
CONN SMA RCPT STR 50 OHM PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 901-144 |
|---|---|
| Body Finish | Gold |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Receptacle, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.26 | |
| 10 | $ 17.14 | |||
| 25 | $ 15.52 | |||
| 50 | $ 14.42 | |||
| 100 | $ 13.42 | |||
| 250 | $ 12.24 | |||
| 500 | $ 11.45 | |||
Description
General part information
901-14 Series
SMA Connector Receptacle, Female Socket 50 Ohms Through Hole Solder
Documents
Technical documentation and resources
No documents available
