3-2299280-2

Active

TE Connectivity Raychem Cable Protection

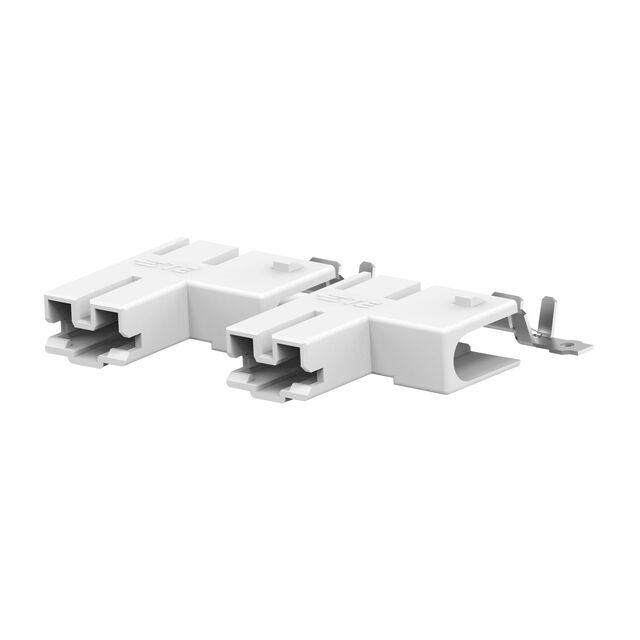

TERMINALS POD-LOK 250 FLAG AWG 16-14 PTPBR GF

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet POD-LOK Application Specification +3

3-2299280-2

Active

TE Connectivity Raychem Cable Protection

TERMINALS POD-LOK 250 FLAG AWG 16-14 PTPBR GF

Deep-Dive with AI

DocumentsDatasheet POD-LOK Application Specification +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3-2299280-2

Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Mating End Insulated
Insulation Diameter [Max] [diameter]	4.32 mm
Insulation Diameter [Max] [diameter]	0.17 "
Insulation Diameter [Min] [diameter]	3.4 mm
Insulation Diameter [Min] [diameter]	0.134 in
Mounting Type	Free Hanging (In-Line), Right Angle
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	6.35 mm
Tab Width	0.25 in
Terminal Type	Flag, Angled - 90°
Termination	Crimp
Wire Gauge [Max]	14 AWG
Wire Gauge [Min]	12 AWG

Positive Lock 250 Series

Part	Note	Number of Positions	Color	Terminal Size	Terminal Size	Terminal Type	Mounting Type	Gender	Style	For Use With/Related Products	For Use With/Related Products	For Use With/Related Products	Material	Tab Thickness	Tab Thickness	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Contact Finish	Tab Width	Tab Width	Termination	Contact Material	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter [Max] [diameter]	Length - Overall [x]	Length - Overall [x]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Stacking Direction
TE Connectivity Raychem Cable Protection 179970-1	Contacts Not Included	1	Natural	6.35 mm	0.25 in	Disconnect Quick Connect	Free Hanging (In-Line)	Female Receptacle	Housing	0.25 in	Quick Connects	6.35 mm	Polyamide (PA66) Nylon 6/6
TE Connectivity Raychem Cable Protection 3-2299280-2						Angled - 90° Flag	Free Hanging (In-Line) Right Angle	Female						0.032 in	0.81 mm	3.4 mm	4.32 mm	0.134 in	0.17 "	Tin	6.35 mm	0.25 in	Crimp	Brass	Mating End Insulated	14 AWG	12 AWG
TE Connectivity Raychem Cable Protection 3-2299280-3
TE Connectivity Raychem Cable Protection 341001-7						Standard	Free Hanging (In-Line)	Female						0.032 in	0.81 mm	3.61 mm		0.142 "	0.169 in	Tin	6.35 mm	0.25 in	Crimp	Phosphor Bronze	Non-Insulated	13 AWG	11 AWG	4.29 mm	0.896 in	22.76 mm
TE Connectivity Raychem Cable Protection 154718-2						Standard	Free Hanging (In-Line)	Female						0.032 in	0.81 mm						6.35 mm	0.25 in	Crimp	Phosphor Bronze	Non-Insulated	18 AWG	14 AWG		0.886 in	22.5 mm	0.094 "	0.126 in	3.2 mm	2.39 mm
TE Connectivity Raychem Cable Protection 2299282-1						Standard	Free Hanging (In-Line)	Female						0.031 "	0.79 mm					Tin	6.35 mm	0.25 in	Crimp	Brass	Mating End Insulated	22 AWG	17.5 AWG		1.402 "	35.6 mm	0.087 "	0.118 in	3 mm	2.21 mm
TE Connectivity Raychem Cable Protection 926646-3	Contacts Not Included	8	Natural	6.35 mm	0.25 in	Disconnect Quick Connect	Free Hanging (In-Line)	Female Receptacle	Housing	0.25 in	Quick Connects	6.35 mm	Polyamide																						Top to Bottom and Side to Side
TE Connectivity Raychem Cable Protection 179970-2		1	Red	6.35 mm	0.25 in	Disconnect Quick Connect	Free Hanging (In-Line)	Female Receptacle	Housing				Polyamide (PA66) Nylon 6/6
TE Connectivity Raychem Cable Protection 3-2299280-1						Angled - 90° Flag	Free Hanging (In-Line) Right Angle	Female						0.032 in	0.81 mm					Tin	6.35 mm	0.25 in	Crimp	Brass	Mating End Insulated	22 AWG	17.5 AWG				0.087 "	0.118 in	3 mm	2.21 mm
TE Connectivity Raychem Cable Protection 3-179970-1		1		6.35 mm	0.25 in	Disconnect Quick Connect	Free Hanging (In-Line)	Female Receptacle	Housing				Polyamide (PA66) Nylon 6/6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.40
		10	$ 0.36
		25	$ 0.36
		50	$ 0.35
		100	$ 0.30
		250	$ 0.27
		500	$ 0.26
		1000	$ 0.23
		2500	$ 0.22
	Tape & Reel (TR)	9600	$ 0.21
		19200	$ 0.20
		28800	$ 0.20
		48000	$ 0.19
Sager	N/A	9600	$ 0.21

Description

General part information

Positive Lock 250 Series

Quick Disconnect Receptacle, 16 – 14 AWG, 1 – 2 mm² Wire, 6.35 mm [.25 in] Tab Width, Flag, Brass, Pre-Tin Plating, Reel, F-Crimp, Positive Lock 250
