3-179970-1
ActiveTE Connectivity Raychem Cable Protection

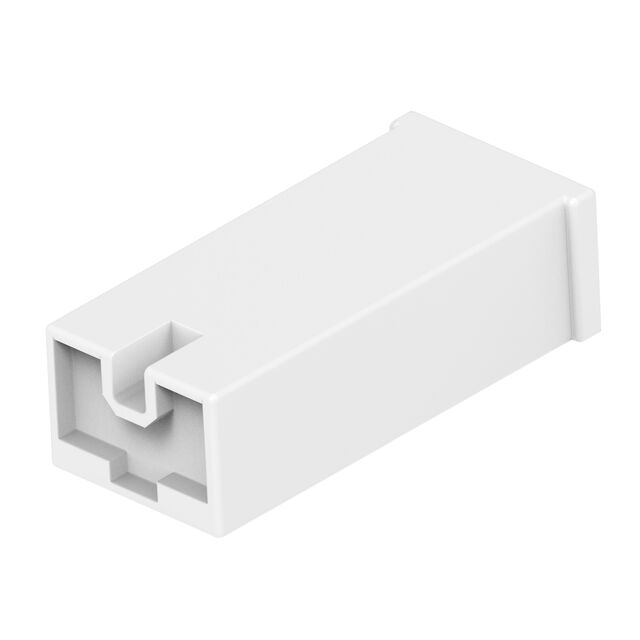

PL EXII 250 REC HSG 1P NYLON NAT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3-179970-1
ActiveTE Connectivity Raychem Cable Protection
PL EXII 250 REC HSG 1P NYLON NAT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-179970-1 |
|---|---|
| Gender | Female, Receptacle |
| Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 1 |
| Style | Housing |
| Terminal Size | 6.35 mm |
| Terminal Size | 0.25 in |
| Terminal Type | Disconnect, Quick Connect |
Positive Lock 250 Series
| Part | Note | Number of Positions | Color | Terminal Size | Terminal Size | Terminal Type | Mounting Type | Gender | Style | For Use With/Related Products | For Use With/Related Products | For Use With/Related Products | Material | Tab Thickness | Tab Thickness | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Contact Finish | Tab Width | Tab Width | Termination | Contact Material | Insulation | Wire Gauge [Max] | Wire Gauge [Min] | Insulation Diameter [Max] [diameter] | Length - Overall [x] | Length - Overall [x] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Max] | Insulation Diameter [Min] | Stacking Direction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Contacts Not Included | 1 | Natural | 6.35 mm | 0.25 in | Disconnect Quick Connect | Free Hanging (In-Line) | Female Receptacle | Housing | 0.25 in | Quick Connects | 6.35 mm | Polyamide (PA66) Nylon 6/6 | ||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Angled - 90° Flag | Free Hanging (In-Line) Right Angle | Female | 0.032 in | 0.81 mm | 3.4 mm | 4.32 mm | 0.134 in | 0.17 " | Tin | 6.35 mm | 0.25 in | Crimp | Brass | Mating End Insulated | 14 AWG | 12 AWG | ||||||||||||||||||
TE Connectivity Raychem Cable Protection | |||||||||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Standard | Free Hanging (In-Line) | Female | 0.032 in | 0.81 mm | 3.61 mm | 0.142 " | 0.169 in | Tin | 6.35 mm | 0.25 in | Crimp | Phosphor Bronze | Non-Insulated | 13 AWG | 11 AWG | 4.29 mm | 0.896 in | 22.76 mm | ||||||||||||||||
TE Connectivity Raychem Cable Protection | Standard | Free Hanging (In-Line) | Female | 0.032 in | 0.81 mm | 6.35 mm | 0.25 in | Crimp | Phosphor Bronze | Non-Insulated | 18 AWG | 14 AWG | 0.886 in | 22.5 mm | 0.094 " | 0.126 in | 3.2 mm | 2.39 mm | |||||||||||||||||
TE Connectivity Raychem Cable Protection | Standard | Free Hanging (In-Line) | Female | 0.031 " | 0.79 mm | Tin | 6.35 mm | 0.25 in | Crimp | Brass | Mating End Insulated | 22 AWG | 17.5 AWG | 1.402 " | 35.6 mm | 0.087 " | 0.118 in | 3 mm | 2.21 mm | ||||||||||||||||
TE Connectivity Raychem Cable Protection | Contacts Not Included | 8 | Natural | 6.35 mm | 0.25 in | Disconnect Quick Connect | Free Hanging (In-Line) | Female Receptacle | Housing | 0.25 in | Quick Connects | 6.35 mm | Polyamide | Top to Bottom and Side to Side | |||||||||||||||||||||
TE Connectivity Raychem Cable Protection | 1 | Red | 6.35 mm | 0.25 in | Disconnect Quick Connect | Free Hanging (In-Line) | Female Receptacle | Housing | Polyamide (PA66) Nylon 6/6 | ||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Angled - 90° Flag | Free Hanging (In-Line) Right Angle | Female | 0.032 in | 0.81 mm | Tin | 6.35 mm | 0.25 in | Crimp | Brass | Mating End Insulated | 22 AWG | 17.5 AWG | 0.087 " | 0.118 in | 3 mm | 2.21 mm | ||||||||||||||||||
TE Connectivity Raychem Cable Protection | 1 | 6.35 mm | 0.25 in | Disconnect Quick Connect | Free Hanging (In-Line) | Female Receptacle | Housing | Polyamide (PA66) Nylon 6/6 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 7200 | $ 0.11 | |
Description
General part information
Positive Lock 250 Series
1 Position Housing Connector Female, Receptacle 0.250" (6.35mm)
