179970-2

Active

TE Connectivity Raychem Cable Protection

PL EXII 250 REC HSG 1P NYLON RED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

179970-2

Active

TE Connectivity Raychem Cable Protection

PL EXII 250 REC HSG 1P NYLON RED

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	179970-2

Color	Red
Gender	Female, Receptacle
Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Number of Positions	1
Style	Housing
Terminal Size	6.35 mm
Terminal Size	0.25 in
Terminal Type	Disconnect, Quick Connect

Positive Lock 250 Series

Part	Note	Number of Positions	Color	Terminal Size	Terminal Size	Terminal Type	Mounting Type	Gender	Style	For Use With/Related Products	For Use With/Related Products	For Use With/Related Products	Material	Tab Thickness	Tab Thickness	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Contact Finish	Tab Width	Tab Width	Termination	Contact Material	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter [Max] [diameter]	Length - Overall [x]	Length - Overall [x]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Stacking Direction
TE Connectivity Raychem Cable Protection 179970-1	Contacts Not Included	1	Natural	6.35 mm	0.25 in	Disconnect Quick Connect	Free Hanging (In-Line)	Female Receptacle	Housing	0.25 in	Quick Connects	6.35 mm	Polyamide (PA66) Nylon 6/6
TE Connectivity Raychem Cable Protection 3-2299280-2						Angled - 90° Flag	Free Hanging (In-Line) Right Angle	Female						0.032 in	0.81 mm	3.4 mm	4.32 mm	0.134 in	0.17 "	Tin	6.35 mm	0.25 in	Crimp	Brass	Mating End Insulated	14 AWG	12 AWG
TE Connectivity Raychem Cable Protection 3-2299280-3
TE Connectivity Raychem Cable Protection 341001-7						Standard	Free Hanging (In-Line)	Female						0.032 in	0.81 mm	3.61 mm		0.142 "	0.169 in	Tin	6.35 mm	0.25 in	Crimp	Phosphor Bronze	Non-Insulated	13 AWG	11 AWG	4.29 mm	0.896 in	22.76 mm
TE Connectivity Raychem Cable Protection 154718-2						Standard	Free Hanging (In-Line)	Female						0.032 in	0.81 mm						6.35 mm	0.25 in	Crimp	Phosphor Bronze	Non-Insulated	18 AWG	14 AWG		0.886 in	22.5 mm	0.094 "	0.126 in	3.2 mm	2.39 mm
TE Connectivity Raychem Cable Protection 2299282-1						Standard	Free Hanging (In-Line)	Female						0.031 "	0.79 mm					Tin	6.35 mm	0.25 in	Crimp	Brass	Mating End Insulated	22 AWG	17.5 AWG		1.402 "	35.6 mm	0.087 "	0.118 in	3 mm	2.21 mm
TE Connectivity Raychem Cable Protection 926646-3	Contacts Not Included	8	Natural	6.35 mm	0.25 in	Disconnect Quick Connect	Free Hanging (In-Line)	Female Receptacle	Housing	0.25 in	Quick Connects	6.35 mm	Polyamide																						Top to Bottom and Side to Side
TE Connectivity Raychem Cable Protection 179970-2		1	Red	6.35 mm	0.25 in	Disconnect Quick Connect	Free Hanging (In-Line)	Female Receptacle	Housing				Polyamide (PA66) Nylon 6/6
TE Connectivity Raychem Cable Protection 3-2299280-1						Angled - 90° Flag	Free Hanging (In-Line) Right Angle	Female						0.032 in	0.81 mm					Tin	6.35 mm	0.25 in	Crimp	Brass	Mating End Insulated	22 AWG	17.5 AWG				0.087 "	0.118 in	3 mm	2.21 mm
TE Connectivity Raychem Cable Protection 3-179970-1		1		6.35 mm	0.25 in	Disconnect Quick Connect	Free Hanging (In-Line)	Female Receptacle	Housing				Polyamide (PA66) Nylon 6/6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.18
		10	$ 0.15
		25	$ 0.14
		50	$ 0.13
		100	$ 0.12
		300	$ 0.11
		600	$ 0.10
		1200	$ 0.08
		2700	$ 0.08

Description

General part information

Positive Lock 250 Series

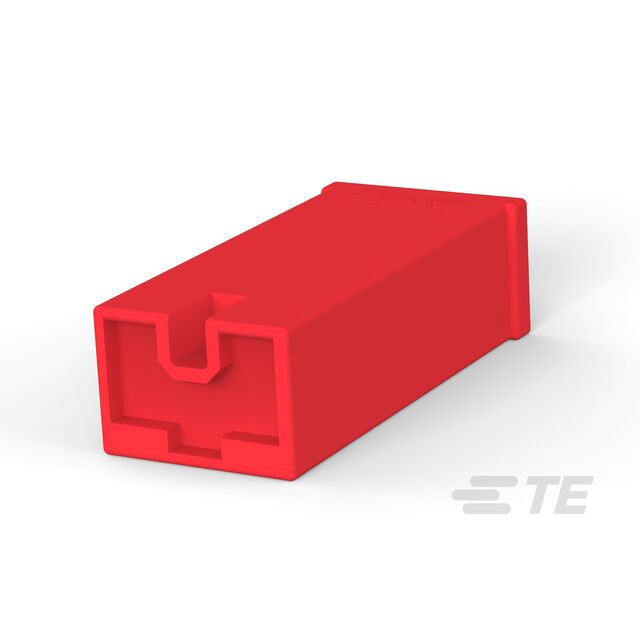

1 Position Housing Connector Female, Receptacle Red 0.250" (6.35mm)
