629-25W3250-2NB

Active

EDAC Inc.

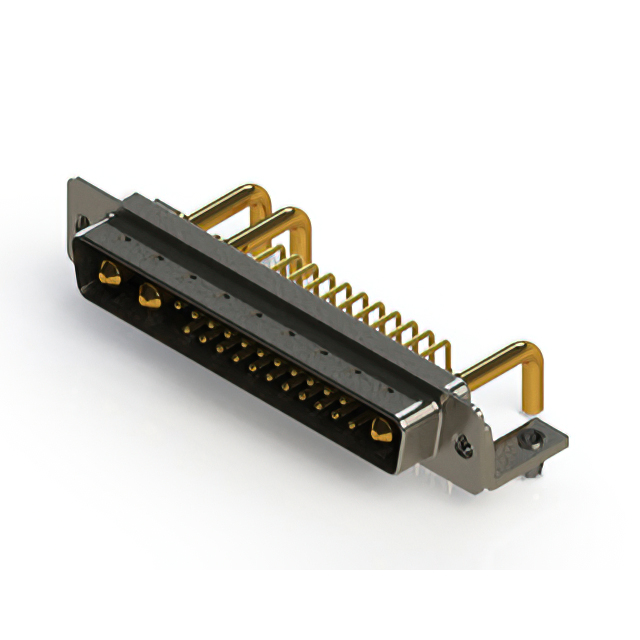

COMBINATION LAYOUT D SUB CONNECTOR, 629C SERIES, DC-25W3, PLUG, 25 CONTACTS, 22 SIGNAL, 3 POWER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

629-25W3250-2NB

Active

EDAC Inc.

COMBINATION LAYOUT D SUB CONNECTOR, 629C SERIES, DC-25W3, PLUG, 25 CONTACTS, 22 SIGNAL, 3 POWER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629-25W3250-2NB

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5 A, 20 A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Mounting Brackets, Board Lock
Flange Feature	Housing/Shell (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions [custom]	22
Number of Positions [custom]	3
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	DC, C - 25W3
Shell Size, Connector Layout [Min]	4
Termination	Solder
Voltage Rating	125 VDC

629-25W Series

...

Part	Material Flammability Rating	Contact Type	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Flange Feature	Connector Type	Shell Material, Finish	Features	Number of Positions [custom]	Number of Positions [custom]	Color	Backset Spacing	Backset Spacing	Shell Size, Connector Layout	Shell Size, Connector Layout [Min]	Voltage Rating	Contact Finish Thickness	Termination	Dielectric Material	Contact Finish	Mounting Type	Connector Style	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)
EDAC Inc. 629-25W3250-2NB	UL94 V-0	Signal and Power	5 A 20 A	-55 °C	125 °C	Copper Alloy	Housing/Shell (M3)	Male Pins Plug	Nickel Plated Steel	Board Lock Grounding Indents Mounting Brackets	22	3	Black	9.4 mm	0.37 in	DC C - 25W3	4	125 VDC	Flash	Solder	Polyester Thermoplastic	Gold	Through Hole Right Angle	Combo D-Sub	2
EDAC Inc. 629-25W3250-3NA	UL94 V-0	Signal and Power	5 A 30 A	-55 °C	125 °C	Copper Alloy	Board Side (M3)	Male Pins Plug	Nickel Plated Steel	Grounding Indents	22	3	Black	9.4 mm	0.37 in	DC C - 25W3	4	125 VDC	Flash	Solder	Polyester Thermoplastic	Gold	Through Hole Right Angle	Combo D-Sub	2
EDAC Inc. 629-25W3240-2TB	UL94 V-0	Signal and Power	5 A 20 A	-55 °C	125 °C	Copper Alloy	Housing/Shell (M3)	Male Pins Plug		Board Lock Grounding Indents Mounting Brackets	22	3	Black	9.4 mm	0.37 in	DC C - 25W3	4	125 VDC	Flash	Solder	Polyester Thermoplastic	Gold	Through Hole Right Angle	Combo D-Sub	2
EDAC Inc. 629-25W3640-3T1	UL94 V-0	Signal and Power	5 A 30 A	-55 °C	125 °C	Copper Alloy	Housing/Shell (Unthreaded)	Male Pins Plug		Grounding Indents Shielded	22	3	Black	9.4 mm	0.37 in	DC C - 25W3	4	125 VDC		Solder	Polyester Thermoplastic	Gold	Through Hole Right Angle	Combo D-Sub	2	0.76 Ám	30 Áin
EDAC Inc. 629-25W3250-1T4	UL94 V-0	Signal and Power		-55 °C	125 °C	Copper Alloy	Housing/Shell (4-40)	Male Pins Plug		Grounding Indents Mounting Brackets	22	3	Black	9.4 mm	0.37 in	DC C - 25W3	4	125 VDC	Flash	Solder	Polyester Thermoplastic	Gold	Through Hole Right Angle	Combo D-Sub	2			10A 5A
EDAC Inc. 629-25W3240-1T5	UL94 V-0	Signal and Power		-55 °C	125 °C	Copper Alloy	4-40	Male Pins Plug		Board Lock Grounding Indents Mounting Brackets	22	3	Black	9.4 mm	0.37 in	DC C - 25W3	4	125 VDC	Flash	Solder	Polyester Thermoplastic	Gold	Through Hole Right Angle	Combo D-Sub	2			10A 5A
EDAC Inc. 629-25W3650-3T5	UL94 V-0	Signal and Power	5 A 30 A	-55 °C	125 °C	Copper Alloy	4-40	Male Pins Plug		Board Lock Grounding Indents Mounting Brackets	22	3	Black	9.4 mm	0.37 in	DC C - 25W3	4	125 VDC		Solder	Polyester Thermoplastic	Gold	Through Hole Right Angle	Combo D-Sub	2	0.76 Ám	30 Áin
EDAC Inc. 629-25W3250-3NB	UL94 V-0	Signal and Power	5 A 30 A	-55 °C	125 °C	Copper Alloy	Housing/Shell (M3)	Male Pins Plug	Nickel Plated Steel	Board Lock Grounding Indents Mounting Brackets	22	3	Black	9.4 mm	0.37 in	DC C - 25W3	4	125 VDC	Flash	Solder	Polyester Thermoplastic	Gold	Through Hole Right Angle	Combo D-Sub	2
EDAC Inc. 629-25W3240-2TE	UL94 V-0	Signal and Power	5 A 20 A	-55 °C	125 °C	Copper Alloy	M3	Male Pins Plug		Grounding Indents Mounting Brackets	22	3	Black	9.4 mm	0.37 in	DC C - 25W3	4	125 VDC	Flash	Solder	Polyester Thermoplastic	Gold	Through Hole Right Angle	Combo D-Sub	2
EDAC Inc. 629-25W3650-2TB	UL94 V-0	Signal and Power	5 A 20 A	-55 °C	125 °C	Copper Alloy	Housing/Shell (M3)	Male Pins Plug		Board Lock Grounding Indents Mounting Brackets	22	3	Black	9.4 mm	0.37 in	DC C - 25W3	4	125 VDC		Solder	Polyester Thermoplastic	Gold	Through Hole Right Angle	Combo D-Sub	2	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 12.24
Newark	Each	1	$ 14.71
		250	$ 13.48
		500	$ 12.44
		1000	$ 11.98
		5000	$ 10.59

Description

General part information

629-25W Series

25 (22 + 3 Power) Position D-Sub, Combo Plug, Male Pins Connector
