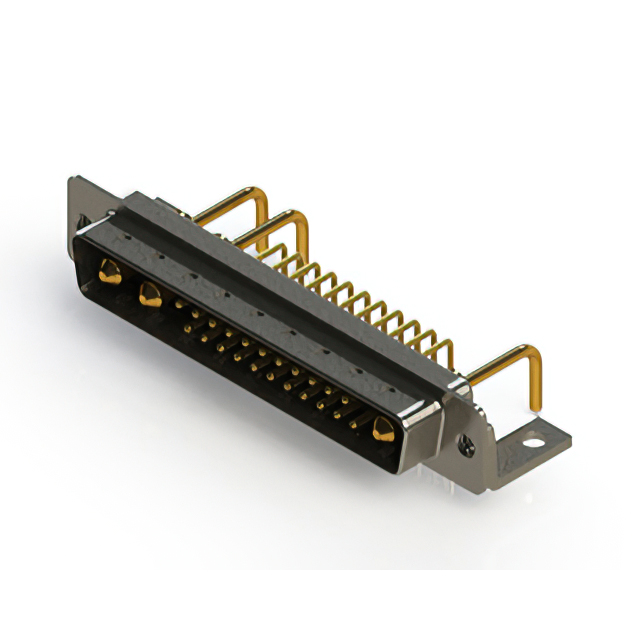

629-25W3250-1T4

Active

EDAC Inc.

CONN D-SUB PLUG 25POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

629-25W3250-1T4

Active

EDAC Inc.

CONN D-SUB PLUG 25POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629-25W3250-1T4

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5A, 10A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Mounting Brackets
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions [custom]	22
Number of Positions [custom]	3
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	DC, C - 25W3
Shell Size, Connector Layout [Min]	4
Termination	Solder
Voltage Rating	125 VDC

629-25W Series

...

Part	Material Flammability Rating	Contact Type	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Flange Feature	Connector Type	Shell Material, Finish	Features	Number of Positions [custom]	Number of Positions [custom]	Color	Backset Spacing	Backset Spacing	Shell Size, Connector Layout	Shell Size, Connector Layout [Min]	Voltage Rating	Contact Finish Thickness	Termination	Dielectric Material	Contact Finish	Mounting Type	Connector Style	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)
EDAC Inc. 629-25W3250-2NB	UL94 V-0	Signal and Power	5 A 20 A	-55 °C	125 °C	Copper Alloy	Housing/Shell (M3)	Male Pins Plug	Nickel Plated Steel	Board Lock Grounding Indents Mounting Brackets	22	3	Black	9.4 mm	0.37 in	DC C - 25W3	4	125 VDC	Flash	Solder	Polyester Thermoplastic	Gold	Through Hole Right Angle	Combo D-Sub	2
EDAC Inc. 629-25W3250-3NA	UL94 V-0	Signal and Power	5 A 30 A	-55 °C	125 °C	Copper Alloy	Board Side (M3)	Male Pins Plug	Nickel Plated Steel	Grounding Indents	22	3	Black	9.4 mm	0.37 in	DC C - 25W3	4	125 VDC	Flash	Solder	Polyester Thermoplastic	Gold	Through Hole Right Angle	Combo D-Sub	2
EDAC Inc. 629-25W3240-2TB	UL94 V-0	Signal and Power	5 A 20 A	-55 °C	125 °C	Copper Alloy	Housing/Shell (M3)	Male Pins Plug		Board Lock Grounding Indents Mounting Brackets	22	3	Black	9.4 mm	0.37 in	DC C - 25W3	4	125 VDC	Flash	Solder	Polyester Thermoplastic	Gold	Through Hole Right Angle	Combo D-Sub	2
EDAC Inc. 629-25W3640-3T1	UL94 V-0	Signal and Power	5 A 30 A	-55 °C	125 °C	Copper Alloy	Housing/Shell (Unthreaded)	Male Pins Plug		Grounding Indents Shielded	22	3	Black	9.4 mm	0.37 in	DC C - 25W3	4	125 VDC		Solder	Polyester Thermoplastic	Gold	Through Hole Right Angle	Combo D-Sub	2	0.76 Ám	30 Áin
EDAC Inc. 629-25W3250-1T4	UL94 V-0	Signal and Power		-55 °C	125 °C	Copper Alloy	Housing/Shell (4-40)	Male Pins Plug		Grounding Indents Mounting Brackets	22	3	Black	9.4 mm	0.37 in	DC C - 25W3	4	125 VDC	Flash	Solder	Polyester Thermoplastic	Gold	Through Hole Right Angle	Combo D-Sub	2			10A 5A
EDAC Inc. 629-25W3240-1T5	UL94 V-0	Signal and Power		-55 °C	125 °C	Copper Alloy	4-40	Male Pins Plug		Board Lock Grounding Indents Mounting Brackets	22	3	Black	9.4 mm	0.37 in	DC C - 25W3	4	125 VDC	Flash	Solder	Polyester Thermoplastic	Gold	Through Hole Right Angle	Combo D-Sub	2			10A 5A
EDAC Inc. 629-25W3650-3T5	UL94 V-0	Signal and Power	5 A 30 A	-55 °C	125 °C	Copper Alloy	4-40	Male Pins Plug		Board Lock Grounding Indents Mounting Brackets	22	3	Black	9.4 mm	0.37 in	DC C - 25W3	4	125 VDC		Solder	Polyester Thermoplastic	Gold	Through Hole Right Angle	Combo D-Sub	2	0.76 Ám	30 Áin
EDAC Inc. 629-25W3250-3NB	UL94 V-0	Signal and Power	5 A 30 A	-55 °C	125 °C	Copper Alloy	Housing/Shell (M3)	Male Pins Plug	Nickel Plated Steel	Board Lock Grounding Indents Mounting Brackets	22	3	Black	9.4 mm	0.37 in	DC C - 25W3	4	125 VDC	Flash	Solder	Polyester Thermoplastic	Gold	Through Hole Right Angle	Combo D-Sub	2
EDAC Inc. 629-25W3240-2TE	UL94 V-0	Signal and Power	5 A 20 A	-55 °C	125 °C	Copper Alloy	M3	Male Pins Plug		Grounding Indents Mounting Brackets	22	3	Black	9.4 mm	0.37 in	DC C - 25W3	4	125 VDC	Flash	Solder	Polyester Thermoplastic	Gold	Through Hole Right Angle	Combo D-Sub	2
EDAC Inc. 629-25W3650-2TB	UL94 V-0	Signal and Power	5 A 20 A	-55 °C	125 °C	Copper Alloy	Housing/Shell (M3)	Male Pins Plug		Board Lock Grounding Indents Mounting Brackets	22	3	Black	9.4 mm	0.37 in	DC C - 25W3	4	125 VDC		Solder	Polyester Thermoplastic	Gold	Through Hole Right Angle	Combo D-Sub	2	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2000	$ 8.20

Description

General part information

629-25W Series

25 (22 + 3 Power) Position D-Sub, Combo Plug, Male Pins Connector
