629-25W3240-2TE

Active

EDAC Inc.

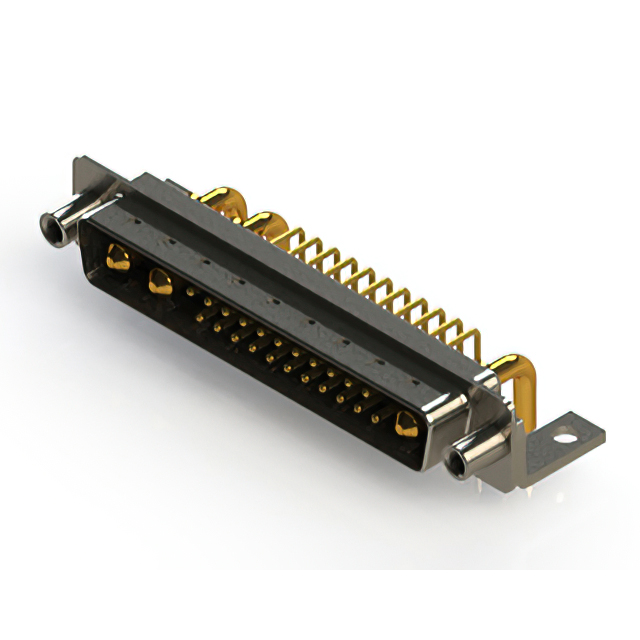

CONN D-SUB PLUG 25POS R/A SLDR

629-25W3240-2TE

Active

EDAC Inc.

CONN D-SUB PLUG 25POS R/A SLDR

Description Specifications Series Pricing CAD Documents

Description

General part information

629-25W Series

25 (22 + 3 Power) Position D-Sub, Combo Plug, Male Pins Connector

Technical Specifications

Parameters and characteristics for this part

Specification	629-25W3240-2TE

Backset Spacing	0.37 in
Color	Black
Connector Layout	DC, C
Connector Style	Combo, D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Material	Copper Alloy
Contact Type	Signal, Power
Current Rating Options	5A, 20A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Mounting Brackets
Finish	Tin Plated
Flange Feature	Mating Side (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions (Normal)	22
Number of Positions (Power)	3
Number of Positions (Total)	25
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Part Code	25W3
Shell Material	Steel
Shell Size	4
Termination	Solder
Voltage Rating	125 V

629-25W Series

...

Part	Shell Material	Finish	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Current Rating Options	Number of Positions (Power)	Number of Positions (Normal)	Number of Positions (Total)	Termination	Backset Spacing	Connector Type	Mounting Type	Material Flammability Rating	Contact Type	Contact Finish	Shell Size	Part Code	Connector Layout	Connector Style	Features	Number of Rows	Flange Feature	Dielectric Material	Color	Voltage Rating	Contact Material	Operating Temperature (Max)	Operating Temperature (Min)
EDAC Inc. 629-25W3250-2NB	Steel	Nickel Plated	0	Flash	Flash	20A 5A	3	22	25	Solder	0.37 in	Male Pins Plug	Right Angle Through Hole	UL94 V-0	Power Signal	Gold	4	25W3	C DC	Combo D-Sub	Board Lock Grounding Indents Mounting Brackets	2	Housing Shell (M3)	Polyester Thermoplastic	Black	125 V	Copper Alloy	125 °C	-55 °C
EDAC Inc. 629-25W3250-3NA	Steel	Nickel Plated	0	Flash	Flash	30A 5A	3	22	25	Solder	0.37 in	Male Pins Plug	Right Angle Through Hole	UL94 V-0	Power Signal	Gold	4	25W3	C DC	Combo D-Sub	Grounding Indents	2	Board Side (M3)	Polyester Thermoplastic	Black	125 V	Copper Alloy	125 °C	-55 °C
EDAC Inc. 629-25W3650-3N4	Steel	Nickel Plated	30 µin			30A 5A	3	22	25	Solder	0.37 in	Male Pins Plug	Right Angle Through Hole	UL94 V-0	Power Signal	Gold	4	25W3	C DC	Combo D-Sub	Grounding Indents Mounting Brackets	2	Housing Shell (4-40)	Polyester Thermoplastic	Black	125 V	Copper Alloy	125 °C	-55 °C
EDAC Inc. 629-25W3240-2TB	Steel	Tin Plated	0	Flash	Flash	20A 5A	3	22	25	Solder	0.37 in	Male Pins Plug	Right Angle Through Hole	UL94 V-0	Power Signal	Gold	4	25W3	C DC	Combo D-Sub	Board Lock Grounding Indents Mounting Brackets	2	Housing Shell (M3)	Polyester Thermoplastic	Black	125 V	Copper Alloy	125 °C	-55 °C
EDAC Inc. 629-25W3640-3T1	Steel	Tin Plated	30 µin			30A 5A	3	22	25	Solder	0.37 in	Male Pins Plug	Right Angle Through Hole	UL94 V-0	Power Signal	Gold	4	25W3	C DC	Combo D-Sub	Grounding Indents Shielded	2	Housing Shell (Unthreaded)	Polyester Thermoplastic	Black	125 V	Copper Alloy	125 °C	-55 °C
EDAC Inc. 629-25W3250-1T4	Steel	Tin Plated	0	Flash	Flash	10A 5A	3	22	25	Solder	0.37 in	Male Pins Plug	Right Angle Through Hole	UL94 V-0	Power Signal	Gold	4	25W3	C DC	Combo D-Sub	Grounding Indents Mounting Brackets	2	Housing Shell (4-40)	Polyester Thermoplastic	Black	125 V	Copper Alloy	125 °C	-55 °C
EDAC Inc. 629-25W3240-1T5	Steel	Tin Plated	0	Flash	Flash	10A 5A	3	22	25	Solder	0.37 in	Male Pins Plug	Right Angle Through Hole	UL94 V-0	Power Signal	Gold	4	25W3	C DC	Combo D-Sub	Board Lock Grounding Indents Mounting Brackets	2	Mating Side (4-40)	Polyester Thermoplastic	Black	125 V	Copper Alloy	125 °C	-55 °C
EDAC Inc. 629-25W3650-3T5	Steel	Tin Plated	30 µin			30A 5A	3	22	25	Solder	0.37 in	Male Pins Plug	Right Angle Through Hole	UL94 V-0	Power Signal	Gold	4	25W3	C DC	Combo D-Sub	Board Lock Grounding Indents Mounting Brackets	2	Mating Side (4-40)	Polyester Thermoplastic	Black	125 V	Copper Alloy	125 °C	-55 °C
EDAC Inc. 629-25W3250-3NB	Steel	Nickel Plated	0	Flash	Flash	30A 5A	3	22	25	Solder	0.37 in	Male Pins Plug	Right Angle Through Hole	UL94 V-0	Power Signal	Gold	4	25W3	C DC	Combo D-Sub	Board Lock Grounding Indents Mounting Brackets	2	Housing Shell (M3)	Polyester Thermoplastic	Black	125 V	Copper Alloy	125 °C	-55 °C
EDAC Inc. 629-25W3240-2TE	Steel	Tin Plated	0	Flash	Flash	20A 5A	3	22	25	Solder	0.37 in	Male Pins Plug	Right Angle Through Hole	UL94 V-0	Power Signal	Gold	4	25W3	C DC	Combo D-Sub	Grounding Indents Mounting Brackets	2	Mating Side (M3)	Polyester Thermoplastic	Black	125 V	Copper Alloy	125 °C	-55 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

629-25W3240-2TE | Datasheet
