LNE-24V320WDAA

Active

Delta Electronics

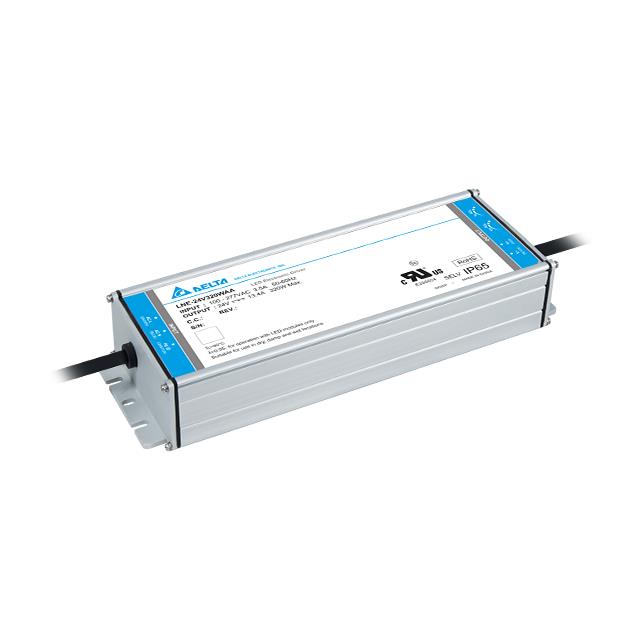

LED DRIVER, IP67, LED LIGHTING, 320 W, 24 V, 13.4 A, CONSTANT CURRENT, CONSTANT VOLTAGE, 90 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

LNE-24V320WDAA

Active

Delta Electronics

LED DRIVER, IP67, LED LIGHTING, 320 W, 24 V, 13.4 A, CONSTANT CURRENT, CONSTANT VOLTAGE, 90 V

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LNE-24V320WDAA

Approval Agency	UL
Current - Output (Max) [Max]	13.4 A
Dimming	Analog, PWM
Efficiency	94 %
Features	OTP, SCP, OVP, OCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	320 W
Ratings	IP67
Size / Dimension [x]	252 mm
Size / Dimension [x]	9.92 in
Size / Dimension [y]	89.9 mm
Size / Dimension [y]	3.54 in
Size / Dimension [z]	1.72 in
Size / Dimension [z]	43.7 mm
Standard Number	60950-1, 50581, 8750
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current, Voltage
Voltage - Input (Max) [Max]	305 VAC
Voltage - Input (Min) [Min]	90 VAC
Voltage - Isolation	3.85 kV
Voltage - Output [Max]	24 V
Voltage - Output [Min]	12 V

LNE-24 Series

Part	Type	Weight	Weight	Features	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Standard Number	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Power (Watts)	Topology	Mounting Type	Termination Style	Voltage - Input (Max) [Max]	Approval Agency	Ratings	Voltage - Output [Max]	Voltage - Output [Min]	Voltage - Isolation	Number of Outputs	Dimming	Size / Dimension [y]	Size / Dimension [z]
Delta Electronics LNE-24V100WAAA	Constant Current Voltage	997.9 g	2.2 lbs	OCP OTP OVP SCP	90 VAC	4 A	50581 55015 55024 61000-3-2 61000-3-3 61347-1 61347-2-13 62384	7.72 "	1.53 in	196 mm	38.8 mm	2.68 "	68 mm	-40 °C	70 °C	93 %	100 W	AC DC Converter	Chassis Mount	Wire Leads	305 VAC	UL	IP65	24 V	12 V	3.85 kV	1
Delta Electronics LNE-24V320WDAA	Constant Current Voltage			OCP OTP OVP SCP	90 VAC	13.4 A	50581 60950-1 8750	9.92 in	1.72 in	252 mm		3.54 in		-40 °C	70 °C	94 %	320 W	AC DC Converter	Chassis Mount	Wire Leads	305 VAC	UL	IP67	24 V	12 V	3.85 kV	1	Analog PWM	89.9 mm	43.7 mm
Delta Electronics LNE-24V150WAAA	Constant Current Voltage	1.1 kg	2.4 lbs	OCP OTP OVP SCP	90 VAC	6.3 A	50581 60950-1 8750	8.03 "	1.53 in	204 mm	38.8 mm	2.68 "	68 mm	-40 °C	70 °C	93 %	150 W	AC DC Converter	Chassis Mount	Wire Leads	305 VAC	UL	IP65	24 V	12 V	3.85 kV	1
Delta Electronics LNE-24V100WDAA	Constant Current Voltage	997.9 g	2.2 lbs	OCP OTP OVP SCP	90 VAC	4 A	50581 55015 55024 61000-3-2 61000-3-3 61347-1 61347-2-13 62384	7.72 "	1.53 in	196 mm	38.8 mm	2.68 "	68 mm	-40 °C	70 °C	93 %	100 W	AC DC Converter	Chassis Mount	Wire Leads	305 VAC	UL	IP67	24 V	12 V	3.85 kV	1	Analog PWM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	16	$ 145.86
Newark	Each	1	$ 186.34
		200	$ 177.46
		500	$ 169.00

Description

General part information

LNE-24 Series

LNE-24V320WDAA is a LNE-320W series LED driver comes with different combinations of features to suit different application requirements and energy optimization needs. This model comes with full corrosion resistant aluminum casing, major international safety certifications and are compliant with EN55015 immunity/Emissions/Harmonic requirements. The products is designed and rigorously tested to work in various indoor and outdoor LED lighting conditions. High surge immunity MTBF > 700,000hrs, all make the delta make an essential part of an energy efficient LED lighting power solution for both indoor and outdoor applications. It includes overvoltage, overload, overcurrent, over temperature, short circuit protection. Application includes LED lighting.
