LNE-24V100WDAA

Obsolete

Delta Electronics

LED DRIVER CC/CV AC/DC 24V 4A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

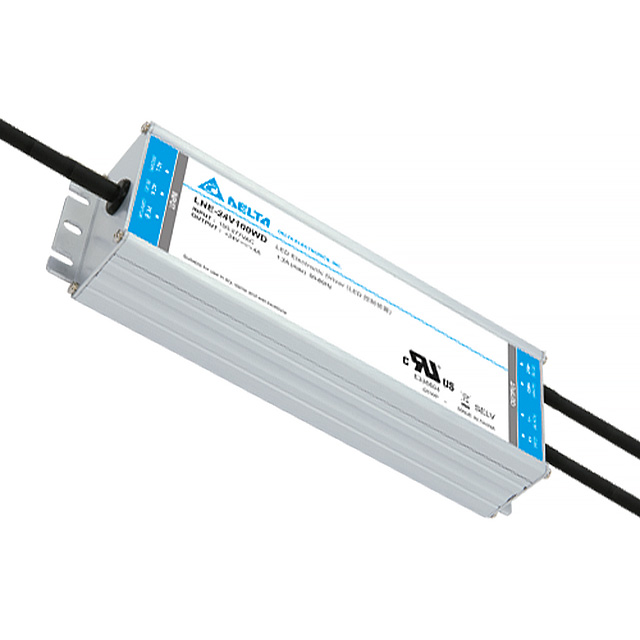

LNE-24V100WDAA

Obsolete

Delta Electronics

LED DRIVER CC/CV AC/DC 24V 4A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LNE-24V100WDAA

Approval Agency	UL
Current - Output (Max) [Max]	4 A
Dimming	Analog, PWM
Efficiency	93 %
Features	OTP, SCP, OVP, OCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	100 W
Ratings	IP67
Size / Dimension [x]	7.72 "
Size / Dimension [x]	196 mm
Size / Dimension [y]	2.68 "
Size / Dimension [y]	68 mm
Size / Dimension [z]	1.53 in
Size / Dimension [z]	38.8 mm
Standard Number	62384, 55015, 50581, 61000-3-3, 55024, 61347-1, 61347-2-13, 61000-3-2
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current, Voltage
Voltage - Input (Max) [Max]	305 VAC
Voltage - Input (Min) [Min]	90 VAC
Voltage - Isolation	3.85 kV
Voltage - Output [Max]	24 V
Voltage - Output [Min]	12 V
Weight	997.9 g
Weight	2.2 lbs

LNE-24 Series

Part	Type	Weight	Weight	Features	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Standard Number	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Power (Watts)	Topology	Mounting Type	Termination Style	Voltage - Input (Max) [Max]	Approval Agency	Ratings	Voltage - Output [Max]	Voltage - Output [Min]	Voltage - Isolation	Number of Outputs	Dimming	Size / Dimension [y]	Size / Dimension [z]
Delta Electronics LNE-24V100WAAA	Constant Current Voltage	997.9 g	2.2 lbs	OCP OTP OVP SCP	90 VAC	4 A	50581 55015 55024 61000-3-2 61000-3-3 61347-1 61347-2-13 62384	7.72 "	1.53 in	196 mm	38.8 mm	2.68 "	68 mm	-40 °C	70 °C	93 %	100 W	AC DC Converter	Chassis Mount	Wire Leads	305 VAC	UL	IP65	24 V	12 V	3.85 kV	1
Delta Electronics LNE-24V320WDAA	Constant Current Voltage			OCP OTP OVP SCP	90 VAC	13.4 A	50581 60950-1 8750	9.92 in	1.72 in	252 mm		3.54 in		-40 °C	70 °C	94 %	320 W	AC DC Converter	Chassis Mount	Wire Leads	305 VAC	UL	IP67	24 V	12 V	3.85 kV	1	Analog PWM	89.9 mm	43.7 mm
Delta Electronics LNE-24V150WAAA	Constant Current Voltage	1.1 kg	2.4 lbs	OCP OTP OVP SCP	90 VAC	6.3 A	50581 60950-1 8750	8.03 "	1.53 in	204 mm	38.8 mm	2.68 "	68 mm	-40 °C	70 °C	93 %	150 W	AC DC Converter	Chassis Mount	Wire Leads	305 VAC	UL	IP65	24 V	12 V	3.85 kV	1
Delta Electronics LNE-24V100WDAA	Constant Current Voltage	997.9 g	2.2 lbs	OCP OTP OVP SCP	90 VAC	4 A	50581 55015 55024 61000-3-2 61000-3-3 61347-1 61347-2-13 62384	7.72 "	1.53 in	196 mm	38.8 mm	2.68 "	68 mm	-40 °C	70 °C	93 %	100 W	AC DC Converter	Chassis Mount	Wire Leads	305 VAC	UL	IP67	24 V	12 V	3.85 kV	1	Analog PWM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

LNE-24 Series

4A 12 ~ 24V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
