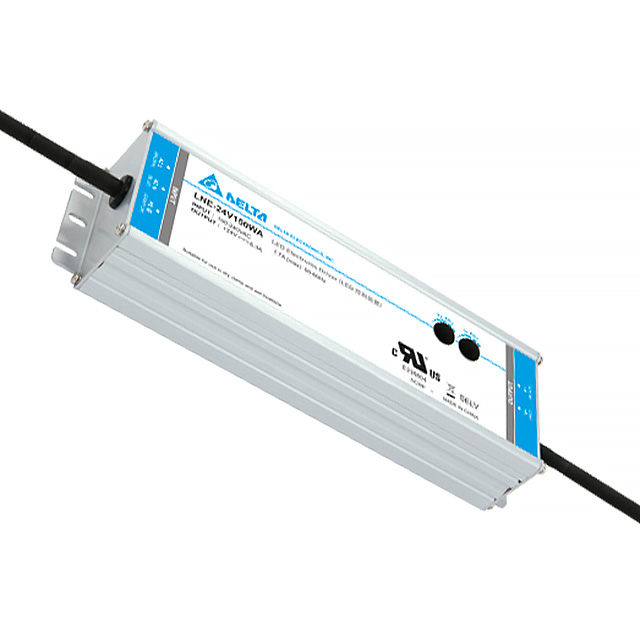

LNE-24V150WAAA
ObsoleteDelta Electronics
LED DRIVER CC/CV AC/DC 24V 6.3A
Deep-Dive with AI
Search across all available documentation for this part.
LNE-24V150WAAA
ObsoleteDelta Electronics
LED DRIVER CC/CV AC/DC 24V 6.3A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LNE-24V150WAAA |
|---|---|
| Approval Agency | UL |
| Current - Output (Max) [Max] | 6.3 A |
| Efficiency | 93 % |
| Features | OTP, SCP, OVP, OCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 150 W |
| Ratings | IP65 |
| Size / Dimension [x] | 8.03 " |
| Size / Dimension [x] | 204 mm |
| Size / Dimension [y] | 68 mm |
| Size / Dimension [y] | 2.68 " |
| Size / Dimension [z] | 38.8 mm |
| Size / Dimension [z] | 1.53 in |
| Standard Number | 60950-1, 50581, 8750 |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current, Voltage |
| Voltage - Input (Max) [Max] | 305 VAC |
| Voltage - Input (Min) [Min] | 90 VAC |
| Voltage - Isolation | 3.85 kV |
| Voltage - Output [Max] | 24 V |
| Voltage - Output [Min] | 12 V |
| Weight | 2.4 lbs |
| Weight | 1.1 kg |
LNE-24 Series
| Part | Type | Weight | Weight | Features | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Standard Number | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Operating Temperature [Min] | Operating Temperature [Max] | Efficiency | Power (Watts) | Topology | Mounting Type | Termination Style | Voltage - Input (Max) [Max] | Approval Agency | Ratings | Voltage - Output [Max] | Voltage - Output [Min] | Voltage - Isolation | Number of Outputs | Dimming | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics | Constant Current Voltage | 997.9 g | 2.2 lbs | OCP OTP OVP SCP | 90 VAC | 4 A | 50581 55015 55024 61000-3-2 61000-3-3 61347-1 61347-2-13 62384 | 7.72 " | 1.53 in | 196 mm | 38.8 mm | 2.68 " | 68 mm | -40 °C | 70 °C | 93 % | 100 W | AC DC Converter | Chassis Mount | Wire Leads | 305 VAC | UL | IP65 | 24 V | 12 V | 3.85 kV | 1 | |||
Delta Electronics | Constant Current Voltage | OCP OTP OVP SCP | 90 VAC | 13.4 A | 50581 60950-1 8750 | 9.92 in | 1.72 in | 252 mm | 3.54 in | -40 °C | 70 °C | 94 % | 320 W | AC DC Converter | Chassis Mount | Wire Leads | 305 VAC | UL | IP67 | 24 V | 12 V | 3.85 kV | 1 | Analog PWM | 89.9 mm | 43.7 mm | ||||
Delta Electronics | Constant Current Voltage | 1.1 kg | 2.4 lbs | OCP OTP OVP SCP | 90 VAC | 6.3 A | 50581 60950-1 8750 | 8.03 " | 1.53 in | 204 mm | 38.8 mm | 2.68 " | 68 mm | -40 °C | 70 °C | 93 % | 150 W | AC DC Converter | Chassis Mount | Wire Leads | 305 VAC | UL | IP65 | 24 V | 12 V | 3.85 kV | 1 | |||
Delta Electronics | Constant Current Voltage | 997.9 g | 2.2 lbs | OCP OTP OVP SCP | 90 VAC | 4 A | 50581 55015 55024 61000-3-2 61000-3-3 61347-1 61347-2-13 62384 | 7.72 " | 1.53 in | 196 mm | 38.8 mm | 2.68 " | 68 mm | -40 °C | 70 °C | 93 % | 100 W | AC DC Converter | Chassis Mount | Wire Leads | 305 VAC | UL | IP67 | 24 V | 12 V | 3.85 kV | 1 | Analog PWM |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LNE-24 Series
6.3A 12 ~ 24V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
