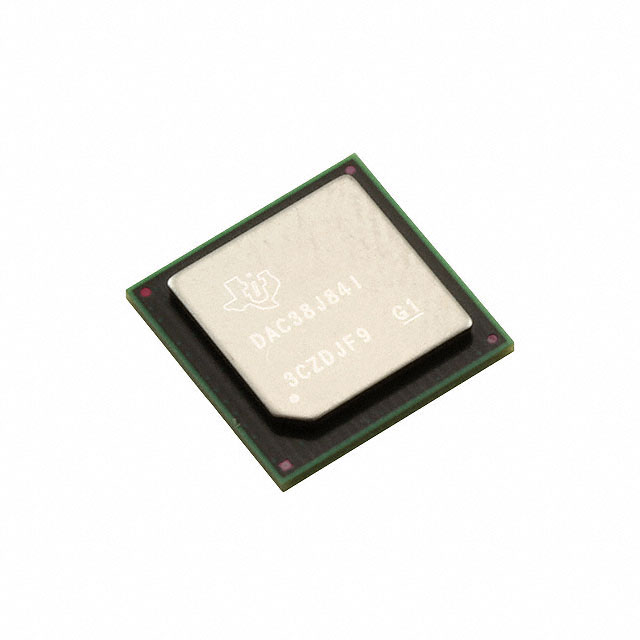

DAC38J84IAAV

Active

Texas Instruments

QUAD-CHANNEL, 16-BIT, 2.5-GSPS, 1X-16X INTERPOLATING DIGITAL-TO-ANALOG CONVERTER (DAC)

Find alt

Alpha

DAC38J84IAAV

Active

Texas Instruments

QUAD-CHANNEL, 16-BIT, 2.5-GSPS, 1X-16X INTERPOLATING DIGITAL-TO-ANALOG CONVERTER (DAC)

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

DAC38J84 Series

The terminal-compatible DAC37J84/DAC38J84 family is a low power, 16-bit, quad-channel, 1.6/2.5 GSPS digital to analog converter (DAC) with JESD204B interface.

Digital data is input to the device through 1, 2, 4 or 8 configurable serial JESD204B lanes running up to 12.5 Gbps with on-chip termination and programmable equalization. The interface allows JESD204B Subclass 1 SYSREF based deterministic latency and full synchronization of multiple devices.

The device includes features that simplify the design of complex transmit architectures. Fully bypassable 2x to 16x digital interpolation filters with over 90 dB of stop-band attenuation simplify the data interface and reconstruction filters. An on-chip 48-bit Numerically Controlled Oscillator (NCO) and independent complex mixers allow flexible and accurate carrier placement.

Technical Specifications

Parameters and characteristics for this part

Specification	DAC38J84IAAV

Architecture	Current Source
Data Interface	JESD204B
Differential Output	Yes
DNL (LSB) Tolerance	4 LSB
INL (LSB) Tolerance	6 LSB
Mounting Type	Surface Mount
Number of Bits	16 bits
Number of D/A Converters	4 count
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Output Type	Current - Unbuffered
Package / Case	FCBGA, 144-FBGA
Package Length	10 mm
Package Name	144-FCBGA
Package Width	10 mm
Reference Type	External, Internal
Settling Time (Typical)	10 ns
Voltage - Supply, Analog (Max)	3.45 V
Voltage - Supply, Analog (Min)	3.15 V
Voltage - Supply, Digital (Max)	0.95 V
Voltage - Supply, Digital (Min)	0.85 V

DAC38J84 Series

Part	Number of Bits	Number of D/A Converters	Package / Case	Voltage - Supply, Digital (Max)	Voltage - Supply, Digital (Min)	Voltage - Supply, Analog (Max)	Voltage - Supply, Analog (Min)	INL (LSB) Tolerance	DNL (LSB) Tolerance	Output Type	Architecture	Differential Output	Data Interface	Mounting Type	Reference Type	Settling Time (Typical)	Package Length	Package Name	Package Width	Operating Temperature (Min)	Operating Temperature (Max)
Texas Instruments DAC38J84IAAVR	16 bits	4 count	144-FBGA FCBGA	0.95 V	0.85 V	3.45 V	3.15 V	6 LSB	4 LSB	Current - Unbuffered	Current Source	Yes	JESD204B	Surface Mount	External Internal	10 ns	10 mm	144-FCBGA	10 mm	-40 °C	85 °C
Texas Instruments DAC38J84IAAV	16 bits	4 count	144-FBGA FCBGA	0.95 V	0.85 V	3.45 V	3.15 V	6 LSB	4 LSB	Current - Unbuffered	Current Source	Yes	JESD204B	Surface Mount	External Internal	10 ns	10 mm	144-FCBGA	10 mm	-40 °C	85 °C
