DAC38J84 Series
Manufacturer: Texas Instruments
Beta
⌘K

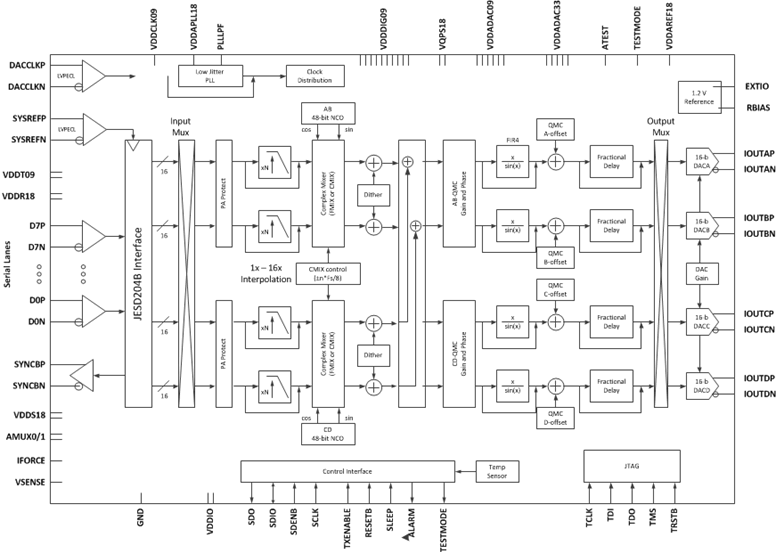

QUAD-CHANNEL, 16-BIT, 2.5-GSPS, 1X-16X INTERPOLATING DIGITAL-TO-ANALOG CONVERTER (DAC)
| Part | Number of Bits | Number of D/A Converters | Package / Case | Voltage - Supply, Digital (Max) | Voltage - Supply, Digital (Min) | Voltage - Supply, Analog (Max) | Voltage - Supply, Analog (Min) | INL (LSB) Tolerance | DNL (LSB) Tolerance | Output Type | Architecture | Differential Output | Data Interface | Mounting Type | Reference Type | Settling Time (Typical) | Package Length | Package Name | Package Width | Operating Temperature (Min) | Operating Temperature (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 16 bits | 4 count | 144-FBGA FCBGA | 0.95 V | 0.85 V | 3.45 V | 3.15 V | 6 LSB | 4 LSB | Current - Unbuffered | Current Source | Yes | JESD204B | Surface Mount | External Internal | 10 ns | 10 mm | 144-FCBGA | 10 mm | -40 °C | 85 °C |
 Texas Instruments | 16 bits | 4 count | 144-FBGA FCBGA | 0.95 V | 0.85 V | 3.45 V | 3.15 V | 6 LSB | 4 LSB | Current - Unbuffered | Current Source | Yes | JESD204B | Surface Mount | External Internal | 10 ns | 10 mm | 144-FCBGA | 10 mm | -40 °C | 85 °C |
