29-211-11
ActiveTE Connectivity Raychem Cable Protection

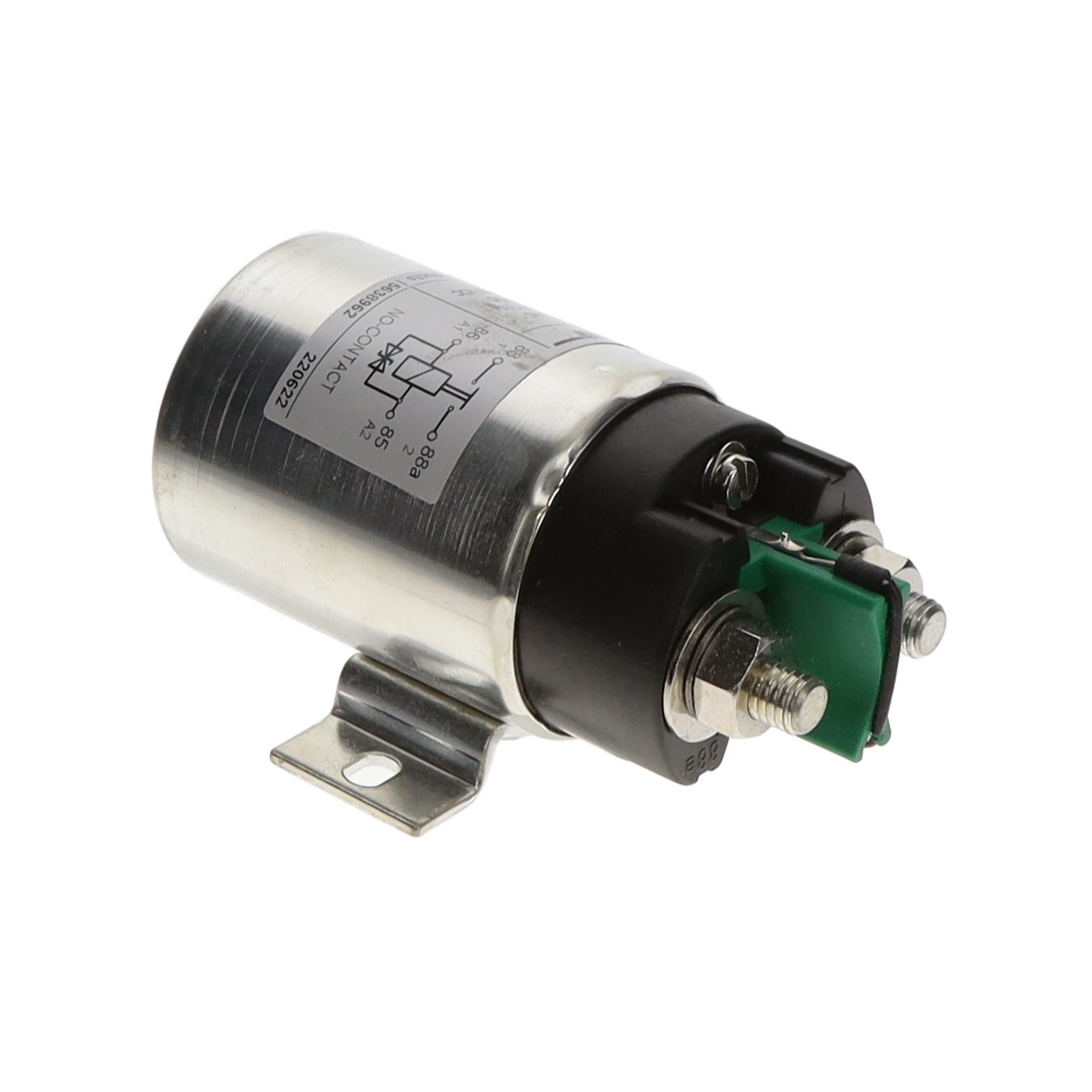

RELAY GEN PURPOSE SPST 220A 12V
Deep-Dive with AI
Search across all available documentation for this part.
29-211-11
ActiveTE Connectivity Raychem Cable Protection
RELAY GEN PURPOSE SPST 220A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 29-211-11 |
|---|---|
| Coil Current | 800 mA |
| Coil Resistance | 15 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (DM) (1 Form X) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 220 A |
| Features | Diode |
| Load - Max Switching | 10 W |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 2 VDC |
| Operate Time | 40 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 197.62 | |
| 10 | $ 172.62 | |||
| 25 | $ 163.58 | |||
| 50 | $ 157.05 | |||
Description
General part information
KISSLING Series 29 Series
General Purpose Power Relay, DC, Monostable, 1 Form X SPST-NO-DM, 200 A Contact Rating, 16 VDC / 9 VDC Coil Voltage, KISSLING Series 29
