29-321-12B
ActiveTE Connectivity Raychem Cable Protection

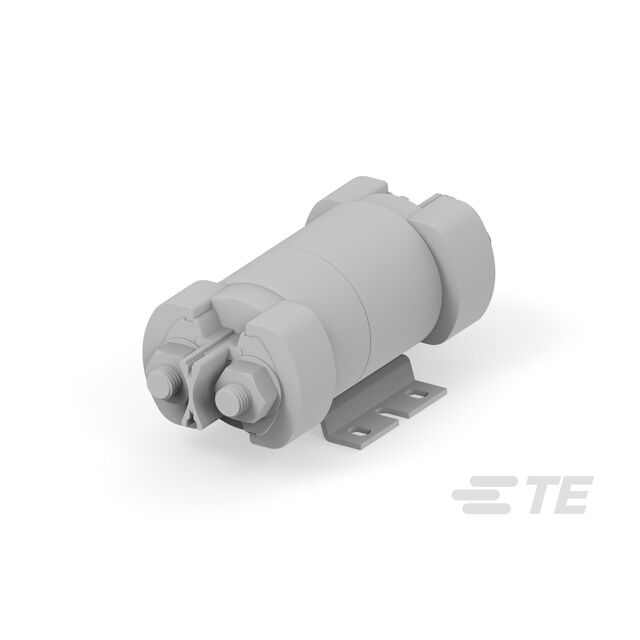

RELAY 29-321-12B
Deep-Dive with AI
Search across all available documentation for this part.
29-321-12B
ActiveTE Connectivity Raychem Cable Protection
RELAY 29-321-12B
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 29-321-12B |
|---|---|
| Coil Current | 400 mA |
| Coil Resistance | 62 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 300 A |
| Features | Magnetic Blowout, Diode |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 4 VDC |
| Operate Time | 40 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 329.70 | |
Description
General part information
KISSLING Series 29 Series
General Purpose Power Relay, DC, Monostable, 1A (NO) + 1B (NC), 300 A Contact Rating, 18 VDC / 32 VDC Coil Voltage, KISSLING Series 29
