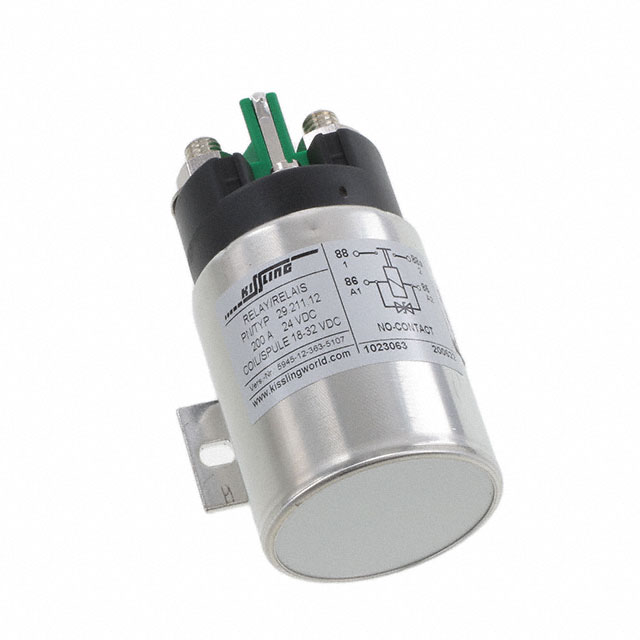

29-211-12

Active

TE Connectivity Raychem Cable Protection

RELAY GEN PURPOSE SPST 220A 28V

Deep-Dive with AI

Search across all available documentation for this part.

29-211-12

Active

TE Connectivity Raychem Cable Protection

RELAY GEN PURPOSE SPST 220A 28V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	29-211-12

Coil Current	451.6 mA
Coil Resistance	62 Ohms
Coil Type	Non Latching
Coil Voltage	28 VDC
Contact Form	SPST-NO (DM) (1 Form X)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	220 A
Features	Diode
Load - Max Switching	10 W
Mounting Type	Chassis Mount
Must Operate Voltage	18 VDC
Must Release Voltage	4 VDC
Operate Time	40 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	20 ms
Termination Style	Screw Terminal

KISSLING Series 29 Series

Part	Coil Type	Coil Current	Must Release Voltage	Mounting Type	Must Operate Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating (Current)	Coil Voltage	Contact Material	Contact Form	Relay Type	Operate Time	Release Time	Features	Load - Max Switching	Termination Style	Coil Resistance
TE Connectivity Raychem Cable Protection 29-113-12	Non Latching	350 mA	4 VDC	Chassis Mount	18 VDC	85 °C	-40 °C	120 A	28 VDC	Silver Tin Oxide (AgSnO)	SPST-NO (DM) (1 Form X)	General Purpose	35 ms	15 ms	Diode	10 W	Screw Terminal	80 Ohms
TE Connectivity Raychem Cable Protection 29-211-12	Non Latching	451.6 mA	4 VDC	Chassis Mount	18 VDC	85 °C	-40 °C	220 A	28 VDC	Silver Tin Oxide (AgSnO)	SPST-NO (DM) (1 Form X)	General Purpose	40 ms	20 ms	Diode	10 W	Screw Terminal	62 Ohms
TE Connectivity Raychem Cable Protection 29-111-11	Non Latching	600 mA	2 VDC	Chassis Mount	9 VDC	85 °C	-40 °C	120 A	12 VDC	Silver Tin Oxide (AgSnO)	SPST-NO (DM) (1 Form X)	General Purpose	35 ms	15 ms	Diode		Screw Terminal	20 Ohms
TE Connectivity Raychem Cable Protection 29-211-11	Non Latching	800 mA	2 VDC	Chassis Mount	9 VDC	85 °C	-40 °C	220 A	12 VDC	Silver Tin Oxide (AgSnO)	SPST-NO (DM) (1 Form X)	General Purpose	40 ms	20 ms	Diode	10 W	Screw Terminal	15 Ohms
TE Connectivity Raychem Cable Protection 29-111-12	Non Latching	350 mA	4 VDC	Chassis Mount	18 VDC	85 °C	-40 °C	120 A	28 VDC	Silver Tin Oxide (AgSnO)	SPST-NO (DM) (1 Form X)	General Purpose	35 ms	15 ms	Diode	10 W	Screw Terminal	80 Ohms
TE Connectivity Raychem Cable Protection 29-321-12B	Non Latching	400 mA	4 VDC	Chassis Mount	18 VDC	85 °C	-40 °C	300 A	24 VDC	Silver Tin Oxide (AgSnO)	SPDT (1 Form C)	General Purpose	40 ms	20 ms	Diode Magnetic Blowout		Screw Terminal	62 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 201.81
		10	$ 176.29
		25	$ 167.05
		50	$ 160.39

Description

General part information

KISSLING Series 29 Series

General Purpose Relay SPST-NO (DM) (1 Form X) 28VDC Coil Chassis Mount
