8451 0081000

Active

Belden Inc.

MULTIPAIR CABLE, AUDIO, SHIELDED, 1 PAIR, 22 AWG, 1000 FT, 304.8 M

Find alt

Alpha

8451 0081000

Active

Belden Inc.

MULTIPAIR CABLE, AUDIO, SHIELDED, 1 PAIR, 22 AWG, 1000 FT, 304.8 M

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

8451 Series

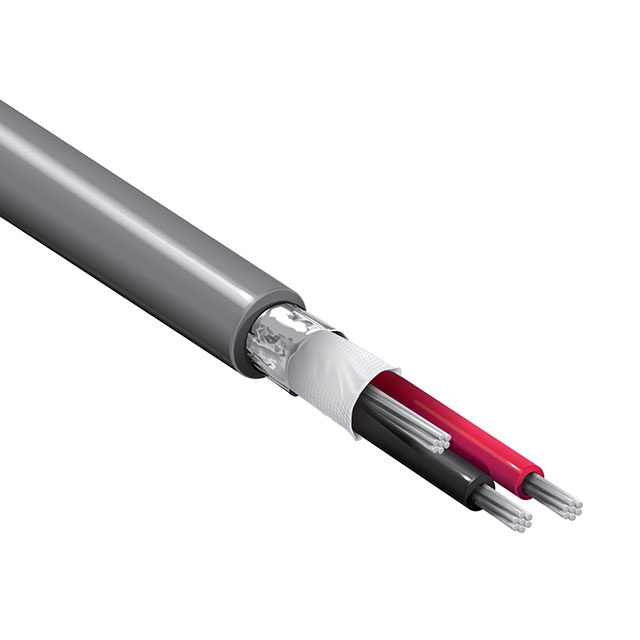

The 8451 0081000 is a 1-pair 1000ft Shielded Cable with 22AWG stranded tinned copper conductors and polypropylene insulation. This twist pair paper wrap multi-conductor cable comes with a Beldfoil® aluminum foil-polyester tape shield (100% coverage), 22AWG stranded tinned copper drain wire and gray PVC jacket. Belden multi-conductor cable delivers low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.

Technical Specifications

Parameters and characteristics for this part

Specification	8451 0081000

Cable Type	Conductor, Multi
Conductor Arrangement	Twisted
Conductor Insulation	Polypropylene (PP)
Conductor Material	Tinned, Copper
Conductor Strand Count	7 Strands
Conductor Strand Gauge	30
Features	Drain Wire
Jacket (Insulation) Diameter	0.138 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	1000 ft
Number of Conductors	2
Number of Conductors - Pair	1
Operating Temperature (Max)	75 °C
Operating Temperature (Min)	-20 °C
Ratings	UL, CMR, Style
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Wire Gauge	22 AWG

8451 Series

Part	Shield Coverage	Shield Material	Conductor Insulation	Jacket (Insulation) Diameter	Wire Gauge	Jacket Color	Ratings	Features	Conductor Strand Gauge	Conductor Strand Count	Shield Type	Conductor Material	Cable Type	Operating Temperature (Min)	Operating Temperature (Max)	Number of Conductors	Conductor Arrangement	Number of Conductors - Pair	Jacket (Insulation) Material	Length	Jacket (Insulation) Thickness	Voltage	Usage
Belden Inc. 8451 010500	100 %	Aluminum	Polypropylene (PP)	0.138 in	22 AWG	Black	CMR Style UL	Drain Wire	30	7 Strands	Foil	Copper Tinned	Conductor Multi	-20 °C	75 °C	2	Twisted	1	Poly-Vinyl Chloride (PVC)	500 ft
Belden Inc. 8451 01015000	100 %	Aluminum Polyester	Polypropylene (PP)	0.138 in	22 AWG	Black	CMR Style UL	Drain Wire	30	7 Strands	Foil	Copper Tinned	Conductor Multi	-20 °C	75 °C	2	Twisted	1	Poly-Vinyl Chloride (PVC)	5000 ft	0.02 in	300 V	Audio Instrumentation
Belden Inc. 8451 008U1000	100 %	Aluminum Polyester	Polypropylene (PP)	0.138 in	22 AWG	Gray	CMR Style UL	Drain Wire	30	7 Strands	Foil	Copper Tinned	Conductor Multi	-20 °C	75 °C	2	Twisted	1	Poly-Vinyl Chloride (PVC)	1000 ft	0.02 in	300 V	Audio Instrumentation
Belden Inc. 8451 0081000	100 %	Aluminum	Polypropylene (PP)	0.138 in	22 AWG	Gray	CMR Style UL	Drain Wire	30	7 Strands	Foil	Copper Tinned	Conductor Multi	-20 °C	75 °C	2	Twisted	1	Poly-Vinyl Chloride (PVC)	1000 ft
Belden Inc. 8451 010100	100 %	Aluminum	Polypropylene (PP)	0.138 in	22 AWG	Black	CMR Style UL	Drain Wire	30	7 Strands	Foil	Copper Tinned	Conductor Multi	-20 °C	75 °C	2	Twisted	1	Poly-Vinyl Chloride (PVC)	100 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

8451 0081000 | Datasheet
