8451 008U1000
ActiveMULTIPAIR CABLE, AUDIO, SHIELDED, 1 PAIR, 22 AWG, 1000 FT, 304.8 M
Deep-Dive with AI
Search across all available documentation for this part.
8451 008U1000
ActiveMULTIPAIR CABLE, AUDIO, SHIELDED, 1 PAIR, 22 AWG, 1000 FT, 304.8 M
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8451 008U1000 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Polypropylene (PP) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 30 AWG |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.138 in |
| Jacket (Insulation) Diameter [diameter] | 3.5 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.02 in |
| Jacket (Insulation) Thickness | 0.508 mm |
| Jacket Color | Gray |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 2 |
| Ratings | UL Style CMR |
| Shield Coverage | 100 % |
| Shield Material | Polyester, Aluminum |
| Shield Type | Foil |
| Usage | Audio, Instrumentation |
| Voltage | 300 V |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
8451 Series

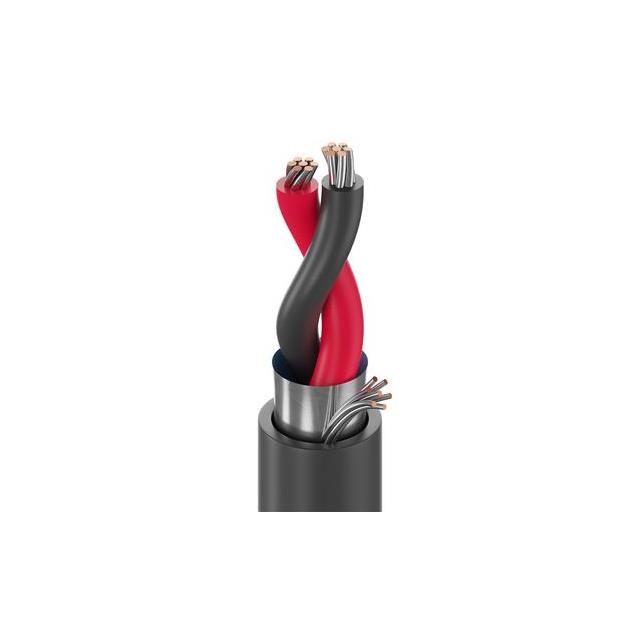

The 8451 008U1000 is a 1-pair 1000ft Shielded Cable with 22AWG stranded tinned copper conductors and polypropylene insulation. This twist pair paper wrap multi-conductor cable comes with a Beldfoil® aluminum foil-polyester tape shield (100% coverage), 22AWG stranded tinned copper drain wire and gray PVC jacket. Belden multi-conductor cable delivers low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.
