8451 010100

Active

Belden Inc.

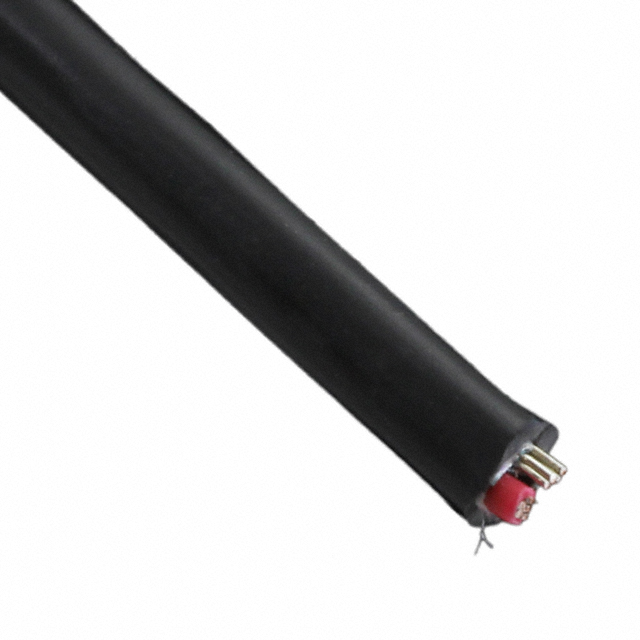

MULTIPAIR CABLE, AUDIO, SHIELDED, 1 PAIR, 22 AWG, 100 FT, 30.5 M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8451 010100

Active

Belden Inc.

MULTIPAIR CABLE, AUDIO, SHIELDED, 1 PAIR, 22 AWG, 100 FT, 30.5 M

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8451 010100

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.138 in
Jacket (Insulation) Diameter [diameter]	3.5 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	2
Ratings	UL Style CMR
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Wire Gauge	22 AWG

8451 Series

Part	Cable Type	Conductor Insulation	Shield Type	Features	Shield Coverage	Shield Material	Ratings	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Jacket (Insulation) Material	Wire Gauge	Conductor Material	Number of Conductors	Voltage	Usage	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness
Belden Inc. 8451 010500	Multi-Conductor	Polypropylene (PP)	Foil	Drain Wire	100 %	Aluminum	UL Style CMR	500 '	152.4 m	0.138 in	3.5 mm	7	30 AWG	Black	Poly-Vinyl Chloride (PVC)	22 AWG	Copper Tinned	2
Belden Inc. 8451 008U1000	Multi-Conductor	Polypropylene (PP)	Foil	Drain Wire	100 %	Aluminum Polyester	UL Style CMR			0.138 in	3.5 mm	7	30 AWG	Gray	Poly-Vinyl Chloride (PVC)	22 AWG	Copper Tinned	2	300 V	Audio Instrumentation	1000 ft	304.8 m	0.02 in	0.508 mm
Belden Inc. 8451 0081000	Multi-Conductor	Polypropylene (PP)	Foil	Drain Wire	100 %	Aluminum	UL Style CMR			0.138 in	3.5 mm	7	30 AWG	Gray	Poly-Vinyl Chloride (PVC)	22 AWG	Copper Tinned	2			1000 ft	304.8 m
Belden Inc. 8451 010100	Multi-Conductor	Polypropylene (PP)	Foil	Drain Wire	100 %	Aluminum	UL Style CMR	100 ft	30.5 m	0.138 in	3.5 mm	7	30 AWG	Black	Poly-Vinyl Chloride (PVC)	22 AWG	Copper Tinned	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 59.97
		3	$ 55.48
		5	$ 53.55
		7	$ 52.27
		10	$ 50.99
		25	$ 47.78
		50	$ 45.22
		100	$ 43.29
Newark	Spool of 100	1	$ 57.47
		5	$ 55.25
		10	$ 53.34

Description

General part information

8451 Series

The 8451 010100 is a 1-pair Multi-conductor Cable with tinned-copper conductors, polypropylene insulation, paper wrap, twisted pair and PVC jacket. This cable also features overall Beldfoil® shield (100% coverage).
