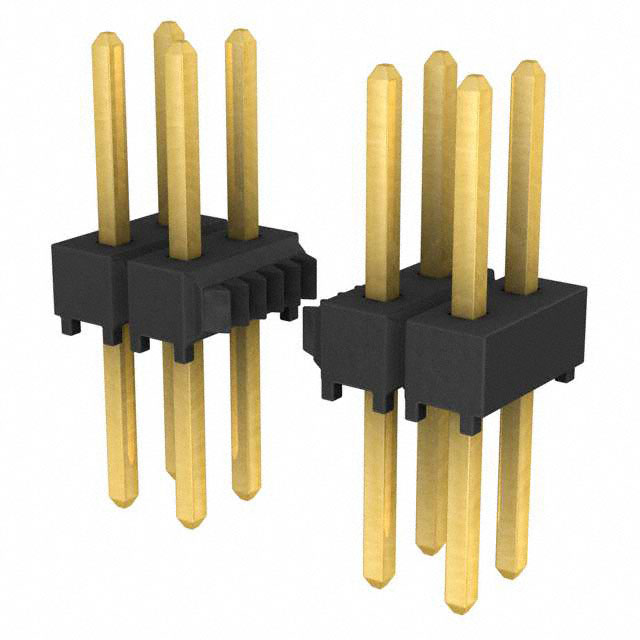

TSW-120-23-G-D

Active

Samtec Inc.

CONN HEADER VERT 40POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet TSW-108-07-L-D-008 Datasheet 02

TSW-120-23-G-D

Active

Samtec Inc.

CONN HEADER VERT 40POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet TSW-108-07-L-D-008 Datasheet 02

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TSW-120-23-G-D

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	2.92 mm
Contact Length - Post	0.115 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	11.3 mm
Overall Contact Length	0.445 "
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TSW-114 Series

Headers & Wire Housings Classic PCB Header Strips, 0.100" pitch

...

Part	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Insulation Color	Insulation Height	Insulation Height	Contact Length - Mating [x]	Contact Length - Mating	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Style	Shrouding	Contact Length - Post	Contact Length - Post	Number of Positions	Contact Finish - Mating	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Contact Material	Insulation Material	Termination	Number of Rows	Contact Finish - Post	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating [x]	Contact Length - Post [x]	Contact Length - Mating	Number of Positions Loaded	Contact Length - Post [x]
Samtec Inc. TSW-120-23-G-D	UL94 V-0	0.1 in	2.54 mm	Black	0.1 in	2.54 mm	0.23 in	5.84 mm	Through Hole	2.54 mm	0.1 in	Header	-55 °C	125 °C	Male Pin	Board to Board Cable	Unshrouded	2.92 mm	0.115 in	40	Gold	Push-Pull	10 çin	0.25 çm	Square	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Solder	2	Gold	All	11.3 mm	0.445 "	3 µin	0.076 µm
Samtec Inc. TSW-110-24-F-D	UL94 V-0	0.1 in	2.54 mm	Black	0.1 in	2.54 mm	0.265 in		Through Hole	2.54 mm	0.1 in	Header	-55 °C	125 °C	Male Pin	Board to Board Cable	Unshrouded	2.92 mm	0.115 in	20	Gold	Push-Pull	3 µin	0.076 µm	Square	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Solder	2	Tin	All	12.19 mm	0.48 in			6.73 mm
Samtec Inc. TSW-122-14-L-S	UL94 V-0	0.1 in	2.54 mm	Black	0.1 in	2.54 mm		8.13 mm	Through Hole			Header	-55 °C	125 °C	Male Pin	Board to Board Cable	Unshrouded	2.79 mm		22 positions	Gold	Push-Pull	10 çin	0.25 çm	Square	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Solder	1	Tin	All	13.46 mm	0.53 in				0.11 in	0.32 in
Samtec Inc. TSW-113-26-G-T
Samtec Inc. TSW-212-07-S-S
Samtec Inc. TSW-108-21-L-D
Samtec Inc. TSW-105-07-T-D-001	UL94 V-0	0.1 in	2.54 mm	Black	0.1 in	2.54 mm	0.23 in	5.84 mm	Through Hole	2.54 mm	0.1 in	Header	-55 °C	105 ░C	Male Pin	Board to Board Cable	Unshrouded	2.54 mm	0.1 in	10		Push-Pull			Square	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Solder	2	Tin		10.92 mm	0.43 in						9
Samtec Inc. TSW-104-06-G-D-LL	UL94 V-0	0.1 in	2.54 mm	Black	0.1 in	2.54 mm			Through Hole	2.54 mm	0.1 in	Header	-55 °C	125 °C	Male Pin	Board to Board Cable	Unshrouded			8	Gold	Push-Pull	10 çin	0.25 çm	Square	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Kinked Pin Solder	2	Gold	All	7.62 mm	0.3 in	3 µin	0.076 µm		0.095 in			2.41 mm
Samtec Inc. TSW-106-10-T-T-RA	UL94 V-0	0.1 in	2.54 mm	Black	0.32 in	8.13 mm	0.23 in	5.84 mm	Through Hole Right Angle	2.54 mm	0.1 in	Header	-55 °C	105 ░C	Male Pin	Board to Board Cable	Unshrouded	9.91 mm	0.39 in	18		Push-Pull			Square	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Solder	3	Tin	All
Samtec Inc. TSW-118-23-T-S-LL	UL94 V-0	0.1 in	2.54 mm	Black	0.1 in	2.54 mm	0.23 in	5.84 mm	Through Hole			Header	-55 °C	105 ░C	Male Pin	Board to Board Cable	Unshrouded	2.92 mm	0.115 in	18		Push-Pull			Square	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Kinked Pin Solder	1	Tin	All	11.3 mm	0.445 "
