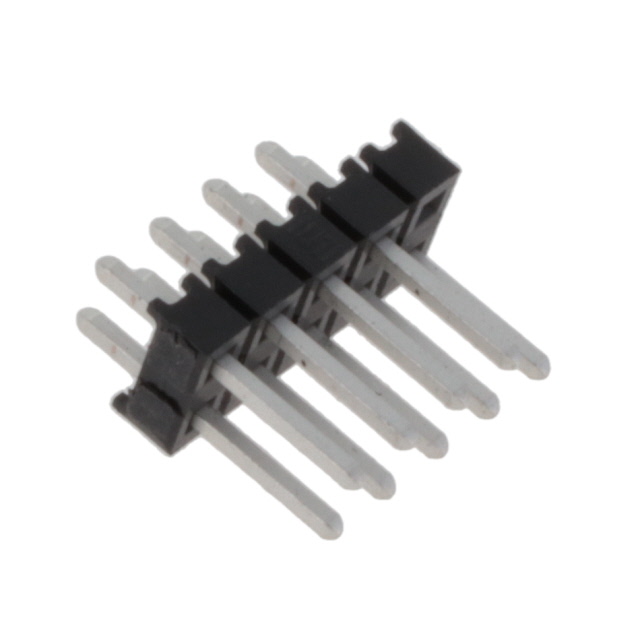

TSW-105-07-T-D-001 - TSW-105-07-T-D-001

TSW-105-07-T-D-001

Active
Samtec Inc.

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetTSW Series Other Related Documents 03+2
TSW-105-07-T-D-001 - TSW-105-07-T-D-001

TSW-105-07-T-D-001

Active
Samtec Inc.

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

DocumentsDatasheetTSW Series Other Related Documents 03+2

Technical Specifications

Parameters and characteristics for this part

SpecificationTSW-105-07-T-D-001
Connector TypeHeader
Contact Finish - PostTin
Contact Length - Mating5.84 mm
Contact Length - Mating [x]0.23 in
Contact Length - Post2.54 mm
Contact Length - Post0.1 in
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeMale Pin
Fastening TypePush-Pull
Insulation ColorBlack
Insulation Height0.1 in
Insulation Height2.54 mm
Insulation MaterialPolybutylene Terephthalate (PBT)
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions10
Number of Positions Loaded9
Number of Rows2
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 °C
Overall Contact Length0.43 in
Overall Contact Length10.92 mm
Pitch - Mating0.1 in
Pitch - Mating2.54 mm
Row Spacing - Mating [x]2.54 mm
Row Spacing - Mating [x]0.1 in
ShroudingUnshrouded
StyleBoard to Board, Cable
TerminationSolder

TSW-114 Series

Headers & Wire Housings Classic PCB Header Strips, 0.100" pitch

...
PartMaterial Flammability RatingPitch - MatingPitch - MatingInsulation ColorInsulation HeightInsulation HeightContact Length - Mating [x]Contact Length - MatingMounting TypeRow Spacing - Mating [x]Row Spacing - Mating [x]Connector TypeOperating Temperature [Min]Operating Temperature [Max]Contact TypeStyleShroudingContact Length - PostContact Length - PostNumber of PositionsContact Finish - MatingFastening TypeContact Finish Thickness - MatingContact Finish Thickness - MatingContact ShapeContact MaterialInsulation MaterialTerminationNumber of RowsContact Finish - PostNumber of Positions LoadedOverall Contact LengthOverall Contact LengthContact Finish Thickness - PostContact Finish Thickness - PostContact Length - Mating [x]Contact Length - Post [x]Contact Length - MatingNumber of Positions LoadedContact Length - Post [x]
Samtec Inc.
TSW-120-23-G-D
UL94 V-0
0.1 in
2.54 mm
Black
0.1 in
2.54 mm
0.23 in
5.84 mm
Through Hole
2.54 mm
0.1 in
Header
-55 °C
125 °C
Male Pin
Board to Board
Cable
Unshrouded
2.92 mm
0.115 in
40
Gold
Push-Pull
10 çin
0.25 çm
Square
Phosphor Bronze
Polybutylene Terephthalate (PBT)
Solder
2
Gold
All
11.3 mm
0.445 "
3 µin
0.076 µm
Samtec Inc.
TSW-110-24-F-D
UL94 V-0
0.1 in
2.54 mm
Black
0.1 in
2.54 mm
0.265 in
Through Hole
2.54 mm
0.1 in
Header
-55 °C
125 °C
Male Pin
Board to Board
Cable
Unshrouded
2.92 mm
0.115 in
20
Gold
Push-Pull
3 µin
0.076 µm
Square
Phosphor Bronze
Polybutylene Terephthalate (PBT)
Solder
2
Tin
All
12.19 mm
0.48 in
6.73 mm
Samtec Inc.
TSW-122-14-L-S
UL94 V-0
0.1 in
2.54 mm
Black
0.1 in
2.54 mm
8.13 mm
Through Hole
Header
-55 °C
125 °C
Male Pin
Board to Board
Cable
Unshrouded
2.79 mm
22 positions
Gold
Push-Pull
10 çin
0.25 çm
Square
Phosphor Bronze
Polybutylene Terephthalate (PBT)
Solder
1
Tin
All
13.46 mm
0.53 in
0.11 in
0.32 in
Samtec Inc.
TSW-113-26-G-T
Samtec Inc.
TSW-212-07-S-S
Samtec Inc.
TSW-108-21-L-D
Samtec Inc.
TSW-105-07-T-D-001
UL94 V-0
0.1 in
2.54 mm
Black
0.1 in
2.54 mm
0.23 in
5.84 mm
Through Hole
2.54 mm
0.1 in
Header
-55 °C
105 ░C
Male Pin
Board to Board
Cable
Unshrouded
2.54 mm
0.1 in
10
Push-Pull
Square
Phosphor Bronze
Polybutylene Terephthalate (PBT)
Solder
2
Tin
10.92 mm
0.43 in
9
Samtec Inc.
TSW-104-06-G-D-LL
UL94 V-0
0.1 in
2.54 mm
Black
0.1 in
2.54 mm
Through Hole
2.54 mm
0.1 in
Header
-55 °C
125 °C
Male Pin
Board to Board
Cable
Unshrouded
8
Gold
Push-Pull
10 çin
0.25 çm
Square
Phosphor Bronze
Polybutylene Terephthalate (PBT)
Kinked Pin
Solder
2
Gold
All
7.62 mm
0.3 in
3 µin
0.076 µm
0.095 in
2.41 mm
Samtec Inc.
TSW-106-10-T-T-RA
UL94 V-0
0.1 in
2.54 mm
Black
0.32 in
8.13 mm
0.23 in
5.84 mm
Through Hole
Right Angle
2.54 mm
0.1 in
Header
-55 °C
105 ░C
Male Pin
Board to Board
Cable
Unshrouded
9.91 mm
0.39 in
18
Push-Pull
Square
Phosphor Bronze
Polybutylene Terephthalate (PBT)
Solder
3
Tin
All
Samtec Inc.
TSW-118-23-T-S-LL
UL94 V-0
0.1 in
2.54 mm
Black
0.1 in
2.54 mm
0.23 in
5.84 mm
Through Hole
Header
-55 °C
105 ░C
Male Pin
Board to Board
Cable
Unshrouded
2.92 mm
0.115 in
18
Push-Pull
Square
Phosphor Bronze
Polybutylene Terephthalate (PBT)
Kinked Pin
Solder
1
Tin
All
11.3 mm
0.445 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 1.10
50$ 0.85
100$ 0.69
500$ 0.59
1000$ 0.56

Description

General part information

TSW-114 Series

Headers & Wire Housings Classic PCB Header Strips, 0.100" pitch
