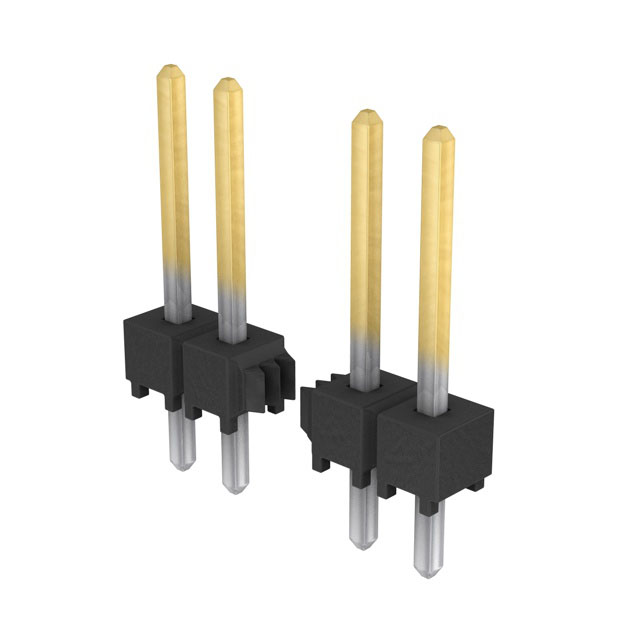

TSW-122-14-L-S
ActiveSamtec Inc.
CONN HEADER VERT 22POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
TSW-122-14-L-S
ActiveSamtec Inc.
CONN HEADER VERT 22POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TSW-122-14-L-S |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Length - Mating | 8.13 mm |
| Contact Length - Mating | 0.32 in |
| Contact Length - Post | 2.79 mm |
| Contact Length - Post [x] | 0.11 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.1 in |
| Insulation Height | 2.54 mm |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 22 positions |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Overall Contact Length | 13.46 mm |
| Overall Contact Length | 0.53 in |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
TSW-114 Series
Headers & Wire Housings Classic PCB Header Strips, 0.100" pitch
...
| Part | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Insulation Color | Insulation Height | Insulation Height | Contact Length - Mating [x] | Contact Length - Mating | Mounting Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Style | Shrouding | Contact Length - Post | Contact Length - Post | Number of Positions | Contact Finish - Mating | Fastening Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Shape | Contact Material | Insulation Material | Termination | Number of Rows | Contact Finish - Post | Number of Positions Loaded | Overall Contact Length | Overall Contact Length | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Length - Mating [x] | Contact Length - Post [x] | Contact Length - Mating | Number of Positions Loaded | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | UL94 V-0 | 0.1 in | 2.54 mm | Black | 0.1 in | 2.54 mm | 0.23 in | 5.84 mm | Through Hole | 2.54 mm | 0.1 in | Header | -55 °C | 125 °C | Male Pin | Board to Board Cable | Unshrouded | 2.92 mm | 0.115 in | 40 | Gold | Push-Pull | 10 çin | 0.25 çm | Square | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Solder | 2 | Gold | All | 11.3 mm | 0.445 " | 3 µin | 0.076 µm | |||||
Samtec Inc. | UL94 V-0 | 0.1 in | 2.54 mm | Black | 0.1 in | 2.54 mm | 0.265 in | Through Hole | 2.54 mm | 0.1 in | Header | -55 °C | 125 °C | Male Pin | Board to Board Cable | Unshrouded | 2.92 mm | 0.115 in | 20 | Gold | Push-Pull | 3 µin | 0.076 µm | Square | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Solder | 2 | Tin | All | 12.19 mm | 0.48 in | 6.73 mm | |||||||
Samtec Inc. | UL94 V-0 | 0.1 in | 2.54 mm | Black | 0.1 in | 2.54 mm | 8.13 mm | Through Hole | Header | -55 °C | 125 °C | Male Pin | Board to Board Cable | Unshrouded | 2.79 mm | 22 positions | Gold | Push-Pull | 10 çin | 0.25 çm | Square | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Solder | 1 | Tin | All | 13.46 mm | 0.53 in | 0.11 in | 0.32 in | |||||||||
Samtec Inc. | ||||||||||||||||||||||||||||||||||||||||
Samtec Inc. | ||||||||||||||||||||||||||||||||||||||||
Samtec Inc. | ||||||||||||||||||||||||||||||||||||||||
Samtec Inc. | UL94 V-0 | 0.1 in | 2.54 mm | Black | 0.1 in | 2.54 mm | 0.23 in | 5.84 mm | Through Hole | 2.54 mm | 0.1 in | Header | -55 °C | 105 ░C | Male Pin | Board to Board Cable | Unshrouded | 2.54 mm | 0.1 in | 10 | Push-Pull | Square | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Solder | 2 | Tin | 10.92 mm | 0.43 in | 9 | ||||||||||
Samtec Inc. | UL94 V-0 | 0.1 in | 2.54 mm | Black | 0.1 in | 2.54 mm | Through Hole | 2.54 mm | 0.1 in | Header | -55 °C | 125 °C | Male Pin | Board to Board Cable | Unshrouded | 8 | Gold | Push-Pull | 10 çin | 0.25 çm | Square | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Kinked Pin Solder | 2 | Gold | All | 7.62 mm | 0.3 in | 3 µin | 0.076 µm | 0.095 in | 2.41 mm | |||||||
Samtec Inc. | UL94 V-0 | 0.1 in | 2.54 mm | Black | 0.32 in | 8.13 mm | 0.23 in | 5.84 mm | Through Hole Right Angle | 2.54 mm | 0.1 in | Header | -55 °C | 105 ░C | Male Pin | Board to Board Cable | Unshrouded | 9.91 mm | 0.39 in | 18 | Push-Pull | Square | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Solder | 3 | Tin | All | ||||||||||||
Samtec Inc. | UL94 V-0 | 0.1 in | 2.54 mm | Black | 0.1 in | 2.54 mm | 0.23 in | 5.84 mm | Through Hole | Header | -55 °C | 105 ░C | Male Pin | Board to Board Cable | Unshrouded | 2.92 mm | 0.115 in | 18 | Push-Pull | Square | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Kinked Pin Solder | 1 | Tin | All | 11.3 mm | 0.445 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.01 | |
| 10 | $ 1.75 | |||
| 100 | $ 1.56 | |||
| 500 | $ 1.30 | |||
| 1000 | $ 1.11 | |||
| 5000 | $ 0.99 | |||
| 10000 | $ 0.97 | |||
Description
General part information
TSW-114 Series
Headers & Wire Housings Classic PCB Header Strips, 0.100" pitch
