031-5637

Active

AMPHENOL RF

RF / COAXIAL CONNECTOR, BNC COAXIAL, RIGHT ANGLE BULKHEAD JACK, SOLDER, 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN

031-5637

Active

AMPHENOL RF

RF / COAXIAL CONNECTOR, BNC COAXIAL, RIGHT ANGLE BULKHEAD JACK, SOLDER, 50 OHM

Deep-Dive with AI

DocumentsDrawing EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 4.20
Digikey	Tray	1	$ 6.49
		10	$ 5.89
		25	$ 5.58
		40	$ 5.45
		100	$ 5.19
		300	$ 4.54
		500	$ 4.41
		1000	$ 3.77
		2400	$ 3.51
Newark	Each	1	$ 5.42
		5	$ 5.15
		10	$ 4.87
		25	$ 4.47
		50	$ 4.34
		100	$ 4.21
		250	$ 3.87

Description

General part information

031-56 Series

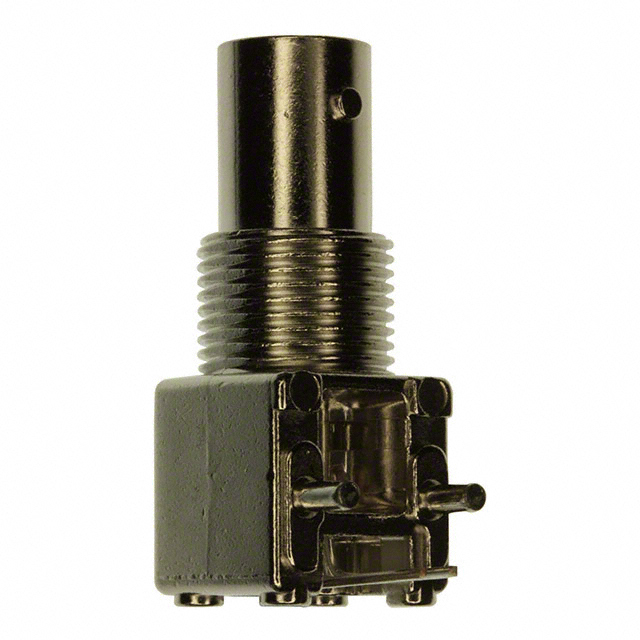

The 31-5637 is a BNC right angle Bulkhead PCB Jack with gold-plated phosphor bronze contacts. The jack is made of zinc die-cast with nickel plated finish and comes with a polypropylene insulator.
