031-5678

Active

AMPHENOL RF

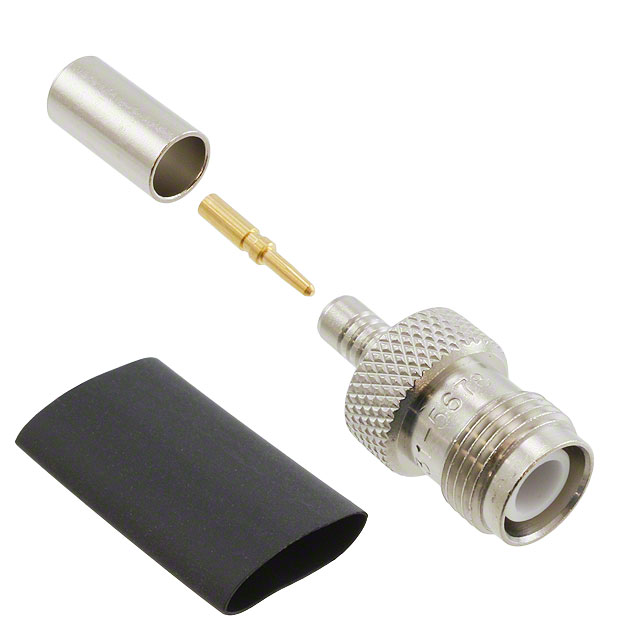

CONN RPTNC JACK STR 50 OHM CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

031-5678

Active

AMPHENOL RF

CONN RPTNC JACK STR 50 OHM CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	031-5678	031-56 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass, Zinc Die Cast
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58, LMR-400, Belden 9913, Belden 9914
Center Contact Material	Brass	Phosphor Bronze, Beryllium Copper, Brass
Center Contact Plating	Gold	Gold
Connector Style	RP-TNC	RP-TNC, TNC, BNC
Connector Type	Male Pin, Jack	Plug, Female Socket, Male Pin, Jack
Contact Termination	Solder, Crimp	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE), Polypropylene (PP)
Fastening Type	-	Bayonet Lock
Features	-	Board Guide
Frequency - Max [Max]	11 GHz	1 - 11 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Insertion Loss	-	0.2 dB
Mating Cycles	500	500
Mounting Feature	-	Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Right Angle, Through Hole, Panel Mount
Number of Ports	1	1
Operating Temperature [Max]	165 °C	85 - 165 °C
Operating Temperature [Min]	-65 ░C	-65 - -40 ░C
Shield Termination	Crimp	Crimp, Solder
Voltage Rating	500 V	500 V

031-56 Series

CONN TNC 0HZ TO 11GHZ 50OHM CRIMP ST CABLE MOUNT PL GOLD

Part	Housing Color	Shield Termination	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Number of Ports	Body Finish	Connector Type	Mating Cycles	Frequency - Max [Max]	Cable Group	Mounting Type	Impedance	Center Contact Plating	Connector Style	Voltage Rating	Body Material	Center Contact Material	Mounting Feature	Insertion Loss	Features	Fastening Type
AMPHENOL RF 031-5677	Silver	Crimp	Crimp, Solder	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	1	Nickel	Female Socket, Plug	500	11 GHz	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	Free Hanging (In-Line)	50 Ohms	Gold	RP-TNC	500 V	Brass	Phosphor Bronze
AMPHENOL RF 031-5680	Silver	Crimp	Solder	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	1	Nickel	Female Socket, Plug	500	11 GHz	Belden 9913, Belden 9914, LMR-400	Free Hanging (In-Line), Right Angle	50 Ohms	Gold	RP-TNC	500 V	Brass	Beryllium Copper
AMPHENOL RF 031-5678	Silver	Crimp	Crimp, Solder	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	1	Nickel	Jack, Male Pin	500	11 GHz	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	Free Hanging (In-Line)	50 Ohms	Gold	RP-TNC	500 V	Brass	Brass
AMPHENOL RF 031-5660	Silver	Solder	Solder	-40 °C	85 °C	Polytetrafluoroethylene (PTFE)	1	Nickel	Female Socket, Jack	500	11 GHz		Panel Mount, Right Angle, Through Hole	50 Ohms	Gold	TNC	500 V	Zinc Die Cast	Beryllium Copper	Bulkhead - Front Side Nut	0.2 dB
AMPHENOL RF 031-5684	Silver	Crimp	Crimp	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	1	Nickel	Jack, Male Pin	500	11 GHz	Belden 9913, Belden 9914, LMR-400	Free Hanging (In-Line)	50 Ohms	Gold	RP-TNC	500 V	Brass	Brass
AMPHENOL RF 031-5637	Silver	Solder	Solder	-55 °C	85 °C	Polypropylene (PP)	1	Nickel	Female Socket, Jack	500	4 GHz		Panel Mount, Right Angle, Through Hole	50 Ohms	Gold	BNC	500 V	Zinc Die Cast	Phosphor Bronze	Bulkhead - Front Side Nut	0.2 dB	Board Guide	Bayonet Lock
AMPHENOL RF 031-5633	Silver	Solder	Solder	-55 °C	85 °C	Polypropylene (PP)	1	Nickel	Female Socket, Jack	500	1 GHz		Panel Mount, Through Hole	50 Ohms	Gold	BNC	500 V	Zinc Die Cast	Phosphor Bronze	Bulkhead - Front Side Nut	0.2 dB		Bayonet Lock
AMPHENOL RF 031-5679	Silver	Crimp	Crimp	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	1	Nickel	Female Socket, Plug	500	11 GHz	Belden 9913, Belden 9914, LMR-400	Free Hanging (In-Line)	50 Ohms	Gold	RP-TNC	500 V	Brass	Beryllium Copper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.41
		10	$ 13.71

Description

General part information

031-56 Series

RP-TNC Connector Jack, Male Pin 50 Ohms Free Hanging (In-Line) Crimp or Solder
