031-5633

Active

AMPHENOL RF

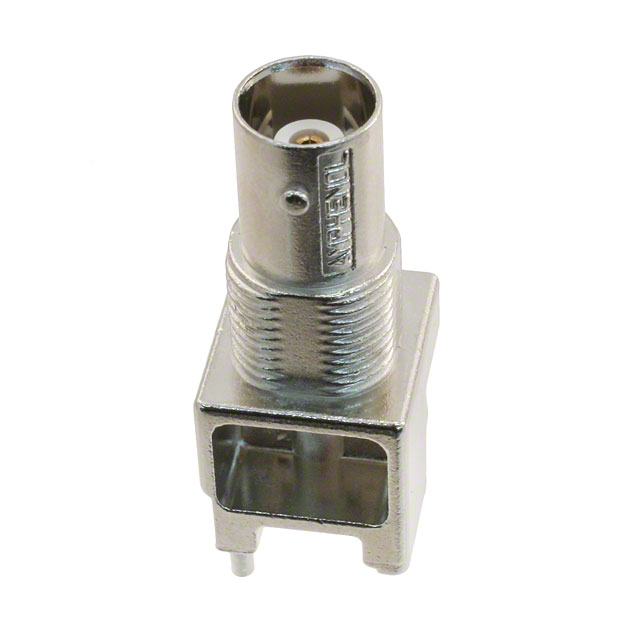

CONN BNC JACK STR 50 OHM PCB

Deep-Dive with AI

Search across all available documentation for this part.

031-5633

Active

AMPHENOL RF

CONN BNC JACK STR 50 OHM PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 8.73
		10	$ 7.89
		25	$ 7.45
		50	$ 7.27
		120	$ 6.91
		360	$ 6.18
		600	$ 5.82
		1080	$ 5.09

Description

General part information

031-56 Series

BNC Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole Solder

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	031-5633	031-56 Series

Body Finish	Nickel	Nickel
Body Material	Zinc Die Cast	Brass, Zinc Die Cast
Cable Group	-	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58, LMR-400, Belden 9913, Belden 9914
Center Contact Material	Phosphor Bronze	Phosphor Bronze, Beryllium Copper, Brass
Center Contact Plating	Gold	Gold
Connector Style	BNC	RP-TNC, TNC, BNC
Connector Type	Female Socket, Jack	Plug, Female Socket, Male Pin, Jack
Contact Termination	Solder	Solder, Crimp
Dielectric Material	Polypropylene (PP)	Polytetrafluoroethylene (PTFE), Polypropylene (PP)
Fastening Type	Bayonet Lock	Bayonet Lock
Features	-	Board Guide
Frequency - Max [Max]	1 GHz	1 - 11 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Insertion Loss	0.2 dB	0.2 dB
Mating Cycles	500	500
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Free Hanging (In-Line), Right Angle, Through Hole, Panel Mount
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 - 165 °C
Operating Temperature [Min]	-55 °C	-65 - -40 ░C
Shield Termination	Solder	Crimp, Solder
Voltage Rating	500 V	500 V

031-56 Series

CONN TNC 0HZ TO 11GHZ 50OHM CRIMP ST CABLE MOUNT PL GOLD

Part	Housing Color	Shield Termination	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Number of Ports	Body Finish	Connector Type	Mating Cycles	Frequency - Max [Max]	Cable Group	Mounting Type	Impedance	Center Contact Plating	Connector Style	Voltage Rating	Body Material	Center Contact Material	Mounting Feature	Insertion Loss	Features	Fastening Type
AMPHENOL RF 031-5677	Silver	Crimp	Crimp, Solder	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	1	Nickel	Female Socket, Plug	500	11 GHz	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	Free Hanging (In-Line)	50 Ohms	Gold	RP-TNC	500 V	Brass	Phosphor Bronze
AMPHENOL RF 031-5680	Silver	Crimp	Solder	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	1	Nickel	Female Socket, Plug	500	11 GHz	Belden 9913, Belden 9914, LMR-400	Free Hanging (In-Line), Right Angle	50 Ohms	Gold	RP-TNC	500 V	Brass	Beryllium Copper
AMPHENOL RF 031-5678	Silver	Crimp	Crimp, Solder	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	1	Nickel	Jack, Male Pin	500	11 GHz	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	Free Hanging (In-Line)	50 Ohms	Gold	RP-TNC	500 V	Brass	Brass
AMPHENOL RF 031-5660	Silver	Solder	Solder	-40 °C	85 °C	Polytetrafluoroethylene (PTFE)	1	Nickel	Female Socket, Jack	500	11 GHz		Panel Mount, Right Angle, Through Hole	50 Ohms	Gold	TNC	500 V	Zinc Die Cast	Beryllium Copper	Bulkhead - Front Side Nut	0.2 dB
AMPHENOL RF 031-5684	Silver	Crimp	Crimp	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	1	Nickel	Jack, Male Pin	500	11 GHz	Belden 9913, Belden 9914, LMR-400	Free Hanging (In-Line)	50 Ohms	Gold	RP-TNC	500 V	Brass	Brass
AMPHENOL RF 031-5637	Silver	Solder	Solder	-55 °C	85 °C	Polypropylene (PP)	1	Nickel	Female Socket, Jack	500	4 GHz		Panel Mount, Right Angle, Through Hole	50 Ohms	Gold	BNC	500 V	Zinc Die Cast	Phosphor Bronze	Bulkhead - Front Side Nut	0.2 dB	Board Guide	Bayonet Lock
AMPHENOL RF 031-5633	Silver	Solder	Solder	-55 °C	85 °C	Polypropylene (PP)	1	Nickel	Female Socket, Jack	500	1 GHz		Panel Mount, Through Hole	50 Ohms	Gold	BNC	500 V	Zinc Die Cast	Phosphor Bronze	Bulkhead - Front Side Nut	0.2 dB		Bayonet Lock
AMPHENOL RF 031-5679	Silver	Crimp	Crimp	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	1	Nickel	Female Socket, Plug	500	11 GHz	Belden 9913, Belden 9914, LMR-400	Free Hanging (In-Line)	50 Ohms	Gold	RP-TNC	500 V	Brass	Beryllium Copper
