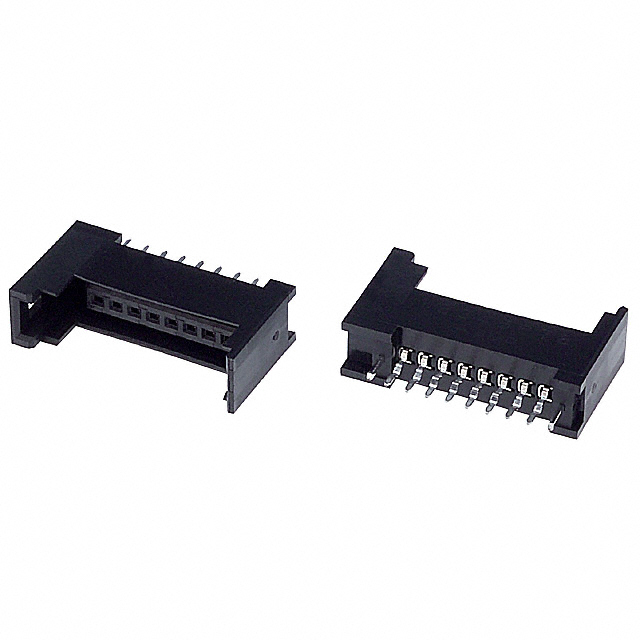

1473565-8
ActiveTE Connectivity Raychem Cable Protection
RITS CONN.HDR ASSY 8P
Deep-Dive with AI
Search across all available documentation for this part.
1473565-8
ActiveTE Connectivity Raychem Cable Protection
RITS CONN.HDR ASSY 8P
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1473565-8 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 0.203 Ám |
| Contact Finish Thickness - Mating | 8 Áin |
| Contact Finish Thickness - Post | 2 çm |
| Contact Finish Thickness - Post | 78.7 çin |
| Contact Length - Post | 0.13 in |
| Contact Length - Post | 3.3 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Latch Holder |
| Features | Board Guide |
| Insulation Color | Black |
| Insulation Height | 13 mm |
| Insulation Height | 0.512 in |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -30 ░C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Style | Board to Cable/Wire |
| Termination | Solder, Press-Fit |
| Voltage Rating | 32 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
RITS Header Connectors PCB Mount Series
PCB Mount Header, Vertical, Wire-to-Board, 8 Position, 2 mm [.078 in] Centerline, Partially Shrouded, Gold (Au), RITS Header Connectors PCB Mount
