1-1565994-4
ActiveTE Connectivity Raychem Cable Protection

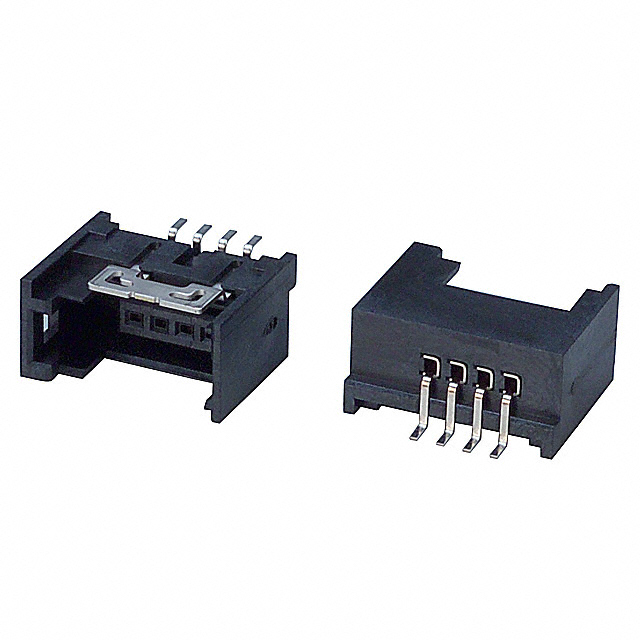

RITS HDR ASSY R/A SMT TYPE 4P
Deep-Dive with AI
Search across all available documentation for this part.
1-1565994-4
ActiveTE Connectivity Raychem Cable Protection
RITS HDR ASSY R/A SMT TYPE 4P
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1565994-4 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 0.203 Ám |
| Contact Finish Thickness - Mating | 8 Áin |
| Contact Finish Thickness - Post | 1 çm |
| Contact Finish Thickness - Post | 39.4 çin |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Latch Holder |
| Insulation Color | Black |
| Insulation Height | 0.303 in |
| Insulation Height | 7.7 mm |
| Insulation Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -30 ░C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 32 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.32 | |
| 10 | $ 2.06 | |||
| 100 | $ 1.86 | |||
| Digi-Reel® | 1 | $ 2.32 | ||
| 10 | $ 2.06 | |||
| 100 | $ 1.86 | |||
| Tape & Reel (TR) | 200 | $ 1.86 | ||
Description
General part information
RITS Header Connectors PCB Mount Series
PCB Mount Header, Right Angle, Wire-to-Board, 4 Position, 2 mm [.078 in] Centerline, Partially Shrouded, Gold (Au), RITS Header Connectors PCB Mount
