1473565-6

Active

TE Connectivity Raychem Cable Protection

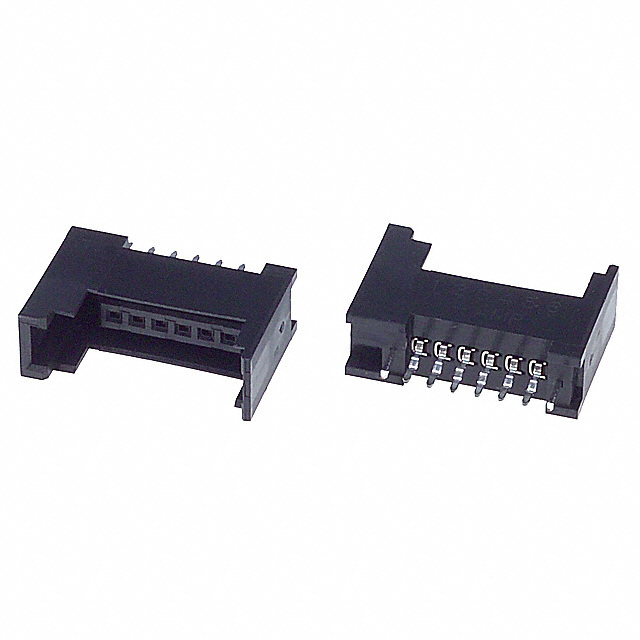

CONN HDR 6POS 0.079 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

1473565-6

Active

TE Connectivity Raychem Cable Protection

CONN HDR 6POS 0.079 GOLD PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1473565-6

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Black
Insulation Height	13 mm
Insulation Height	0.512 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-30 ░C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Style	Board to Cable/Wire
Termination	Solder, Press-Fit
Voltage Rating	32 V

RITS Header Connectors PCB Mount Series

Part	Insulation Color	Insulation Height	Insulation Height	Number of Rows	Mounting Type	Contact Material	Contact Type	Contact Shape	Contact Finish - Post	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Voltage Rating	Style	Features	Termination	Fastening Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Number of Positions	Insulation Material
TE Connectivity Raychem Cable Protection 1473565-8	Black	13 mm	0.512 in	1	Through Hole	Copper Alloy	Female Socket	Square	Tin	All	2 çm	78.7 çin	32 V	Board to Cable/Wire	Board Guide	Press-Fit Solder	Latch Holder	0.079 in	2 mm	Gold	0.203 Ám	8 Áin	Header	-30 ░C	75 ░C	UL94 V-0	0.13 in	3.3 mm	8
TE Connectivity Raychem Cable Protection 1-1565994-4	Black	7.7 mm	0.303 in	1	Surface Mount Right Angle	Copper Alloy	Female Socket	Square	Tin	All	1 çm	39.4 çin	32 V	Board to Cable/Wire		Solder	Latch Holder	0.079 in	2 mm	Gold	0.203 Ám	8 Áin	Header	-30 ░C	75 ░C	UL94 V-0			4	Thermoplastic
TE Connectivity Raychem Cable Protection 1-1565994-3	Black	7.7 mm	0.303 in	1	Surface Mount Right Angle	Copper Alloy	Female Socket	Square	Tin	All	1 çm	39.4 çin	32 V	Board to Cable/Wire		Solder	Latch Holder	0.079 in	2 mm	Gold	0.203 Ám	8 Áin	Header	-30 ░C	75 ░C	UL94 V-0				Thermoplastic
TE Connectivity Raychem Cable Protection 1473565-6	Black	13 mm	0.512 in	1	Through Hole	Copper Alloy	Female Socket	Square	Tin	All	2 çm	78.7 çin	32 V	Board to Cable/Wire	Board Guide	Press-Fit Solder	Latch Holder	0.079 in	2 mm	Gold	0.203 Ám	8 Áin	Header	-30 ░C	75 ░C	UL94 V-0	0.13 in	3.3 mm	6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.14
		10	$ 3.43
		100	$ 2.85
		500	$ 2.53

Description

General part information

RITS Header Connectors PCB Mount Series

6 Position Header Connector 0.079" (2.00mm) Through Hole Gold

Documents

Technical documentation and resources

No documents available
