627-W09-222-012

Active

EDAC Inc.

9P 2 D-SUB / VGA CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Solutions Brochure

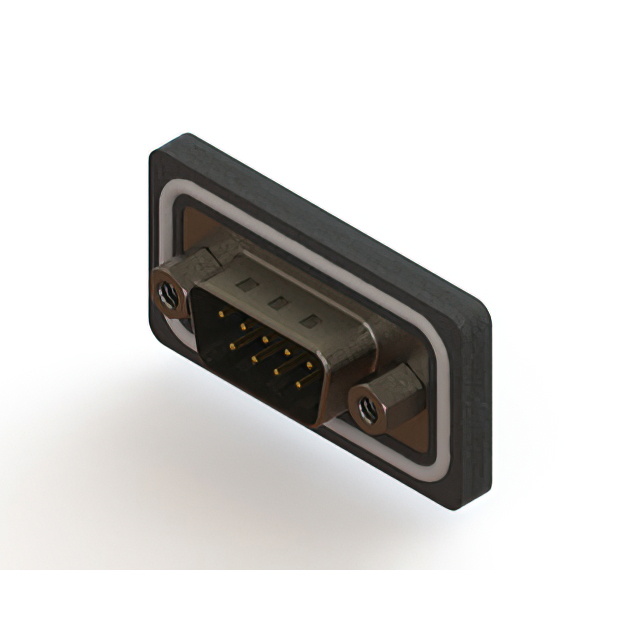

627-W09-222-012

Active

EDAC Inc.

9P 2 D-SUB / VGA CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet Interconnect Solutions Brochure

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	627-W09-222-012

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	Board Side, 4-40
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1

627-W09 Series

Part	Contact Finish	Material Flammability Rating	Shell Material, Finish	Contact Type	Connector Style	Contact Finish Thickness	Number of Positions	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Dielectric Material	Mounting Type	Number of Rows	Color	Current Rating (Amps)	Connector Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Contact Material	Ingress Protection	Termination	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 627-W09-222-012	Gold	UL94 V-0	Nickel Plated Steel	Signal	D-Sub	Flash	9	DE E	1	Polybutylene Terephthalate (PBT) Glass Filled	Free Hanging (In-Line)	2	Black	5 A	Male Pins Plug	Grounding Indents	-25 °C	85 °C	4-40 Board Side	Copper Alloy	IP67 - Dust Tight Waterproof
EDAC Inc. 627-W09-220-012	Gold	UL94 V-0	Nickel Plated Steel	Signal	D-Sub	Flash	9	DE E	1	Polybutylene Terephthalate (PBT) Glass Filled	Panel Mount Through Hole	2	Black	5 A	Male Pins Plug	Grounding Indents	-25 °C	85 °C	4-40 Board Side	Copper Alloy	IP67 - Dust Tight Waterproof	Solder
EDAC Inc. 627-W09-620-012	Gold	UL94 V-0	Nickel Plated Steel	Signal	D-Sub		9	DE E	1	Polybutylene Terephthalate (PBT) Glass Filled	Panel Mount Through Hole	2	Black	5 A	Male Pins Plug	Grounding Indents	-25 °C	85 °C	4-40 Board Side	Copper Alloy	IP67 - Dust Tight Waterproof	Solder	0.76 Ám	30 Áin
EDAC Inc. 627-W09-622-012	Gold	UL94 V-0	Nickel Plated Steel	Signal	D-Sub		9	DE E	1	Polybutylene Terephthalate (PBT) Glass Filled	Free Hanging (In-Line)	2	Black	5 A	Male Pins Plug	Grounding Indents	-25 °C	85 °C	4-40 Board Side	Copper Alloy	IP67 - Dust Tight Waterproof		0.76 Ám	30 Áin
EDAC Inc. 627-W09-621-012	Gold	UL94 V-0	Nickel Plated Steel	Signal	D-Sub		9	DE E	1	Polybutylene Terephthalate (PBT) Glass Filled	Panel Mount Through Hole	2	Black	5 A	Male Pins Plug	Grounding Indents	-25 °C	85 °C	4-40 Board Side	Copper Alloy	IP67 - Dust Tight Waterproof	Solder	0.76 Ám	30 Áin
EDAC Inc. 627-W09-620-013	Gold	UL94 V-0	Nickel Plated Steel	Signal	D-Sub		9	DE E	1	Polybutylene Terephthalate (PBT) Glass Filled	Panel Mount Through Hole	2	Black	5 A	Male Pins Plug	Board Lock Grounding Indents	-25 °C	85 °C	4-40 Board Side	Copper Alloy	IP67 - Dust Tight Waterproof	Solder	0.76 Ám	30 Áin
EDAC Inc. 627-W09-320-012	Gold	UL94 V-0	Nickel Plated Steel	Signal	D-Sub		9	DE E	1	Polybutylene Terephthalate (PBT) Glass Filled	Panel Mount Through Hole	2	Black	5 A	Male Pins Plug	Grounding Indents	-25 °C	85 °C	4-40 Board Side	Copper Alloy	IP67 - Dust Tight Waterproof	Solder	0.38 µm	15 µin
EDAC Inc. 627-W09-320-013	Gold	UL94 V-0	Nickel Plated Steel	Signal	D-Sub		9	DE E	1	Polybutylene Terephthalate (PBT) Glass Filled	Panel Mount Through Hole	2	Black	5 A	Male Pins Plug	Board Lock Grounding Indents	-25 °C	85 °C	4-40 Board Side	Copper Alloy	IP67 - Dust Tight Waterproof	Solder	0.38 µm	15 µin
