627-W09-220-012
ActiveEDAC Inc.

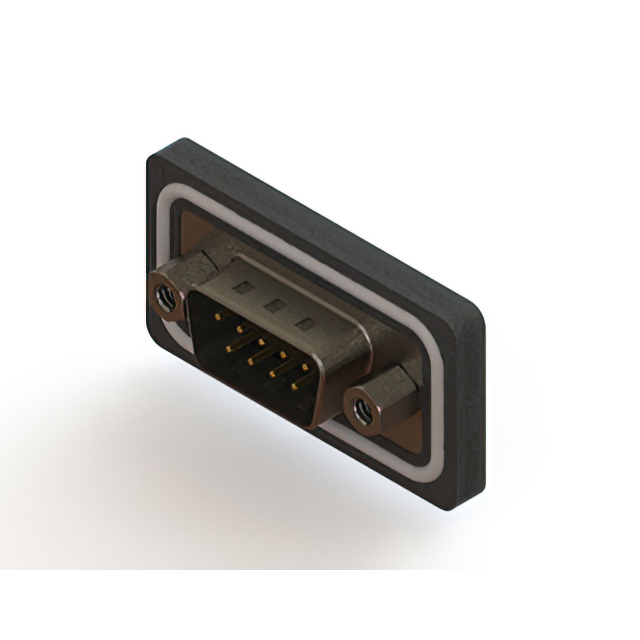

CONN D-SUB PLUG 9P PNL MNT SLDR
Deep-Dive with AI
Search across all available documentation for this part.
627-W09-220-012
ActiveEDAC Inc.
CONN D-SUB PLUG 9P PNL MNT SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 627-W09-220-012 |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Grounding Indents |
| Flange Feature | Board Side, 4-40 |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Termination | Solder |
627-W09 Series
| Part | Contact Finish | Material Flammability Rating | Shell Material, Finish | Contact Type | Connector Style | Contact Finish Thickness | Number of Positions | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Dielectric Material | Mounting Type | Number of Rows | Color | Current Rating (Amps) | Connector Type | Features | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Contact Material | Ingress Protection | Termination | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | UL94 V-0 | Nickel Plated Steel | Signal | D-Sub | Flash | 9 | DE E | 1 | Polybutylene Terephthalate (PBT) Glass Filled | Free Hanging (In-Line) | 2 | Black | 5 A | Male Pins Plug | Grounding Indents | -25 °C | 85 °C | 4-40 Board Side | Copper Alloy | IP67 - Dust Tight Waterproof | |||
EDAC Inc. | Gold | UL94 V-0 | Nickel Plated Steel | Signal | D-Sub | Flash | 9 | DE E | 1 | Polybutylene Terephthalate (PBT) Glass Filled | Panel Mount Through Hole | 2 | Black | 5 A | Male Pins Plug | Grounding Indents | -25 °C | 85 °C | 4-40 Board Side | Copper Alloy | IP67 - Dust Tight Waterproof | Solder | ||
EDAC Inc. | Gold | UL94 V-0 | Nickel Plated Steel | Signal | D-Sub | 9 | DE E | 1 | Polybutylene Terephthalate (PBT) Glass Filled | Panel Mount Through Hole | 2 | Black | 5 A | Male Pins Plug | Grounding Indents | -25 °C | 85 °C | 4-40 Board Side | Copper Alloy | IP67 - Dust Tight Waterproof | Solder | 0.76 Ám | 30 Áin | |
EDAC Inc. | Gold | UL94 V-0 | Nickel Plated Steel | Signal | D-Sub | 9 | DE E | 1 | Polybutylene Terephthalate (PBT) Glass Filled | Free Hanging (In-Line) | 2 | Black | 5 A | Male Pins Plug | Grounding Indents | -25 °C | 85 °C | 4-40 Board Side | Copper Alloy | IP67 - Dust Tight Waterproof | 0.76 Ám | 30 Áin | ||
EDAC Inc. | Gold | UL94 V-0 | Nickel Plated Steel | Signal | D-Sub | 9 | DE E | 1 | Polybutylene Terephthalate (PBT) Glass Filled | Panel Mount Through Hole | 2 | Black | 5 A | Male Pins Plug | Grounding Indents | -25 °C | 85 °C | 4-40 Board Side | Copper Alloy | IP67 - Dust Tight Waterproof | Solder | 0.76 Ám | 30 Áin | |
EDAC Inc. | Gold | UL94 V-0 | Nickel Plated Steel | Signal | D-Sub | 9 | DE E | 1 | Polybutylene Terephthalate (PBT) Glass Filled | Panel Mount Through Hole | 2 | Black | 5 A | Male Pins Plug | Board Lock Grounding Indents | -25 °C | 85 °C | 4-40 Board Side | Copper Alloy | IP67 - Dust Tight Waterproof | Solder | 0.76 Ám | 30 Áin | |
EDAC Inc. | Gold | UL94 V-0 | Nickel Plated Steel | Signal | D-Sub | 9 | DE E | 1 | Polybutylene Terephthalate (PBT) Glass Filled | Panel Mount Through Hole | 2 | Black | 5 A | Male Pins Plug | Grounding Indents | -25 °C | 85 °C | 4-40 Board Side | Copper Alloy | IP67 - Dust Tight Waterproof | Solder | 0.38 µm | 15 µin | |
EDAC Inc. | Gold | UL94 V-0 | Nickel Plated Steel | Signal | D-Sub | 9 | DE E | 1 | Polybutylene Terephthalate (PBT) Glass Filled | Panel Mount Through Hole | 2 | Black | 5 A | Male Pins Plug | Board Lock Grounding Indents | -25 °C | 85 °C | 4-40 Board Side | Copper Alloy | IP67 - Dust Tight Waterproof | Solder | 0.38 µm | 15 µin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.95 | |
| 10 | $ 7.93 | |||
| 48 | $ 7.32 | |||
| 96 | $ 7.16 | |||
Description
General part information
627-W09 Series
9 Position D-Sub Plug, Male Pins Connector
