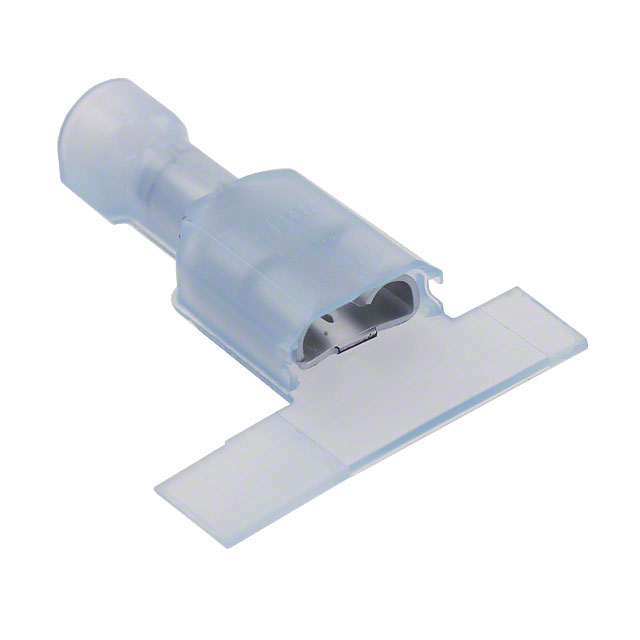

3-520116-2
ActiveTE Connectivity Raychem Cable Protection
QUICK DISCONNECT TERMINAL 14-16AWG BRASS BLUE TRANSLUCENT F 21.71MM TIN T/R
Deep-Dive with AI
Search across all available documentation for this part.
3-520116-2
ActiveTE Connectivity Raychem Cable Protection
QUICK DISCONNECT TERMINAL 14-16AWG BRASS BLUE TRANSLUCENT F 21.71MM TIN T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-520116-2 |
|---|---|
| Color | Blue |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Gender | Female |
| Insulation | Fully Insulated |
| Insulation Diameter [diameter] | 0.16 in |
| Insulation Diameter [diameter] | 4.06 mm |
| Length - Overall | 0.855 in |
| Length - Overall | 21.72 mm |
| Mounting Type | Free Hanging (In-Line) |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 6.35 mm |
| Tab Width | 0.25 in |
| Terminal Type | Standard |
| Termination | Crimp |
Ultra-Fast 250 Series
| Part | Insulation | Gender | Mounting Type | Tab Thickness | Tab Thickness | Terminal Type | Color | Insulation Diameter [diameter] | Insulation Diameter [diameter] | Contact Finish | Wire Gauge [Max] | Wire Gauge [Min] | Contact Material | Termination | Tab Width | Tab Width | Length - Overall [x] | Length - Overall [x] | Length - Overall | Length - Overall | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Fully Insulated | Female | Free Hanging (In-Line) Right Angle | 0.032 in | 0.81 mm | Angled - 90° Flag | Red | 4.19 mm | 0.165 " | Tin | 22 AWG | 17.5 AWG | Brass | Crimp | 6.35 mm | 0.25 in | ||||||||
TE Connectivity Raychem Cable Protection | Fully Insulated | Male | Free Hanging (In-Line) | 0.032 in | 0.81 mm | Standard | Yellow | 8.13 mm | 0.32 in | Tin | 12 AWG | 10 AWG | Brass | Crimp | 6.35 mm | 0.25 in | 23.75 mm | 0.935 in | ||||||
TE Connectivity Raychem Cable Protection | Fully Insulated | Female | Free Hanging (In-Line) | 0.032 in | 0.81 mm | Standard | Blue | 4.06 mm | 0.16 in | Tin | Brass | Crimp | 6.35 mm | 0.25 in | 0.855 in | 21.72 mm | ||||||||
TE Connectivity Raychem Cable Protection | Fully Insulated | Female | Free Hanging (In-Line) Right Angle | 0.032 in | 0.81 mm | Angled - 90° Flag | Red | 5.84 mm | 0.23 in | Tin | 22 AWG | 17.5 AWG | Brass | Crimp | 6.35 mm | 0.25 in | ||||||||
TE Connectivity Raychem Cable Protection | Fully Insulated | Female | Free Hanging (In-Line) | 0.032 in | 0.81 mm | Standard | Red | 3.43 mm | 0.135 in | Tin | 22 AWG | 17.5 AWG | Brass | Crimp | 6.35 mm | 0.25 in | 0.855 in | 21.72 mm | ||||||
TE Connectivity Raychem Cable Protection | Fully Insulated | Female | Free Hanging (In-Line) | 0.032 in | 0.81 mm | Standard | Red | 3.43 mm | 0.135 in | Tin | 22 AWG | 17.5 AWG | Brass | Crimp | 6.35 mm | 0.25 in | 0.855 in | 21.72 mm | ||||||
TE Connectivity Raychem Cable Protection | Fully Insulated | Female | Free Hanging (In-Line) | 0.032 in | 0.81 mm | Standard | Blue | Tin | Brass | Crimp | 6.35 mm | 0.25 in | 0.855 in | 21.72 mm | 2.29 mm | 0.16 in | 0.09 in | 4.06 mm | ||||||
TE Connectivity Raychem Cable Protection | Fully Insulated | Female | Free Hanging (In-Line) | 0.032 in | 0.81 mm | Standard | Blue | 4.06 mm | 0.16 in | Tin | Phosphor Bronze | Crimp | 6.35 mm | 0.25 in | 0.855 in | 21.72 mm | ||||||||
TE Connectivity Raychem Cable Protection | Fully Insulated | Female | Free Hanging (In-Line) | 0.032 in | 0.81 mm | Standard | Blue | 4.06 mm | 0.16 in | Tin | Phosphor Bronze | Crimp | 6.35 mm | 0.25 in | 0.855 in | 21.72 mm | ||||||||
TE Connectivity Raychem Cable Protection | Fully Insulated | Female | Free Hanging (In-Line) | 0.032 in | 0.81 mm | Standard | Black | 3.43 mm | 0.135 in | Tin | 22 AWG | 17.5 AWG | Brass | Crimp | 6.35 mm | 0.25 in | 0.855 in | 21.72 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
Ultra-Fast 250 Series
Quick Disconnect Receptacle, 16 – 14 AWG, 1.31 – 2.08 mm² Wire, 6.35 mm [.25 in] Tab Width, Straight, Brass, Tin Plating, Strip/Reel, Ultra-Fast 250
