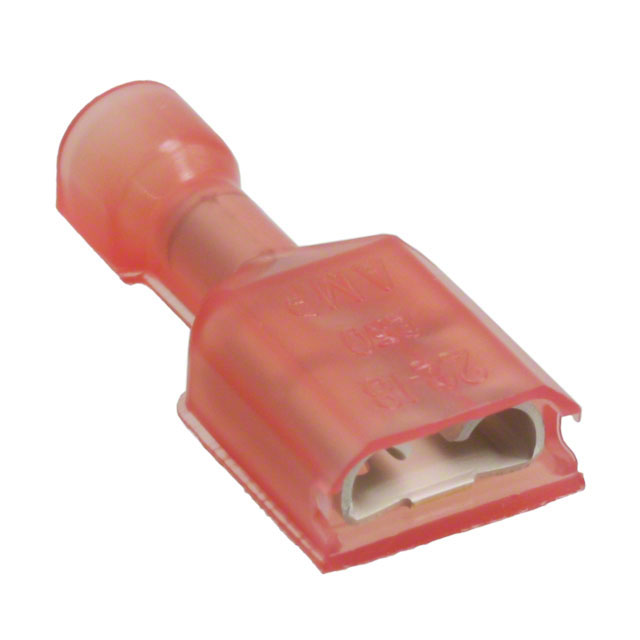

2-520183-2
ActiveTE Connectivity Raychem Cable Protection
ULTRA-FAST 250 ASY REC 22-18 TPBR
Deep-Dive with AI
Search across all available documentation for this part.
2-520183-2
ActiveTE Connectivity Raychem Cable Protection
ULTRA-FAST 250 ASY REC 22-18 TPBR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-520183-2 |
|---|---|
| Color | Red |
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Fully Insulated |
| Insulation Diameter [diameter] | 0.135 in |
| Insulation Diameter [diameter] | 3.43 mm |
| Length - Overall | 0.855 in |
| Length - Overall | 21.72 mm |
| Mounting Type | Free Hanging (In-Line) |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 6.35 mm |
| Tab Width | 0.25 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.33 | |
| 10 | $ 0.29 | |||
| 25 | $ 0.29 | |||
| 50 | $ 0.28 | |||
| 100 | $ 0.26 | |||
| 250 | $ 0.22 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.19 | |||
| Tape & Reel (TR) | 2200 | $ 0.19 | ||
| 4400 | $ 0.18 | |||
| 6600 | $ 0.17 | |||
| 11000 | $ 0.15 | |||
| 15400 | $ 0.18 | |||
| 22000 | $ 0.17 | |||
| 55000 | $ 0.15 | |||
Description
General part information
Ultra-Fast 250 Series
Quick Disconnect Receptacle, 22 – 18 AWG, .32 – .82 mm² Wire, 6.35 mm [.25 in] Tab Width, Straight, Brass, Tin Plating, Strip/Reel, Ultra-Fast 250
