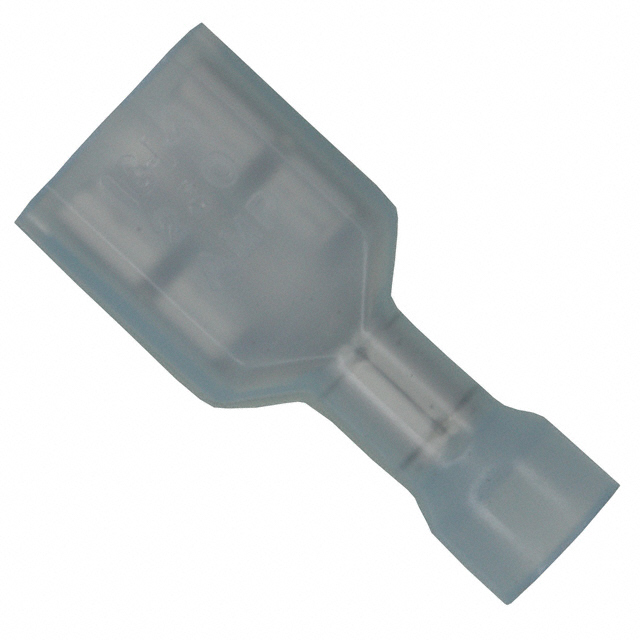

3-350819-2
ActiveTE Connectivity Raychem Cable Protection
ULTRA-FAST 250 ASY REC 16-14 AWG TPBR
Deep-Dive with AI
Search across all available documentation for this part.
3-350819-2
ActiveTE Connectivity Raychem Cable Protection
ULTRA-FAST 250 ASY REC 16-14 AWG TPBR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-350819-2 |
|---|---|
| Color | Blue |
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Fully Insulated |
| Insulation Diameter [diameter] | 0.16 in |
| Insulation Diameter [diameter] | 4.06 mm |
| Length - Overall | 0.855 in |
| Length - Overall | 21.72 mm |
| Mounting Type | Free Hanging (In-Line) |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 6.35 mm |
| Tab Width | 0.25 in |
| Terminal Type | Standard |
| Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.23 | |
| 10 | $ 0.20 | |||
| 25 | $ 0.20 | |||
| 50 | $ 0.20 | |||
| 100 | $ 0.18 | |||
| 250 | $ 0.15 | |||
| 500 | $ 0.15 | |||
| Tape & Reel (TR) | 2200 | $ 0.15 | ||
Description
General part information
Ultra-Fast 250 Series
Quick Disconnect Receptacle, 16 – 14 AWG, 1.31 – 2.08 mm² Wire, 6.35 mm [.25 in] Tab Width, Straight, Brass, Tin Plating, Strip/Reel, Ultra-Fast 250
