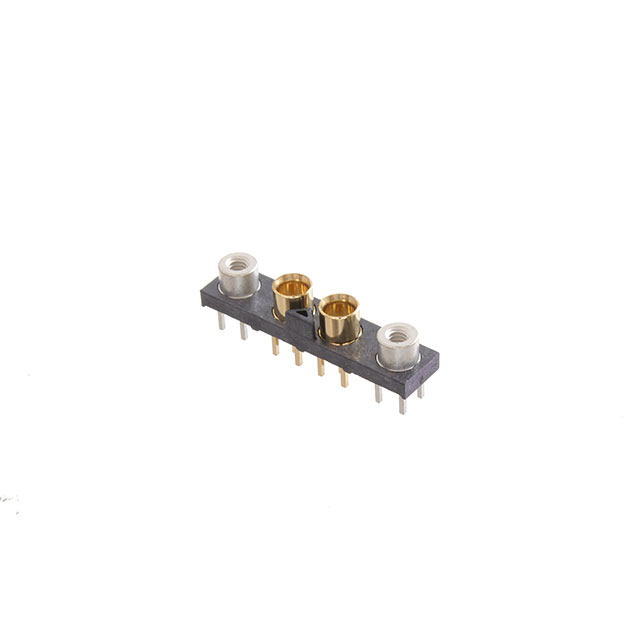

GRF1-J-P-02-E-ST-TH1-E - GRF1-J-P-02-E-ST-TH1-E

GRF1-J-P-02-E-ST-TH1-E

Active
Samtec Inc.

CONN MMCXV JACK STR 50 OHM PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsGRF1 DatasheetGRF1 Series Other Related Documents 01+1
GRF1-J-P-02-E-ST-TH1-E - GRF1-J-P-02-E-ST-TH1-E

GRF1-J-P-02-E-ST-TH1-E

Active
Samtec Inc.

CONN MMCXV JACK STR 50 OHM PCB

Deep-Dive with AI

DocumentsGRF1 DatasheetGRF1 Series Other Related Documents 01+1

Technical Specifications

Parameters and characteristics for this part

SpecificationGRF1-J-P-02-E-ST-TH1-E
Body FinishGold
Body MaterialBrass
Center Contact MaterialBrass
Center Contact PlatingGold
Connector StyleMMCX (V)
Connector TypeFemale Socket, Jack
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeSnap-On
Frequency - Max [Max]6000 MHz
Housing ColorGold
Impedance50 Ohms
Mounting TypeThrough Hole
Number of Ports2
Operating Temperature [Max]90 °C
Operating Temperature [Min]-40 °C
Shield TerminationSolder
Voltage Rating500 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 15.16
10$ 11.65
25$ 10.54
50$ 9.78
100$ 9.10
250$ 8.29
500$ 7.74
1000$ 7.25

Description

General part information

GRF1-J Series

MMCX (V) Connector Jack, Female Socket 50 Ohms Through Hole Solder
