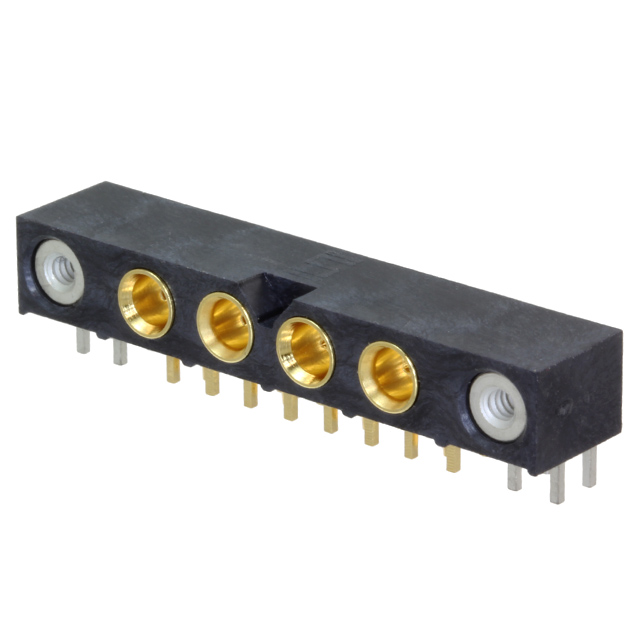

GRF1-J-P-04-E-RA-TH1-E - GRF1-J-P-04-E-RA-TH1-E

GRF1-J-P-04-E-RA-TH1-E

Active
Samtec Inc.

CONN MMCXV JACK R/A 50 OHM PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsGRF1 Series Other Related Documents 01GRF1 Datasheet+1
GRF1-J-P-04-E-RA-TH1-E - GRF1-J-P-04-E-RA-TH1-E

GRF1-J-P-04-E-RA-TH1-E

Active
Samtec Inc.

CONN MMCXV JACK R/A 50 OHM PCB

Deep-Dive with AI

DocumentsGRF1 Series Other Related Documents 01GRF1 Datasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationGRF1-J-P-04-E-RA-TH1-E
Body FinishGold
Body MaterialBrass
Center Contact MaterialBeryllium Copper
Center Contact PlatingGold
Connector StyleMMCX (V)
Connector TypeFemale Socket, Jack
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeSnap-On
Frequency - Max [Max]6000 MHz
Housing ColorGold
Impedance50 Ohms
Mounting TypeThrough Hole, Right Angle
Number of Ports4
Operating Temperature [Max]90 °C
Operating Temperature [Min]-40 °C
Shield TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 35.95
10$ 27.77
25$ 25.18
50$ 23.43
100$ 21.84
250$ 19.97
500$ 18.71

Description

General part information

GRF1-J Series

MMCX (V) Connector Jack, Female Socket 50 Ohms Through Hole, Right Angle Solder
