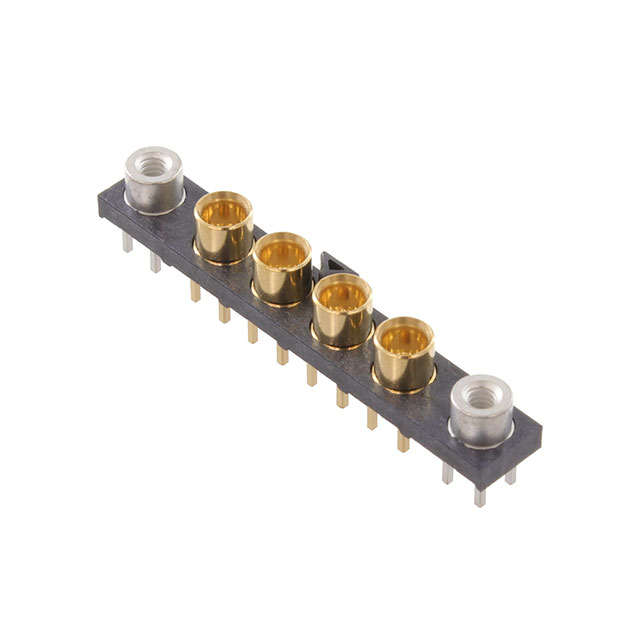

GRF1-J-P-04-E-ST-TH1-E

Active

Samtec Inc.

CONN MMCXV JACK STR 50 OHM PCB

Search across all available documentation for this part.

Active

Samtec Inc.

CONN MMCXV JACK STR 50 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	GRF1-J-P-04-E-ST-TH1-E

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MMCX (V)
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Through Hole
Number of Ports	4
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Frequency - Max [Max]	Number of Ports	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Body Finish	Contact Termination	Body Material	Connector Style	Housing Color	Impedance	Mounting Type	Dielectric Material	Fastening Type	Shield Termination	Center Contact Material	Connector Type	Voltage Rating
Samtec Inc. GRF1-J-P-06-E-RA-TH1	6000 MHz	6	Gold	90 °C	-40 °C	Gold	Solder	Brass	MMCX (V)	Gold	50 Ohms	Through Hole Right Angle	Polytetrafluoroethylene (PTFE)	Snap-On	Solder	Beryllium Copper	Female Socket Jack
Samtec Inc. GRF1-J-P-08-E-RA-TH1-E	6000 MHz	8	Gold	90 °C	-40 °C	Gold	Solder	Brass	MMCX (V)	Gold	50 Ohms	Through Hole Right Angle	Polytetrafluoroethylene (PTFE)	Snap-On	Solder	Beryllium Copper	Female Socket Jack
Samtec Inc. GRF1-J-P-04-E-RA-TH1-E	6000 MHz	4	Gold	90 °C	-40 °C	Gold	Solder	Brass	MMCX (V)	Gold	50 Ohms	Through Hole Right Angle	Polytetrafluoroethylene (PTFE)	Snap-On	Solder	Beryllium Copper	Female Socket Jack
Samtec Inc. GRF1-J-P-02-E-ST-TH1-E	6000 MHz	2	Gold	90 °C	-40 °C	Gold	Solder	Brass	MMCX (V)	Gold	50 Ohms	Through Hole	Polytetrafluoroethylene (PTFE)	Snap-On	Solder	Brass	Female Socket Jack	500 V
Samtec Inc. GRF1-J-P-04-E-ST-TH1-E	6000 MHz	4	Gold	90 °C	-40 °C	Gold	Solder	Brass	MMCX (V)	Gold	50 Ohms	Through Hole	Polytetrafluoroethylene (PTFE)	Snap-On	Solder	Brass	Female Socket Jack	500 V
Samtec Inc. GRF1-J-P-08-E-ST-TH1-E	6000 MHz	8	Gold	90 °C	-40 °C	Gold	Solder	Brass	MMCX (V)	Gold	50 Ohms	Through Hole	Polytetrafluoroethylene (PTFE)	Snap-On	Solder	Brass	Female Socket Jack	500 V
