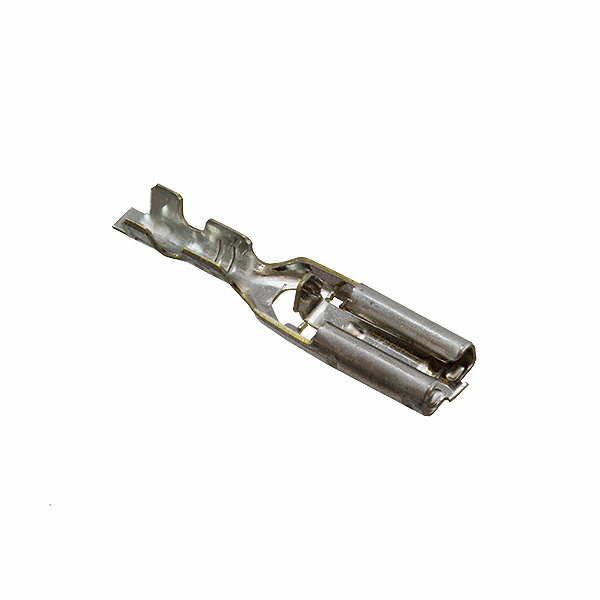

175411-1 - 175411-1

175411-1

Active
TE Connectivity Raychem Cable Protection

QUICK DISCONNECT TERMINAL 20-24AWG BRASS F 17.7MM PRE-TIN REEL/STRIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetENG_CD_175411_F6.pdf+3
175411-1 - 175411-1

175411-1

Active
TE Connectivity Raychem Cable Protection

QUICK DISCONNECT TERMINAL 20-24AWG BRASS F 17.7MM PRE-TIN REEL/STRIP

Deep-Dive with AI

DocumentsDatasheetENG_CD_175411_F6.pdf+3

Technical Specifications

Parameters and characteristics for this part

Specification175411-1
Contact FinishTin
Contact MaterialBrass
GenderFemale
InsulationNon-Insulated
Insulation Diameter [Max] [diameter]1.78 mm
Insulation Diameter [Max] [diameter]0.07 "
Insulation Diameter [Min] [diameter]0.04 in
Insulation Diameter [Min] [diameter]1.02 mm
Length - Overall [x]0.677 in
Length - Overall [x]17.2 mm
Mounting TypeFree Hanging (In-Line)
Tab Length0.236 in
Tab Length6 mm
Tab Thickness0.02 "
Tab Thickness0.51 mm
Tab Width2.79 mm
Tab Width0.11 "
Terminal TypeStandard
TerminationCrimp
Wire Gauge [Max]24 AWG
Wire Gauge [Min]20 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
ArrowN/A 50$ 0.08
100$ 0.08
200$ 0.07
500$ 0.07
1000$ 0.07
DigikeyCut Tape (CT) 1$ 0.13
10$ 0.11
25$ 0.10
50$ 0.10
100$ 0.09
250$ 0.09
500$ 0.08
1000$ 0.08
2500$ 0.07
Tape & Reel (TR) 8000$ 0.06
16000$ 0.05
24000$ 0.05
40000$ 0.05
56000$ 0.05
80000$ 0.05
200000$ 0.04

Description

General part information

Positive Lock 110 Series

Quick Disconnect Receptacle, 24 – 20 AWG, .2 – .51 mm² Wire, 2.8 mm [.11 in] Tab Width, Straight, Brass, Pre-Tin Plating, Positive Lock 110
