174777-1
ActiveTE Connectivity Raychem Cable Protection
PL 110 REC 20-16 AWG 0.25 X 10.4 PTBR
Deep-Dive with AI
Search across all available documentation for this part.
174777-1
ActiveTE Connectivity Raychem Cable Protection
PL 110 REC 20-16 AWG 0.25 X 10.4 PTBR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 174777-1 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Non-Insulated |
| Insulation Diameter | 2.03 mm, 3.1 mm |
| Insulation Diameter [Max] | 0.122 " |
| Insulation Diameter [Min] | 0.08 in |
| Length - Overall [x] | 0.677 in |
| Length - Overall [x] | 17.2 mm |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 0.236 in |
| Tab Length | 6 mm |
| Tab Thickness | 0.02 " |
| Tab Thickness | 0.51 mm |
| Tab Width | 2.79 mm |
| Tab Width | 0.11 " |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge [Max] | 20 AWG |
| Wire Gauge [Min] | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.17 | |
| 10 | $ 0.14 | |||
| 25 | $ 0.13 | |||
| 50 | $ 0.12 | |||
| 100 | $ 0.12 | |||
| 250 | $ 0.11 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.10 | |||
| 2500 | $ 0.09 | |||
| Tape & Reel (TR) | 8000 | $ 0.06 | ||
| 16000 | $ 0.06 | |||
| 24000 | $ 0.06 | |||
| 40000 | $ 0.06 | |||
Description
General part information
Positive Lock 110 Series

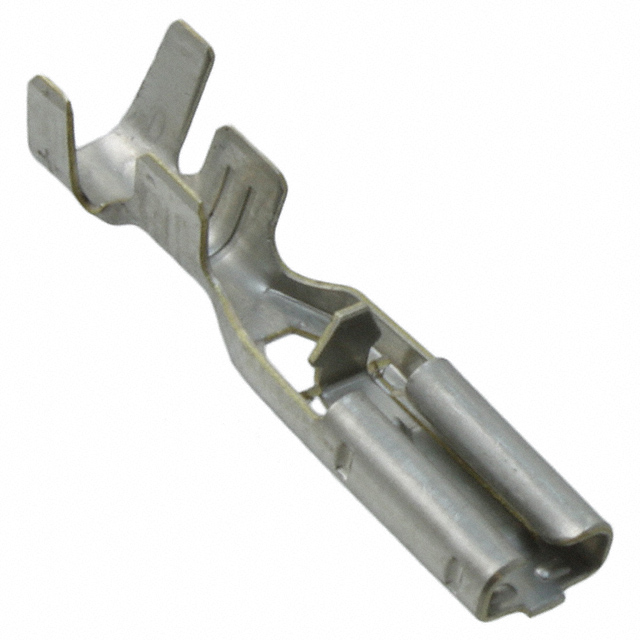

Quick Disconnect Receptacle, 20 – 16 AWG, .51 – 1.31 mm² Wire, 2.8 mm [.11 in] Tab Width, Straight, Brass, Pre-Tin Plating, Positive Lock 110
