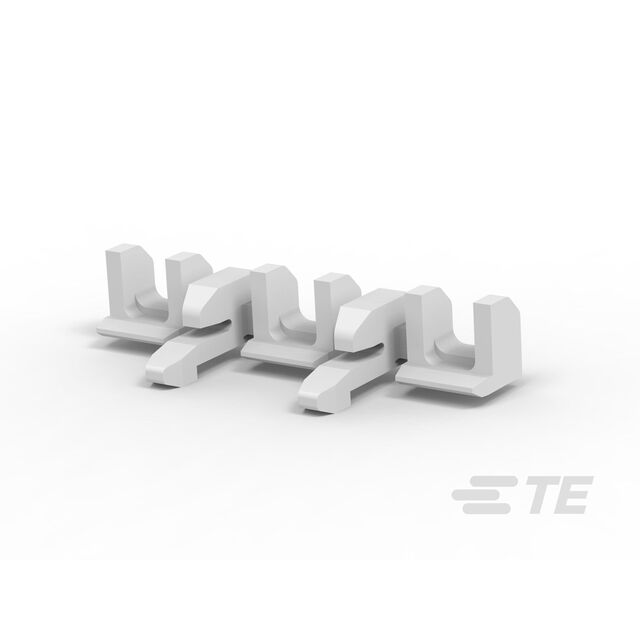

353256-1

Active

TE Connectivity Raychem Cable Protection

110 HSG. PL EX REC. 7.6MM 3P NAT

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

110 HSG. PL EX REC. 7.6MM 3P NAT

Technical Specifications

Parameters and characteristics for this part

Specification	353256-1

Accessory Type	Lock Plate
For Use With/Related Products	Quick Connects
For Use With/Related Products	0.11 in
For Use With/Related Products	2.79 mm

Part	Gender	Terminal Type	Length - Overall [x]	Length - Overall [x]	Wire Gauge [Min]	Wire Gauge [Max]	Mounting Type	Tab Length	Tab Length	Contact Finish	Tab Width	Tab Width	Tab Thickness	Tab Thickness	Insulation Diameter	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation	Contact Material	Termination	For Use With/Related Products	For Use With/Related Products	For Use With/Related Products	Accessory Type	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]
TE Connectivity Raychem Cable Protection 174778-2	Female	Standard	0.677 in	17.2 mm	16 AWG	20 AWG	Free Hanging (In-Line)	0.236 in	6 mm	Tin	2.79 mm	0.11 "	0.02 "	0.51 mm	2.03 mm 3.1 mm	0.122 "	0.08 in	Non-Insulated	Phosphor Bronze	Crimp
TE Connectivity Raychem Cable Protection 353256-1																					Quick Connects	0.11 in	2.79 mm	Lock Plate
TE Connectivity Raychem Cable Protection 174777-1	Female	Standard	0.677 in	17.2 mm	16 AWG	20 AWG	Free Hanging (In-Line)	0.236 in	6 mm	Tin	2.79 mm	0.11 "	0.02 "	0.51 mm	2.03 mm 3.1 mm	0.122 "	0.08 in	Non-Insulated	Brass	Crimp
TE Connectivity Raychem Cable Protection 175411-1	Female	Standard	0.677 in	17.2 mm	20 AWG	24 AWG	Free Hanging (In-Line)	0.236 in	6 mm	Tin	2.79 mm	0.11 "	0.02 "	0.51 mm				Non-Insulated	Brass	Crimp					0.04 in	1.78 mm	0.07 "	1.02 mm
TE Connectivity Raychem Cable Protection 174778-1	Female	Standard	0.677 in	17.2 mm	16 AWG	20 AWG	Free Hanging (In-Line)	0.236 in	6 mm	Tin	2.79 mm	0.11 "	0.02 "	0.51 mm	2.03 mm 3.1 mm	0.122 "	0.08 in	Non-Insulated	Brass	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Positive Lock, Natural, Nylon 6/6, 3 Position, Positive Lock 110
